SBC to LS Engine Conversion / Swap Bracket Engine Mount Billet Adaptors Set

SKU: F3-551628
SBC to LS Engine Conversion / Swap Bracket Engine Mount Billet Adaptors Set
SBC to LS Engine Conversion / Swap Bracket Engine Mount Billet Adaptors Set
SBC to LS Engine Conversion / Swap Bracket Engine Mount Billet Adaptors Set
SBC to LS Engine Conversion / Swap Bracket Engine Mount Billet Adaptors Set
SBC to LS Engine Conversion / Swap Bracket Engine Mount Billet Adaptors Set
SBC to LS Engine Conversion / Swap Bracket Engine Mount Billet Adaptors Set

SBC to LS Engine Conversion / Swap Bracket Engine Mount Billet Adaptors Set

SKU: F3-551628
Regular price $74.95
/
  • Secure payments
  • Low stock - 2 items left
  • Inventory on the way
Tax included.

LS Engine Swap / Engine Mount Brackets

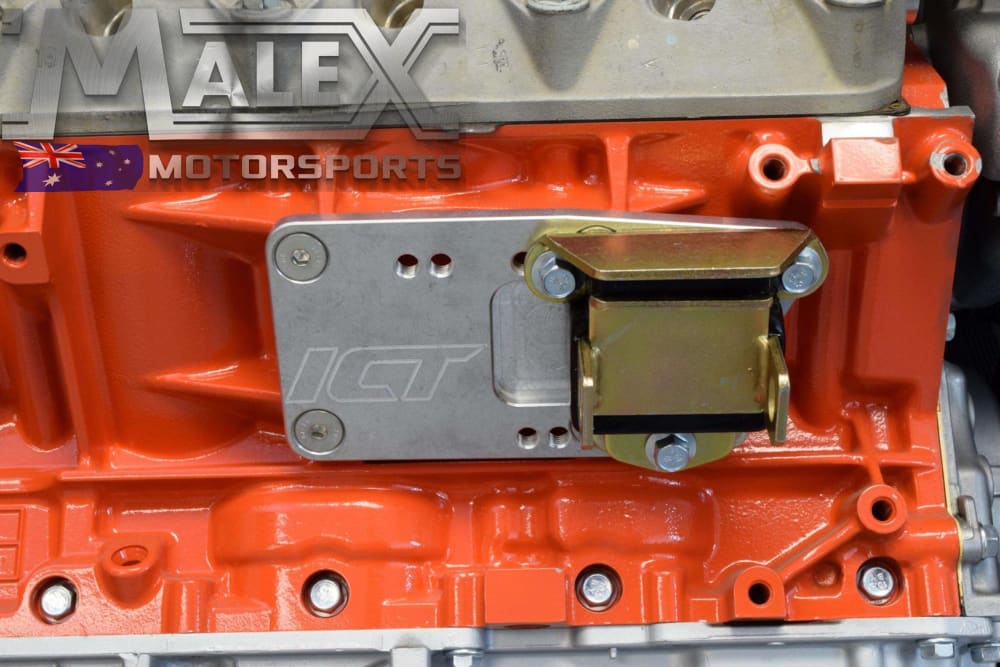

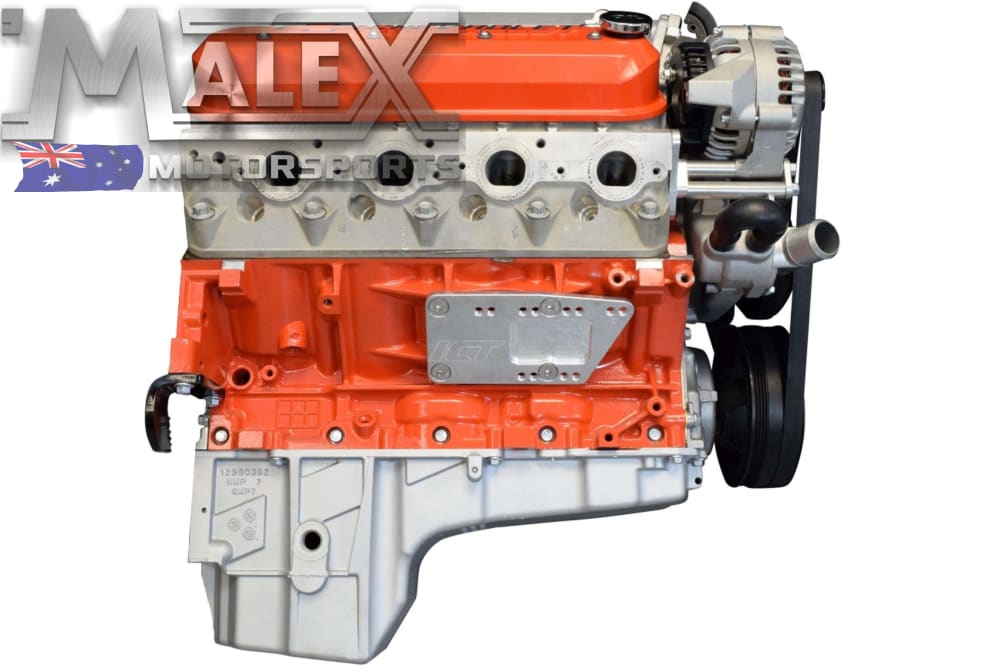

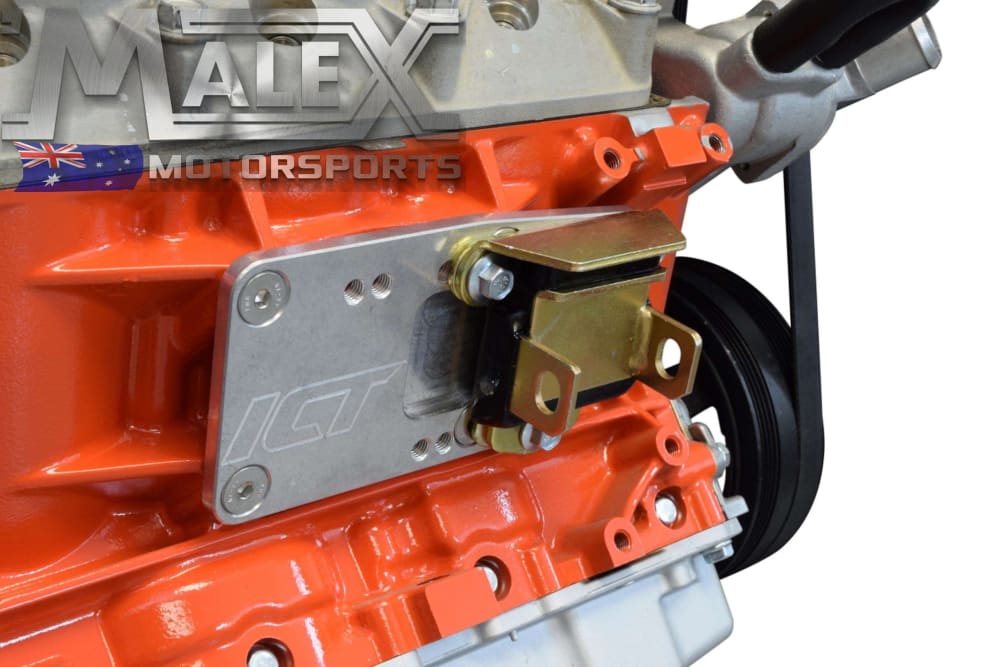

These brackets allow a LS series engine to be bolted into a vehicle that originally had a small block chevy engine with your existing mounts (see photos).
 ** Does Not Include Engine Mounts***

  • Made with OEM specifications for the best possible fitment into your vehicle
  • These plates will move the crankshaft centerline up .17" in the vehicle
  • Made in Wichita, Kansas from aerospace grade, USA produced, 3/8" billet aluminum

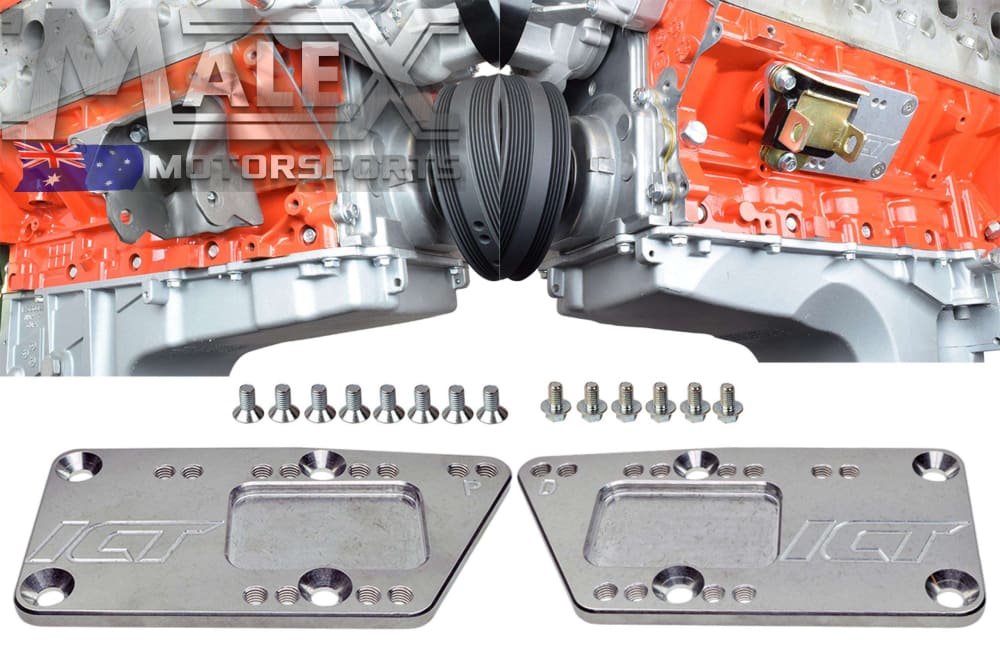

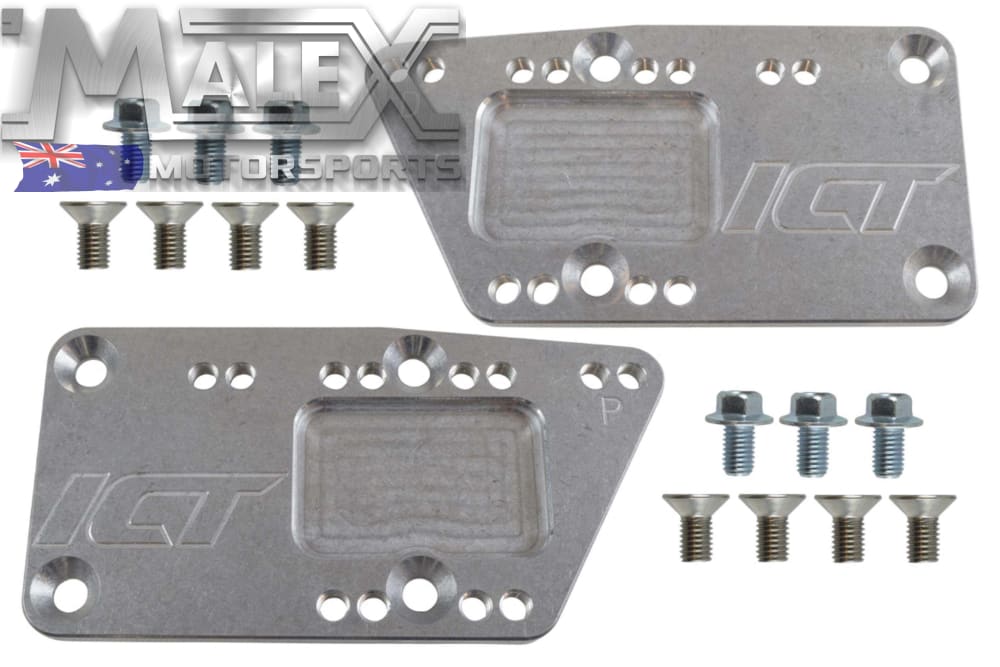

  • Includes: 2 adapter plates, 8 flat head bolts, and 6 flange M10-1.5 bolts (plates are M10 threaded, use the hardware included)
  • Natural aluminum finish

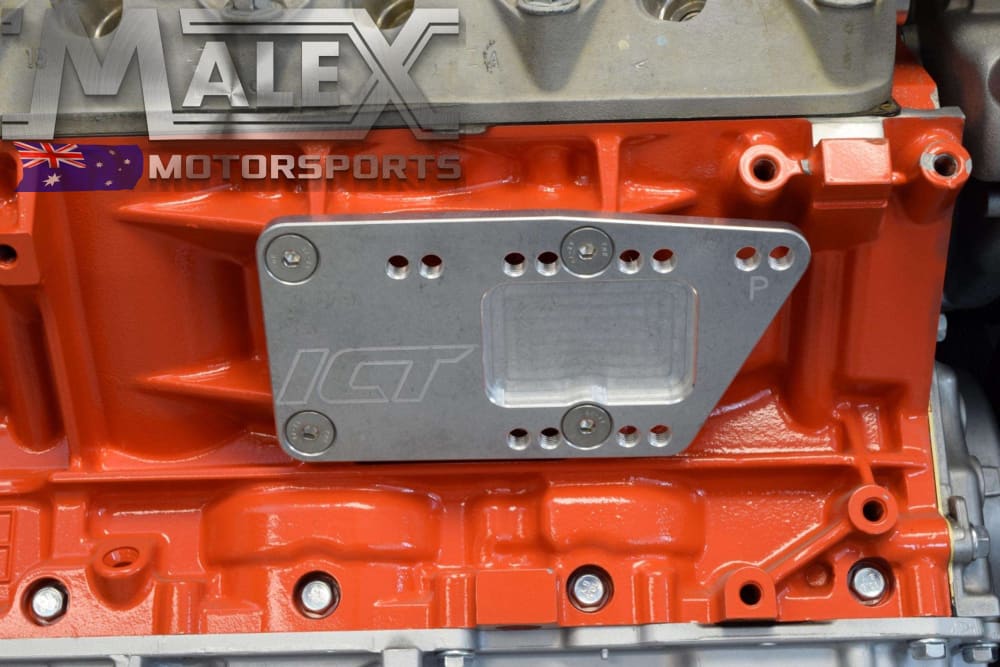

There are 4 positions for maximum adjustment of engine (from .100" forward of OEM bellhousing position [due to bolt interference, OEM location is not possible for any brand of flat style swap plates] ~forward most position shown in photos~,  Secondary positions are: .600",  1.86", and 2.36" engine moved forward)

These swap plates will shift the crankshaft centerline up .177" above factory small block location.

At ICT Billet we use GM factory specifications to determine exact mounting locations for the most accurate engine positioning.
