Engine Pro Racing 6 Bolt Cylinder Heads 61CC 240CC Intake Runner 11 Degree Valve Angle LSX

SKU: EPCH-3520-6
/
  • Secure payments
  • Low stock - 1 item left
  • Inventory on the way
Tax included.
Description

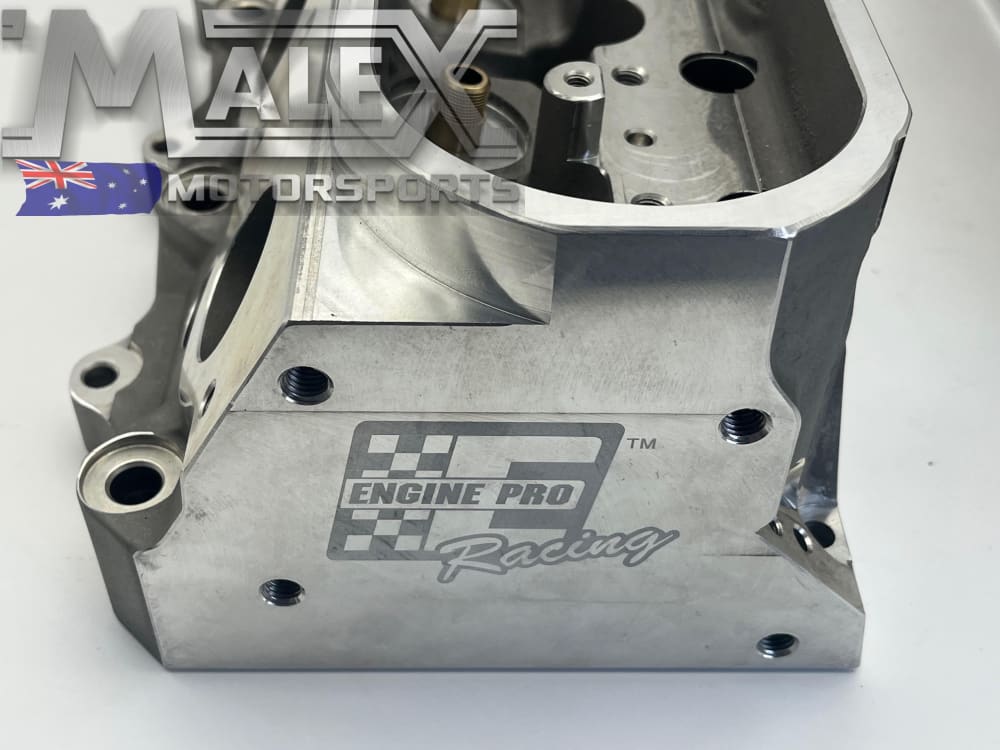

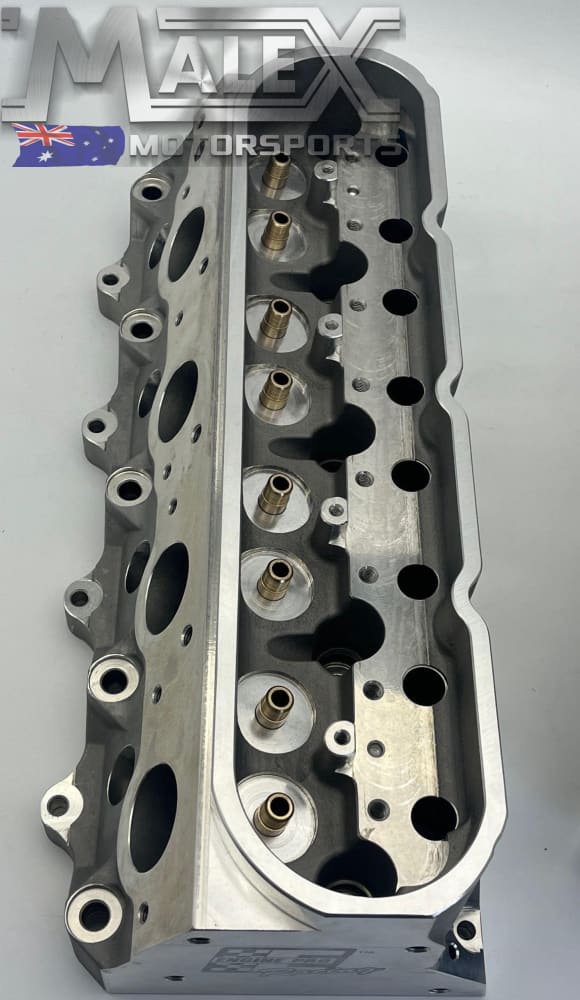

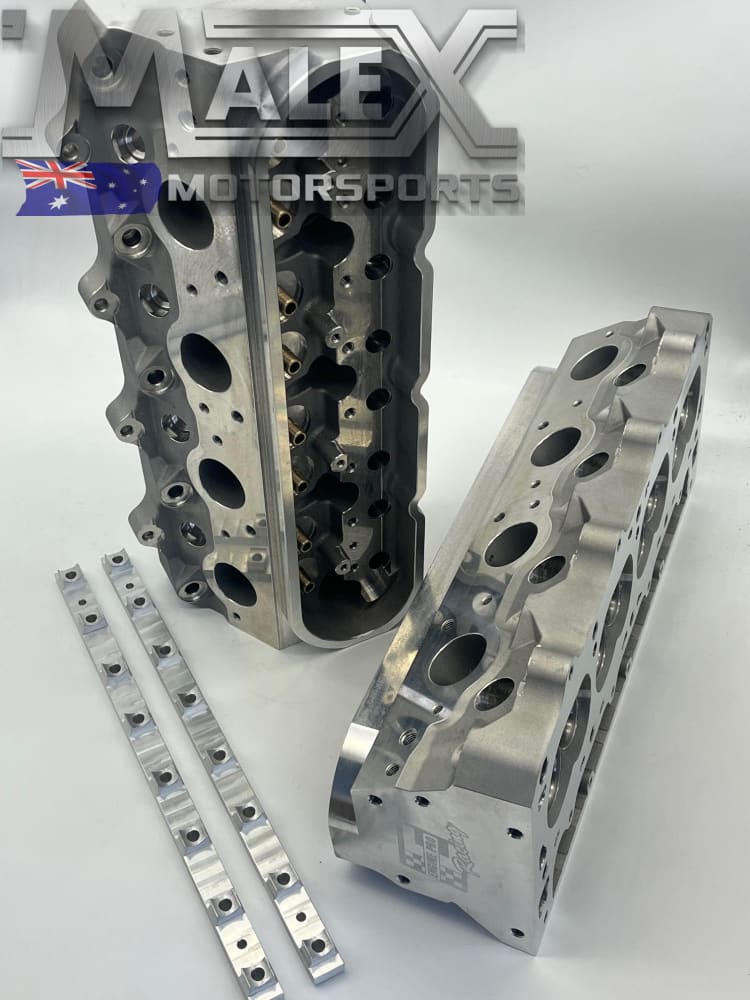

Bare Head Pair - Rectangle Intake Ports 240cc, 11 Degree Valve Angle

LSX 6 Head Bolt Design

Material | Aluminium

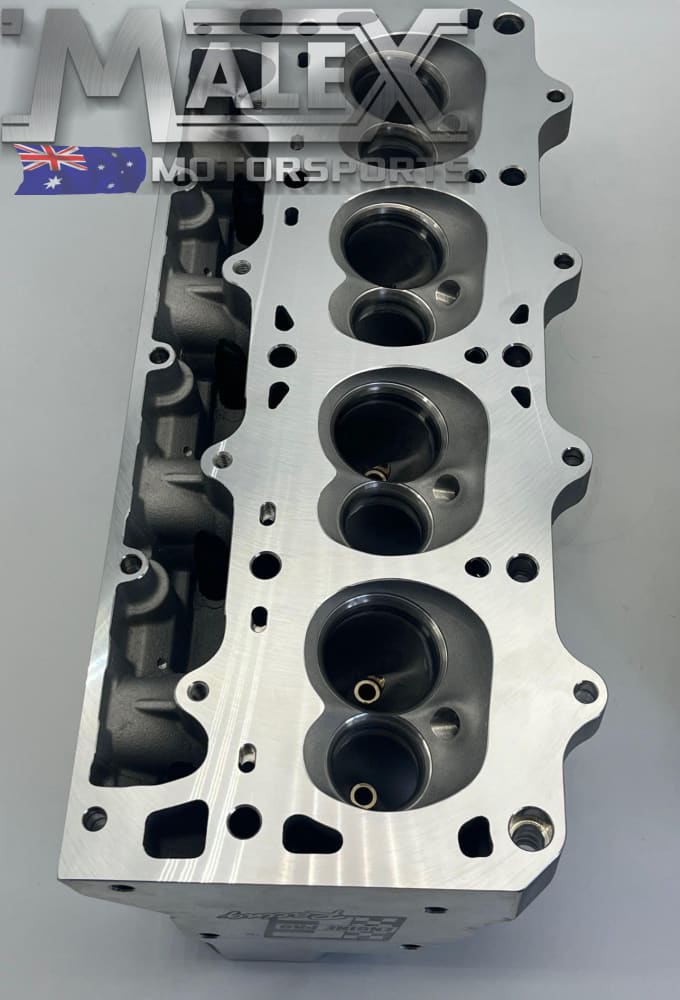

Combustion Chamber Volume | 61cc
Intake Runner Volume | 240cc

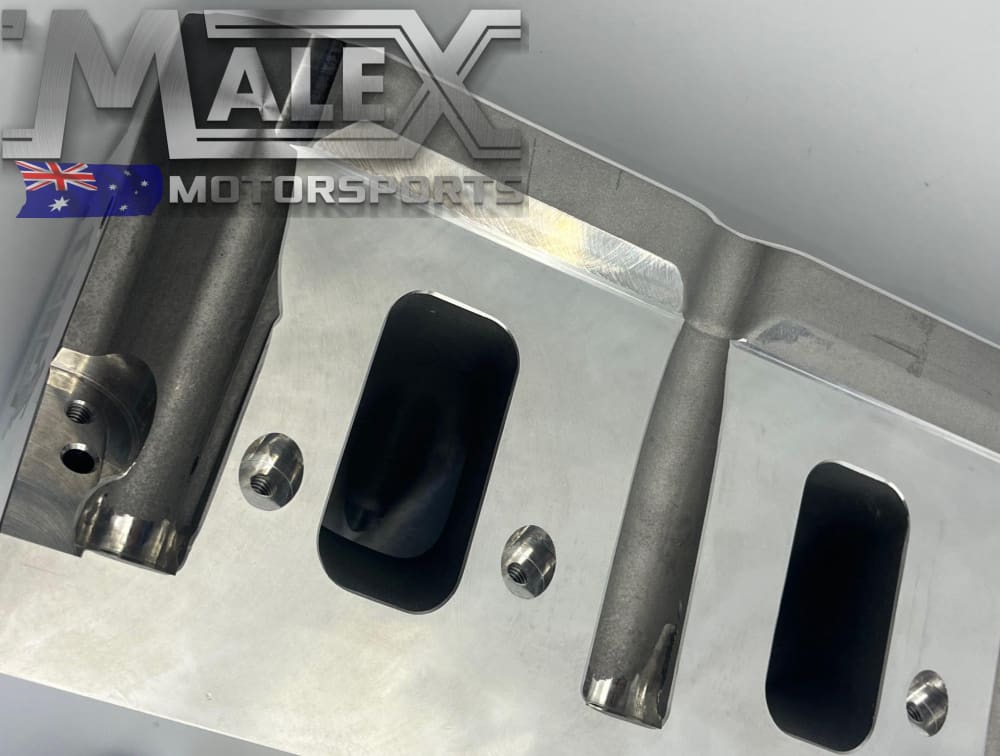

Intake Port Size H x W | 2.551 X 1.257"
Exhaust Runner Volume | 103cc
Exhaust Port Size H x W | 1.674" Circle
Intake Valve Size | 2.080" (01-2810-8)
Exhaust Valve Size | 1.600" (01-2820-8)
Valve Stem Diameter | 8.00mm
Valve Length | + 0.500"
Valve Angle | 11 Degree
Valve Guide Seal Diameter | 0.500"
Valve Guide Material | Manganese Bronze
Valve Spring Base Diameter | 1.640"
Rocker Type | LS3 (Rocker Arm Stand Included)
Deck Thickness | 0.750"

Flow Data @ 28"(CFM) With 2.080" & 1.600" Valves
Intake
@.300" = 203
@.400" = 259
@.500" = 292
@.600" = 306
@.700" = 313
Exhaust
@.300" = 145
@.400" = 182
@.500" = 210
@.600" = 225
@.700" = 231
