LS Truck Block - 4.8L 5.3L Iron Block Drill Template

SKU: F1-551445
Ls Truck Block - 4.8L 5.3L Iron Drill Template Tool
Ls Truck Block - 4.8L 5.3L Iron Drill Template Tool
Ls Truck Block - 4.8L 5.3L Iron Drill Template Tool

LS Truck Block - 4.8L 5.3L Iron Block Drill Template

SKU: F1-551445
Regular price $21.00
/
  • Secure payments
  • In stock, ready to ship
  • Inventory on the way
Tax included.
Description

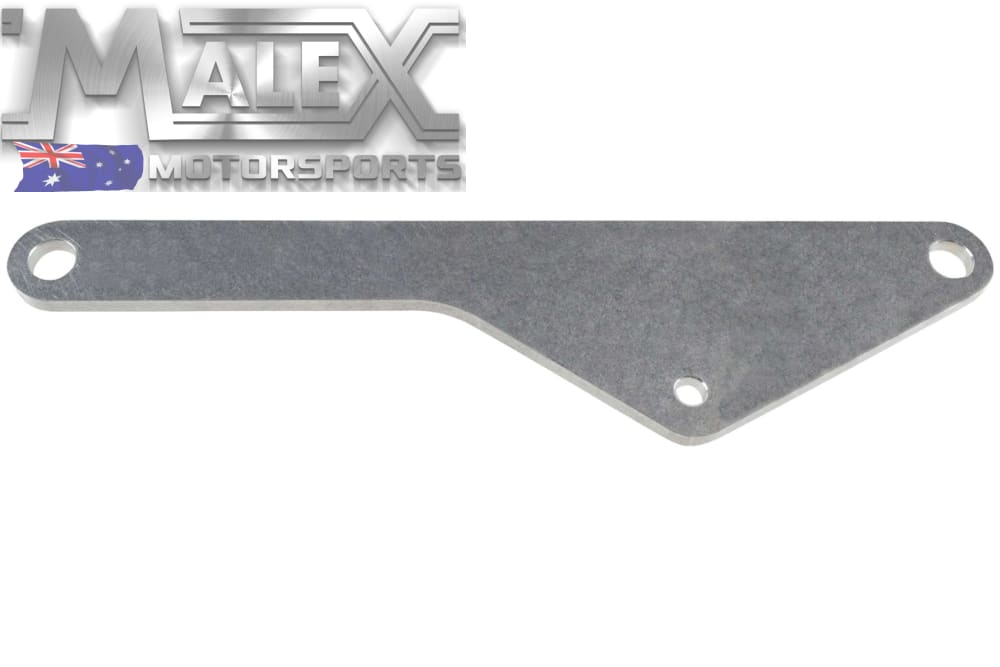

Drill Template for LS Truck/SUV Iron Blocks

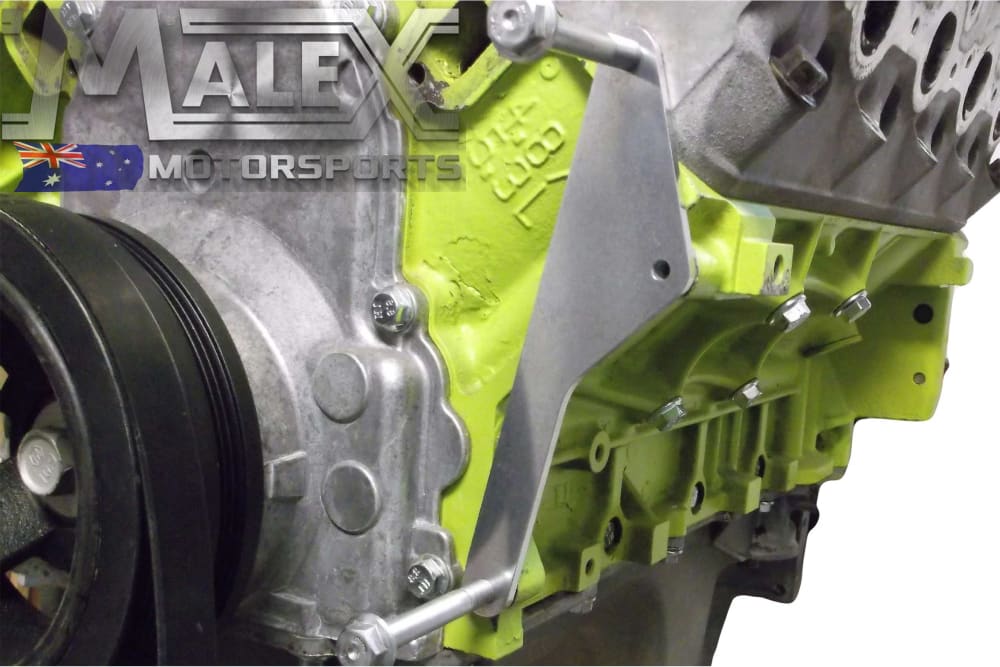

Do you have an LS Truck block and need the second mounting hole for low mount alternators or other accessories? We've made it simple with this easy to use template. Just attach the template with your factory hardware, mark the hole, then drill the hole with an "R" drill bit (.339", or 11/32"), then use an M10-1.5 Tap. (This is in a non critical part of the engine block.)







  • Perfectly align and drill the second mounting hole for low mount alternators in LS Truck/SUV iron blocks.
  • Mark the center point for precise drilling & tapping.
  • Made in Wichita, Kansas from aerospace grade, USA produced billet aluminum
  • Includes: 1 drill template only
