LS Oil Pressure Sensor Relocation Adapter w/ Dual 1/8"npt Outlets

  • Sale
  • Regular price $49.95
  • 2 available
Tax included.

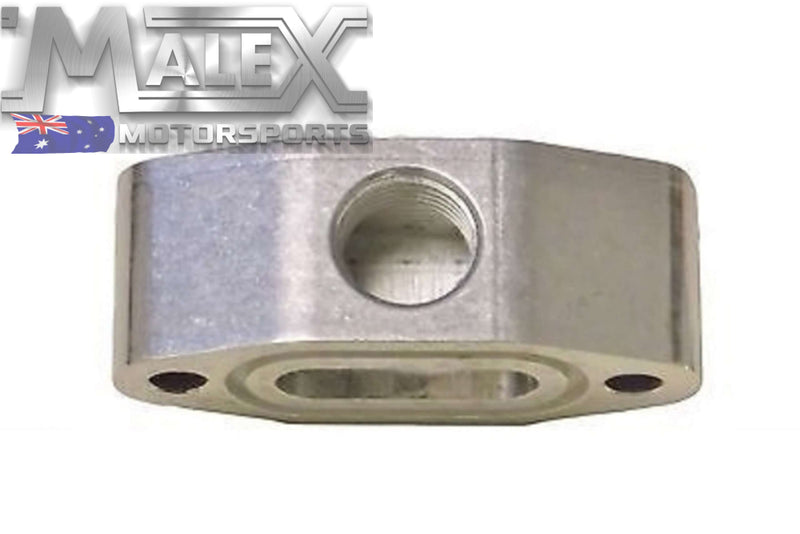

LS Oil Pressure Sending Unit Relocation Adapter With Dual 1/8" NPT Ports


  • Has 2ea 1/8" NPT ports and 1ea  M16-1.5 threaded (factory LS oil pressure sensor) hole
  • Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminium
  • Compatible with LS2 LS3 L98 factory Commodore oil pans
  • Compatible with all LS oil pans, except VT to VZ Commodore front-sump oil pans due to the architecture of the internal oil routing in the pan, and dry-sump oil pans (LS7, LS9, etc), and LS4 oil pans
  • Does NOT require gasket (includes oring seal)

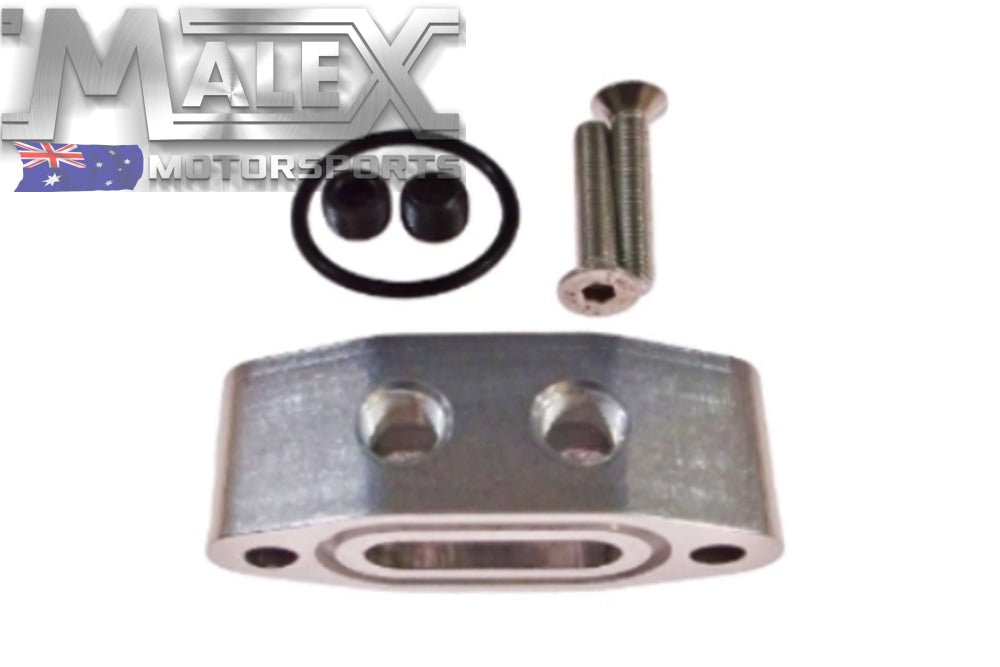

  • Includes, oil port, oring seal, 2ea  1/8"npt plugs, and 2 bolts



  • This will NOT fit Holley oil pans
