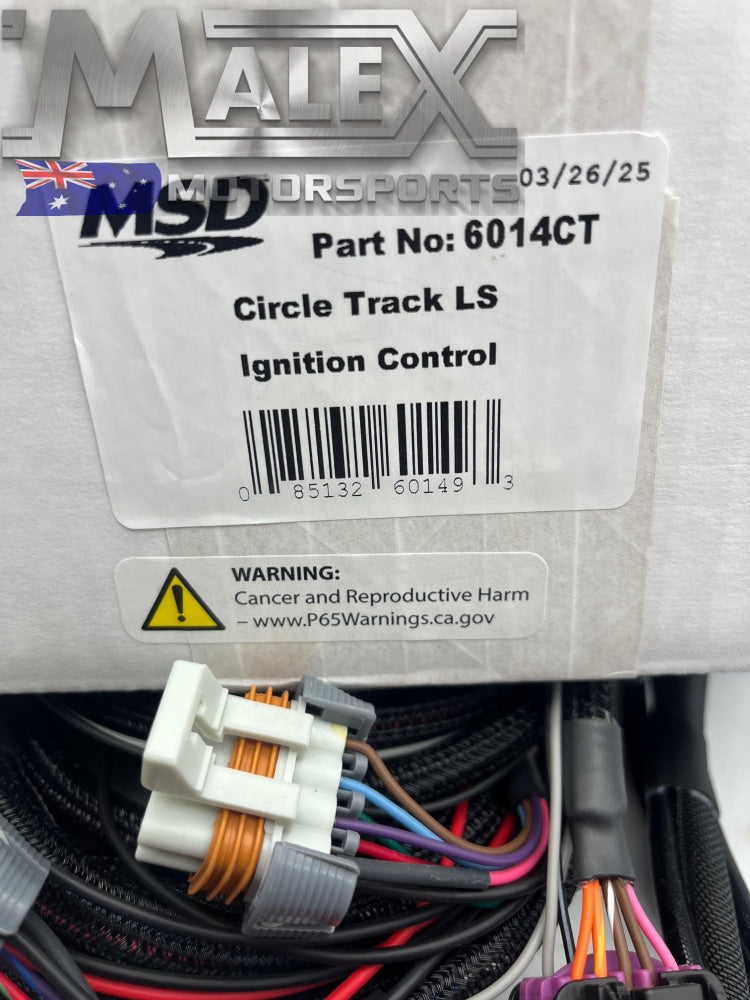

LS CT525 Ignition Controller MSD Circle Track 6014CT

SKU: B18-6014CT
LS CT525 Ignition Controller MSD Circle Track 6014CT
LS CT525 Ignition Controller MSD Circle Track 6014CT
LS CT525 Ignition Controller MSD Circle Track 6014CT
LS CT525 Ignition Controller MSD Circle Track 6014CT
LS CT525 Ignition Controller MSD Circle Track 6014CT
LS CT525 Ignition Controller MSD Circle Track 6014CT
LS CT525 Ignition Controller MSD Circle Track 6014CT
LS CT525 Ignition Controller MSD Circle Track 6014CT

LS CT525 Ignition Controller MSD Circle Track 6014CT

SKU: B18-6014CT
/
  • Secure payments
  • Low stock - 1 item left
  • Inventory on the way
Tax included.
Description

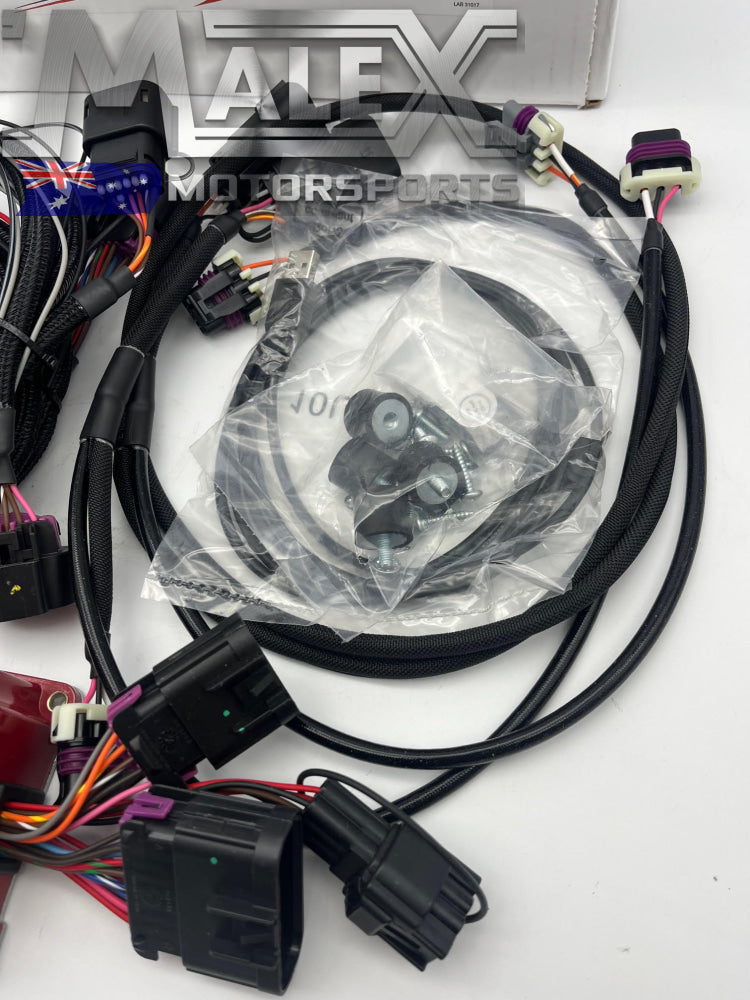

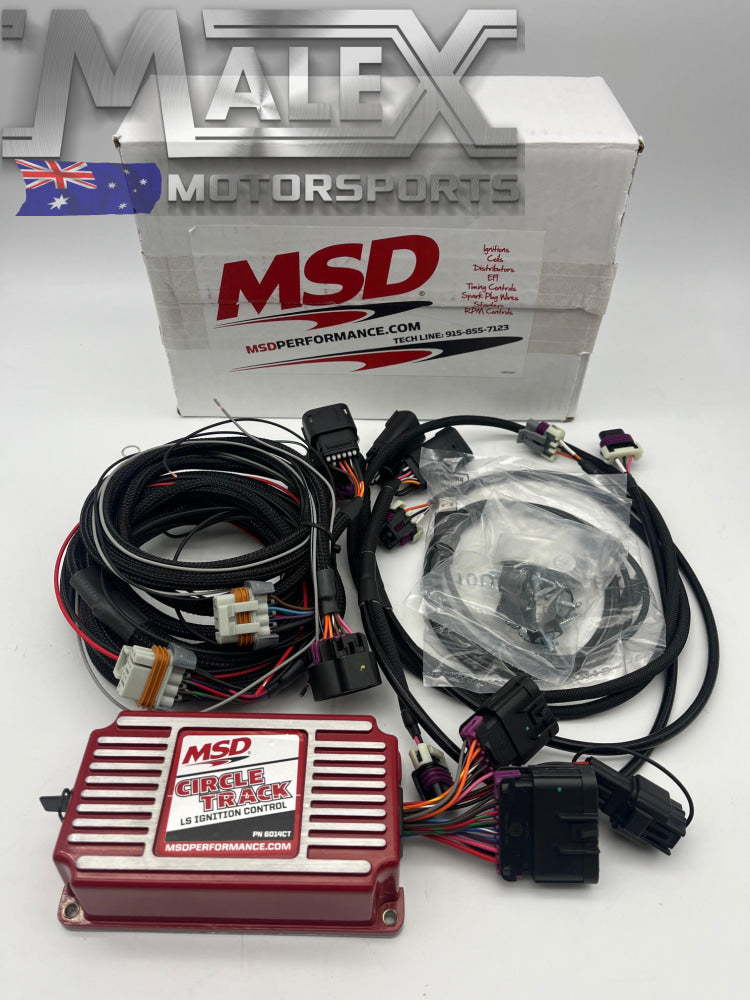

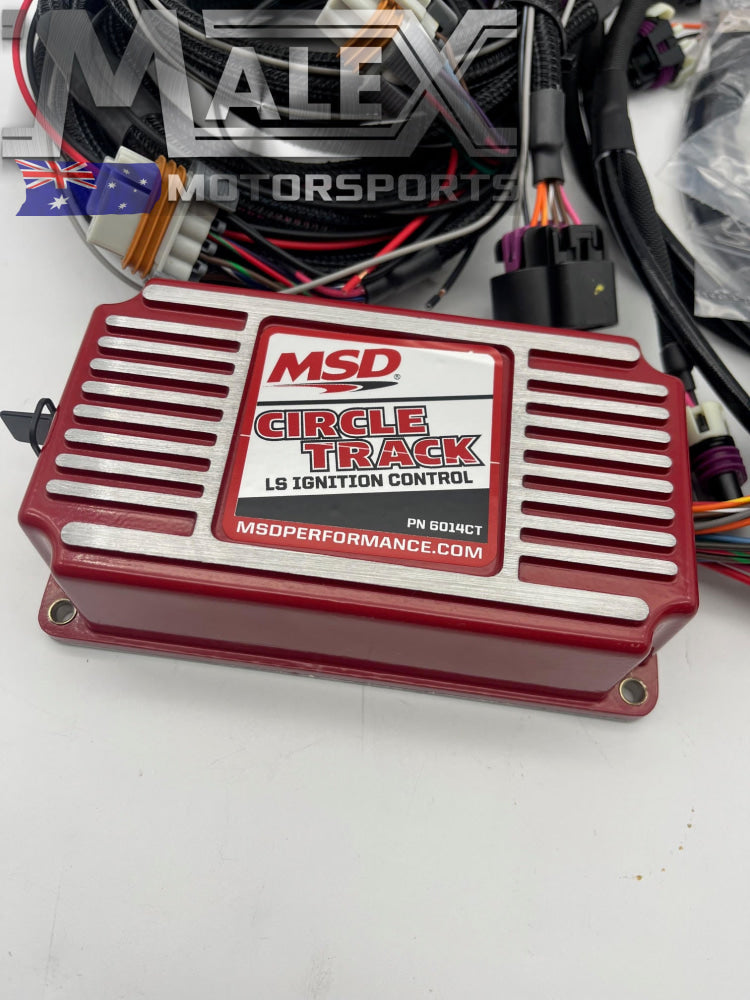

   6014CT Is designed to run the CT525 GM performance engine. Pre programmed to run the CT525 out of the box. CT525 crate engines and built LS mills alike need a way to control 8 coils, RPM and timing. The 6014CT makes this easy with factory connectors that plug directly into the LS cam sensor, crank sensor and coils. If running a CT525 a preset timing curve and rev limiter setup is preprogrammed. For built LS engines that require a little more attention, plug your laptop in to program a timing curve and rev limiter with the user friendly MSD View software. Supply the unit with power and ground and you're off to the races!

Features:

  • Direct plug-in to factory GM LS sensors and coils
  • Preprogrammed to run the GM CT525 crate engine out of the box
  • Laptop programmable RPM limit, timing curve and coil selection for custom tuning
  • Auto detects coils, cam sensor and crank sensor
  • Will run 24x 1x, 58x 1x and 58x 4x crank / cam sensor combinations
  • Self-powered with USB for laptop programming
  • Steady, accurate timing control
  • Dedicated plug for Tech Official
