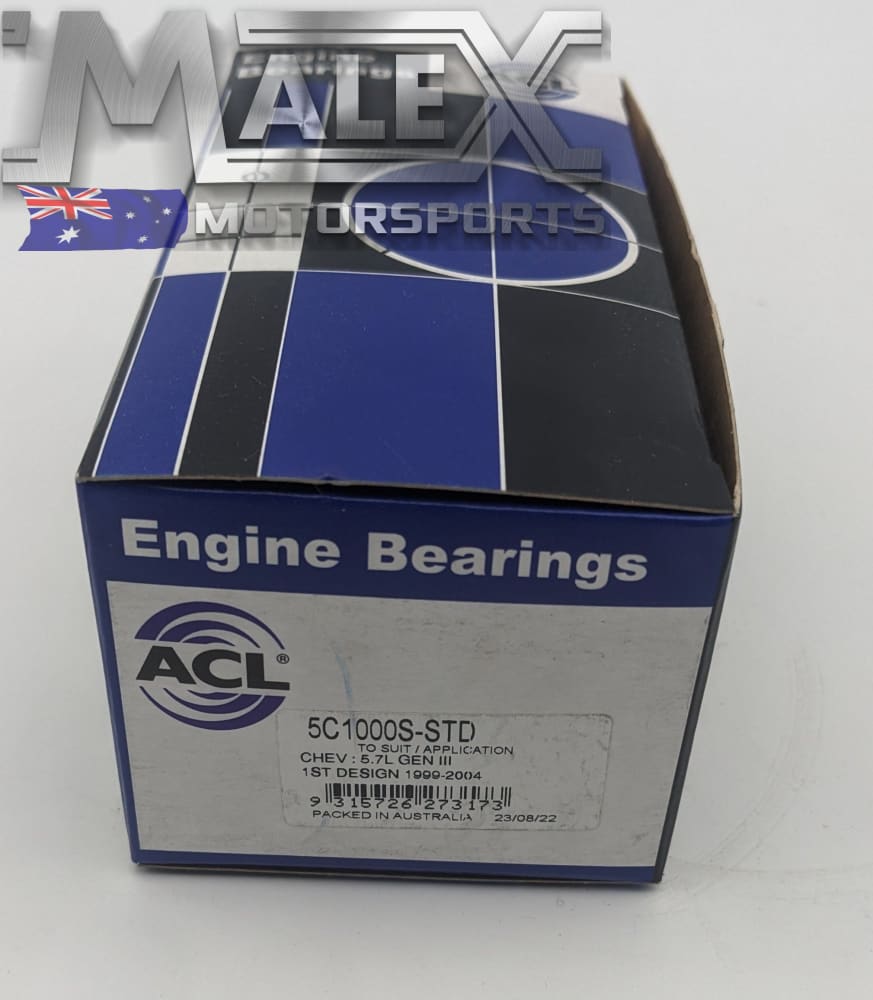

LS Cam Bearings ACL suit 1997-2003 LS1 5.7

SKU: 5C1000S-STD
Ls Cam Bearings Acl Suit 2003 On Ls1 Ls2 Ls3 L98 L76 L77 Ly6
Ls Cam Bearings Acl Suit 2003 On Ls1 Ls2 Ls3 L98 L76 L77 Ly6
Ls Cam Bearings Acl Suit 1997-2003 Ls1 5.7

LS Cam Bearings ACL suit 1997-2003 LS1 5.7

SKU: 5C1000S-STD
Regular price $39.00
/
  • Secure payments
  • In stock, ready to ship
  • Inventory on the way
Tax included.
Description

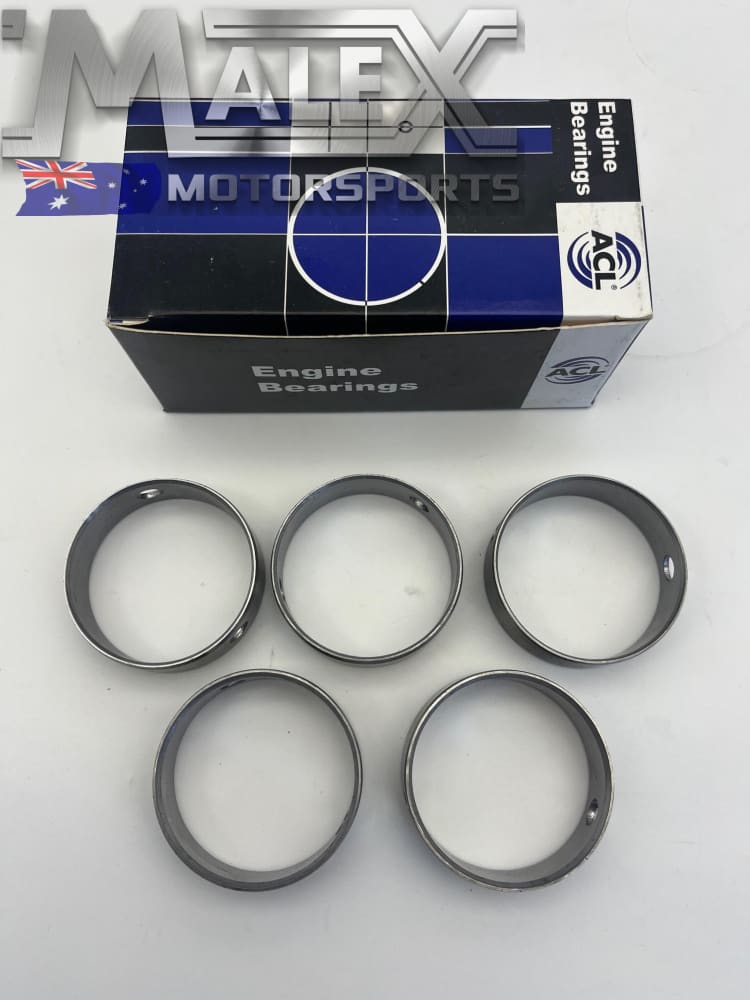

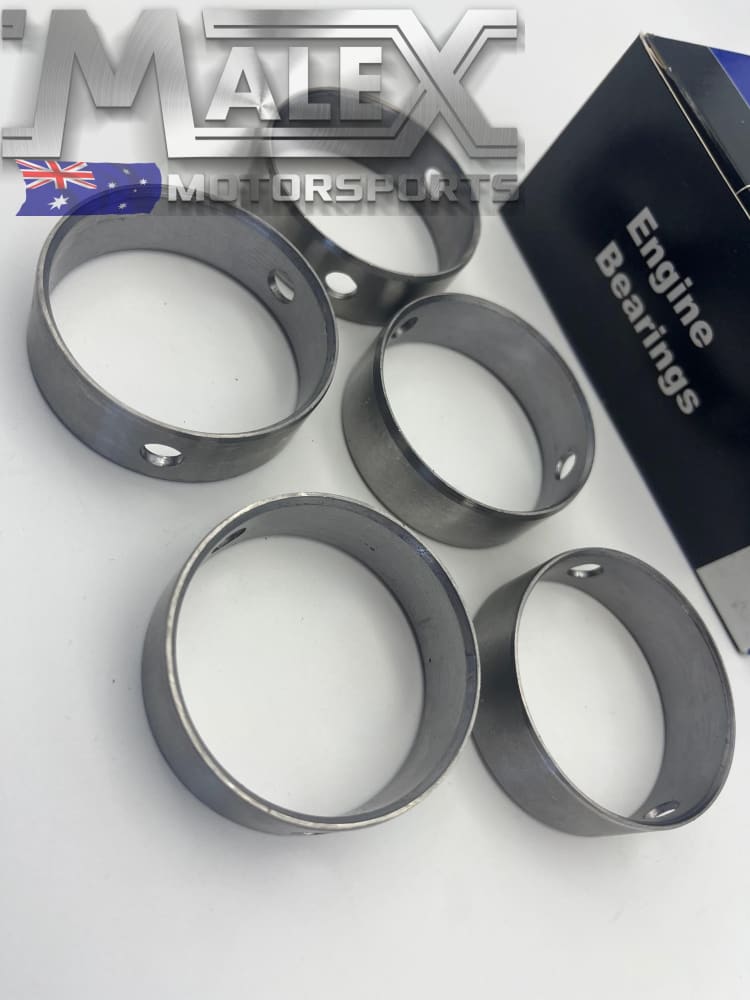

New ACL cam bearings. Same as CH10. Suits 1997-2003  LS engines with cam tunnel bores 1 and 5 having a diameter of 2.327"

Full circle one piece design

Will not fit later type LS engines that started in 2003 as they have .020" bigger tunnel on number 1 and 5. If you are unsure you may need to measure your old bearings or cam tunnel.

  • 1st Design - Part # CH10: Fits 1997-2003 engines where the block housing bore on positions 1 and 5 measures 2.3270"" & bearing width is: 0.630"
  • 2nd Design - Part # CH23: Fits 2003-2007 engines where the block housing bore on positions 1 and 5 measures 2.3470" & bearing width is: 0.630"
  • 3rd Design - Part # CH25: Fits 2007-2013 engines where the block housing bore on positions 1 and 5 measures 2.3470" & bearing width is: 0.775"
  • Here at Malex Motorsports all of our items are in stock in our Sydney based store, ready to ship or pick up.
  • NOW IN SMEATON GRANGE!
