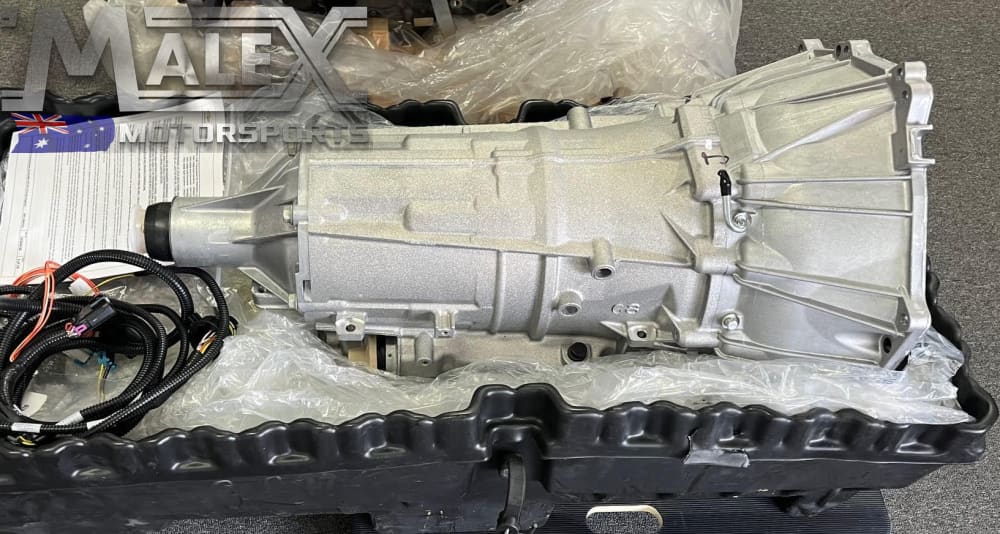

Brand new high performance 6L80E built by GM Performance

These are a stand alone transmission and controller designed to be used with a range of LS platform crate engines. Including LS3, LS376-480,  LS376-525, LS7, LSA etc.

Torque rated to 650 lb ft / 881Nm   (34% stronger than a  LSA 6L90E)

Gear changing is fully automatic being controlled by the Transmission Control Module (TCM) which is inside the transmission. The TCM receives all the information it needs from inputs with the transmission and from the harness supplies.

Paddle shift compatible. Harness has input provisions to for paddle shift for full manual control. Also has sport mode for full auto performance shifting.

Gear ratios as follows 1st 4.027   2nd 2.364   3rd 1.532   4th 1.152   5th 0.852  6th  0.667.

Includes a GM flash drive for the software upload and the interface cable which has a single use licence to program. Can be used multiple times but only with the one transmission.

2400 rpm stall converter

Use GM P/N 84389645 or equivalent slip yoke

Please call if you have any questions.
