Engine Pro Racing Cylinder Heads 69Cc 255Cc Intake Runner 11 Degree Valve Angle L98 Ls3

Engine Pro Racing Cylinder Heads 69Cc 255Cc Intake Runner 11 Degree Valve Angle L98 Ls3

Engine Pro Racing Cylinder Heads 69Cc 255Cc Intake Runner 11 Degree Valve Angle L98 Ls3

Engine Pro Racing Cylinder Heads 69Cc 255Cc Intake Runner 11 Degree Valve Angle L98 Ls3

Engine Pro Racing Cylinder Heads 69Cc 255Cc Intake Runner 11 Degree Valve Angle L98 Ls3

Engine Pro Racing Cylinder Heads 69Cc 255Cc Intake Runner 11 Degree Valve Angle L98 Ls3

Engine Pro Racing Cylinder Heads 69Cc 255Cc Intake Runner 11 Degree Valve Angle L98 Ls3

Engine Pro Racing Cylinder Heads 69Cc 255Cc Intake Runner 11 Degree Valve Angle L98 Ls3

Engine Pro Racing Cylinder Heads 69Cc 255Cc Intake Runner 11 Degree Valve Angle L98 Ls3

Engine Pro Racing Cylinder Heads 69Cc 255Cc Intake Runner 11 Degree Valve Angle L98 Ls3

Engine Pro Racing Cylinder Heads 69Cc 255Cc Intake Runner 11 Degree Valve Angle L98 Ls3

Engine Pro Racing Cylinder Heads 69Cc 255Cc Intake Runner 11 Degree Valve Angle L98 Ls3

Price

Secure payments

Low stock - 1 item left
Inventory on the way

Quantity

Description

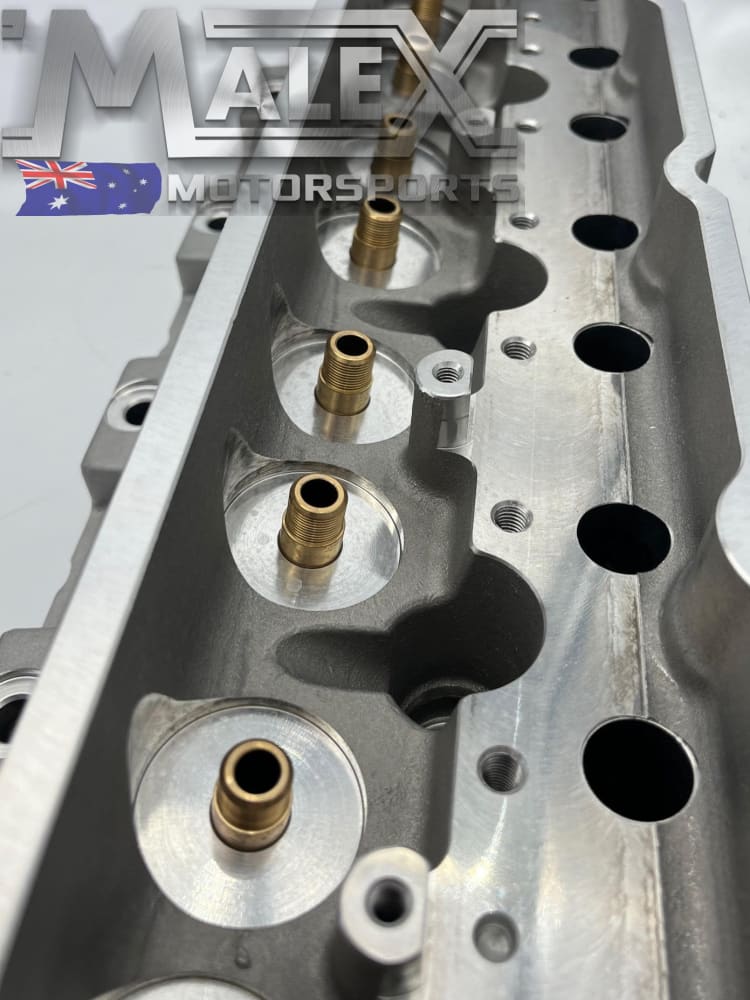

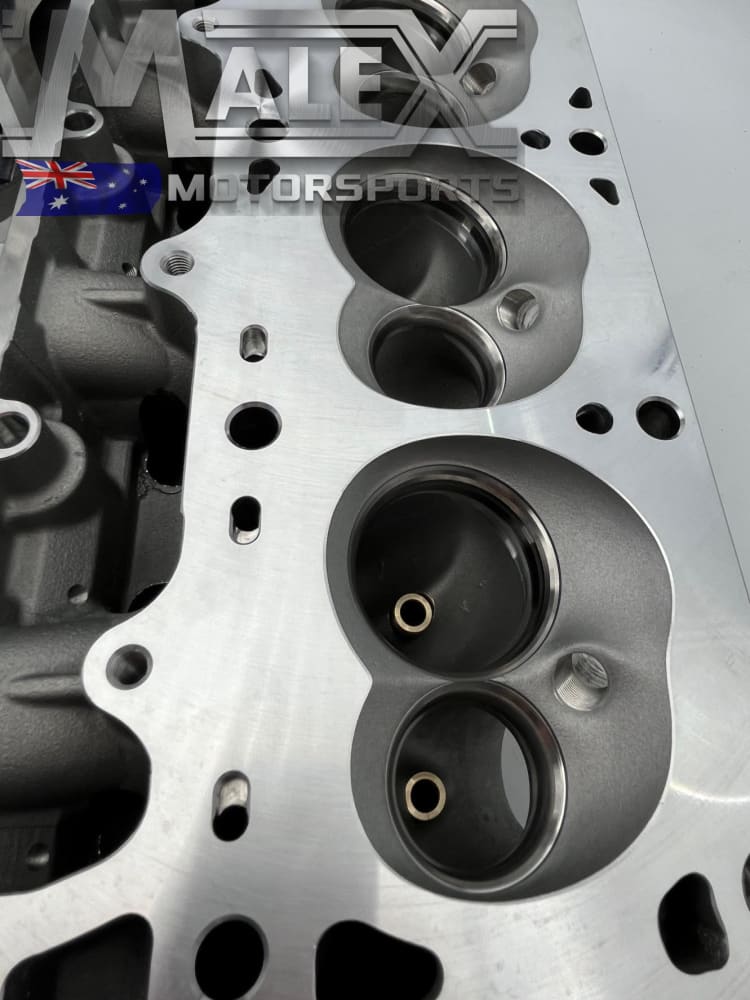

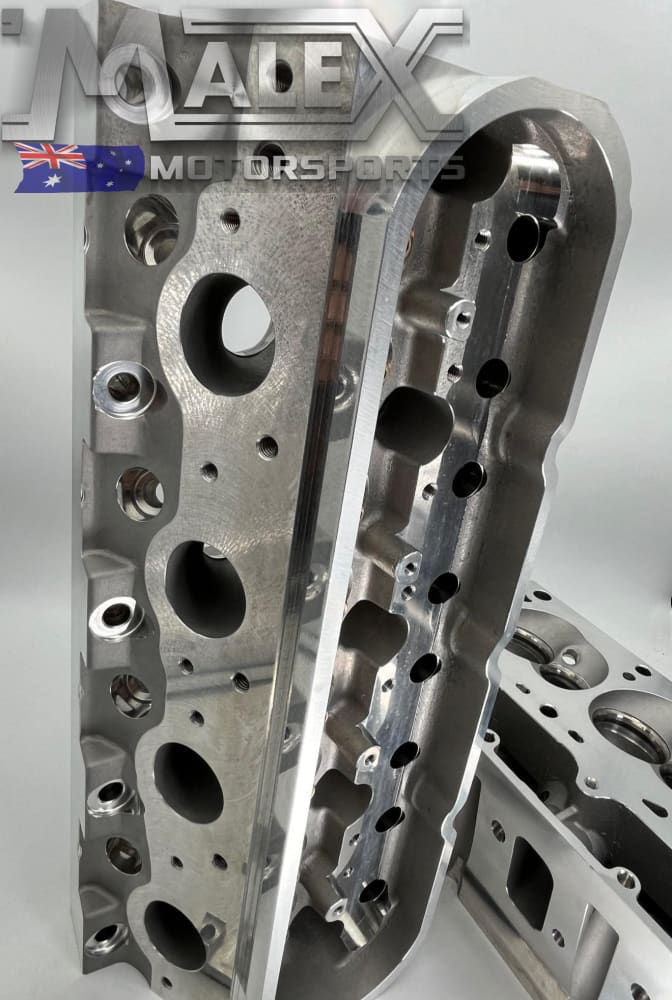

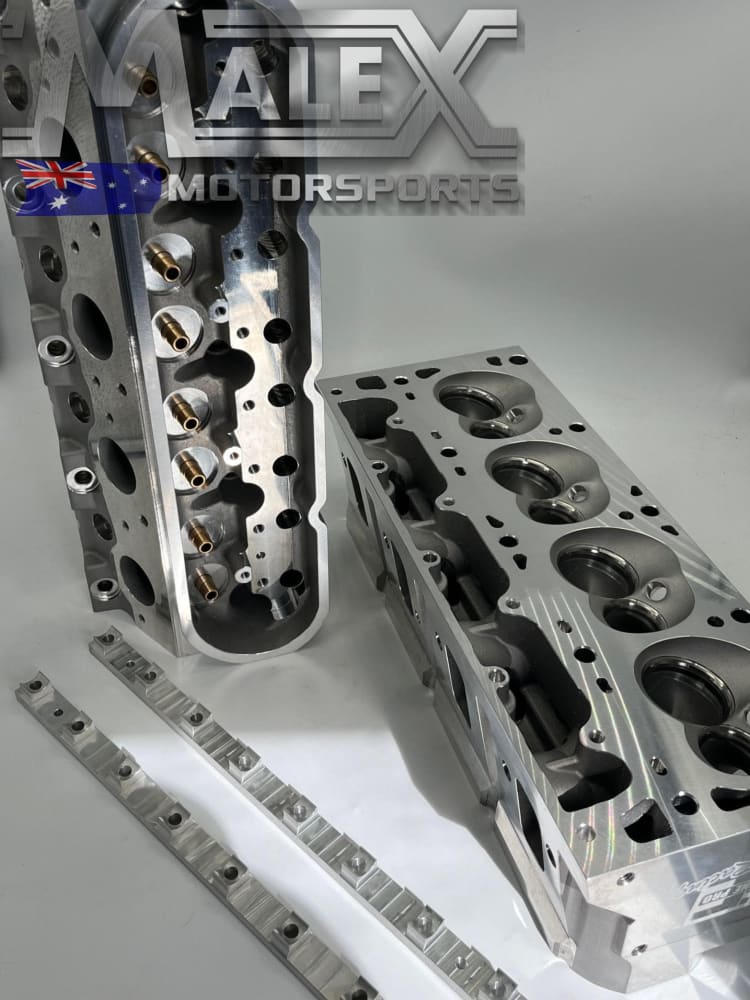

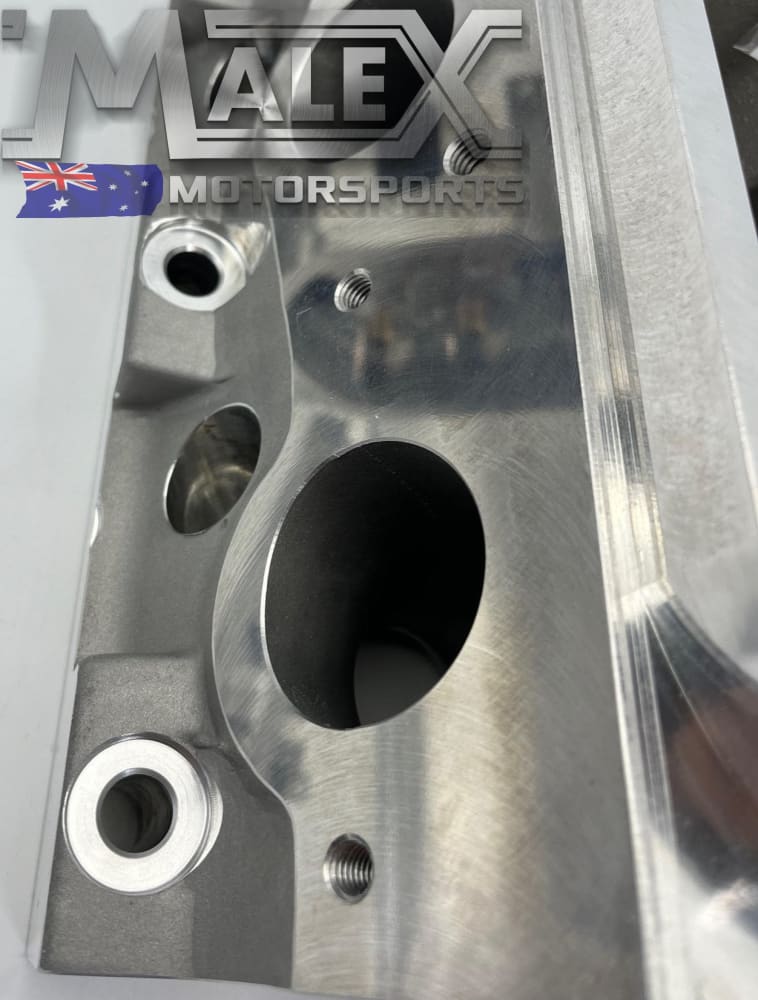

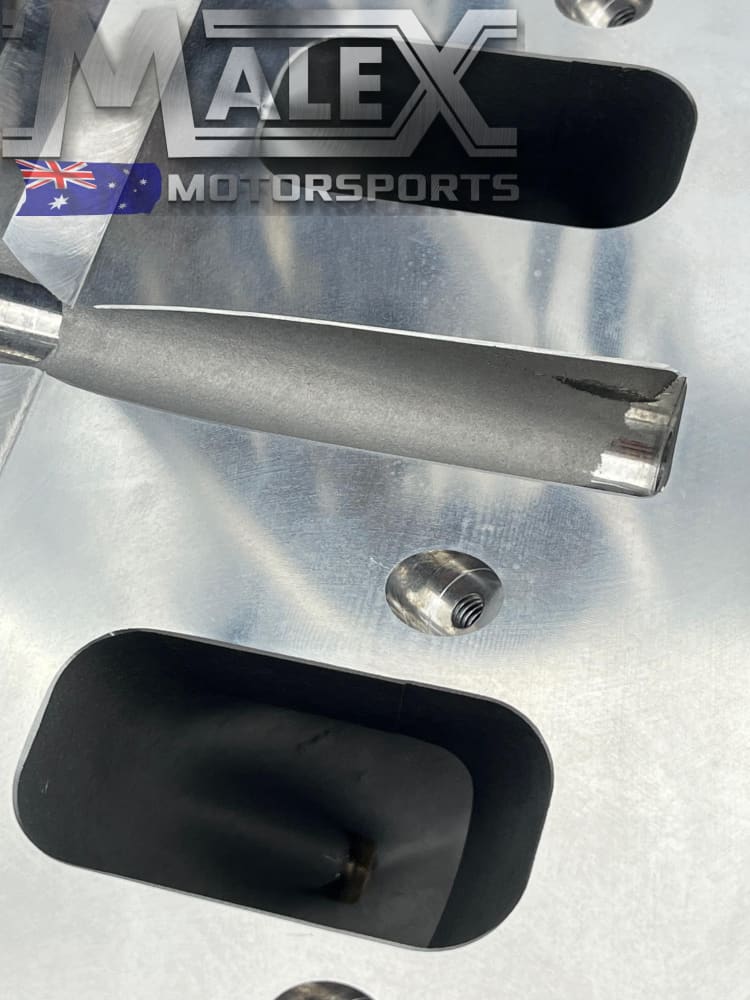

Bare Head Pair - Rectangle Intake Ports 255cc, 11 Degree Valve Angle

4 Bolt Head Bolt Design

Material | Aluminium
Combustion Chamber Volume | 69cc
Intake Runner Volume | 255cc
Intake Port Size H x W | 2.580" X 1.285"
Exhaust Runner Volume | 112CC
Exhaust Port Size H x W | 1.685" X 1.795"
Intake Valve Size | 2.165" (01-2800-8)
Exhaust Valve Size | 1.600" (01-2820-8)
Valve Stem Diameter | 8.00mm
Valve Length | + 0.500"
Valve Angle | 11 Degree
Valve Guide Seal Diameter | 0.500"
Valve Guide Material | Manganese Bronze
Valve Spring Base Diameter | 1.640"
Rocker Type | LS3 (Rocker Arm Stand Included)
Deck Thickness | 0.750"

Flow Data @ 28"(CFM) With 2.165" & 1.600" Valves
Intake
@.300" = 197
@.400" = 249
@.500" = 301
@.600" = 325
@.700" = 327
Exhaust
@.300" = 141
@.400" = 175
@.500" = 202
@.600" = 217
@.700" = 219

Here at Malex Motorsports all of our items are in stock in our Sydney based store, ready to ship or pick up.
