Small Universal Heat Exchanger with -12 ORB Inlet/Outlet Ports LSA

SKU: AF77-2048
Small Universal Heat Exchanger With -12 Orb Inlet/Outlet Ports Lsa
Small Universal Heat Exchanger With -12 Orb Inlet/Outlet Ports Lsa

Small Universal Heat Exchanger with -12 ORB Inlet/Outlet Ports LSA

SKU: AF77-2048
Regular price $225.00
/
  • Secure payments
  • Low stock - 1 item left
  • Inventory on the way
Tax included.
Description

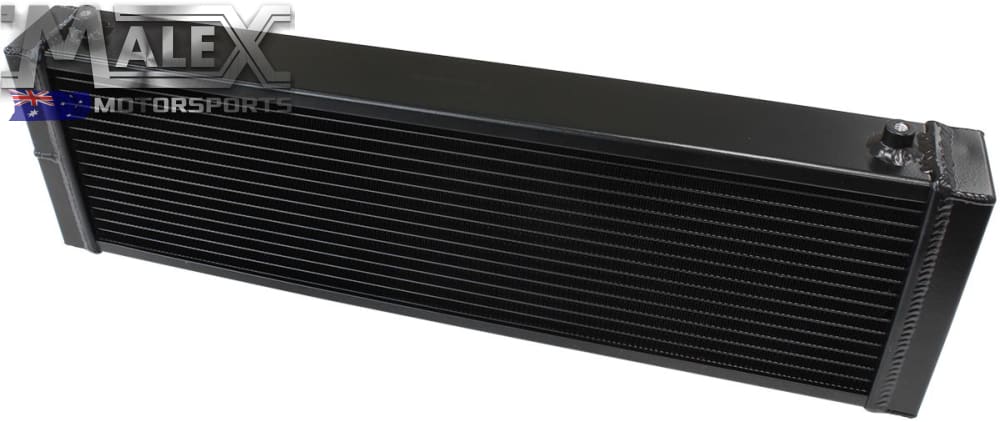

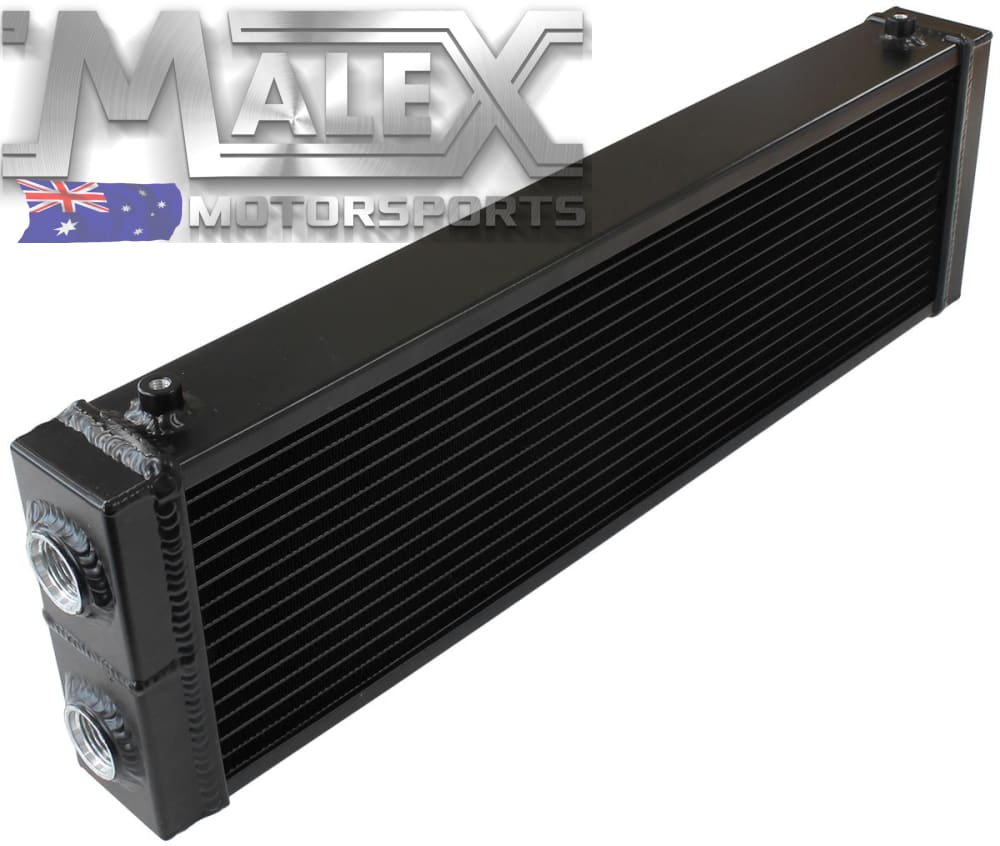

Small Universal Heat Exchanger with -12 ORB Inlet/Outlet Ports

The Aeroflow Performance universal heat exchanger is a dual pass/single row design which allows the coolant to flow across the core of the heat exchanger two times before exiting the radiator for the lowest outlet temperature possible. In a liquid-to-air intercooler system or a supercharger setup, the air is cooled by liquid, typically water. These systems require a supplemental heat exchanger to cool the liquid running through the intercooler. it is recommended this type of heat exchanger is front mounted and/or accessible to fresh air flow for optimal performance.

Overall Dimensions
- Width (Tank end to Tank end): 605mm
- Thickness: 70mm
- Height: 200mm

Core Dimensions
- Width of Core: 535mm
- Thickness of Core: 65mm
- Height of Core: 174mm

- M8 x 1.25mm mounting bungs
- 1/8" NPT bleed port on top end of tank

Here at Malex Motorsports all of our items are in stock in our Sydney based store, ready to ship or pick up.
