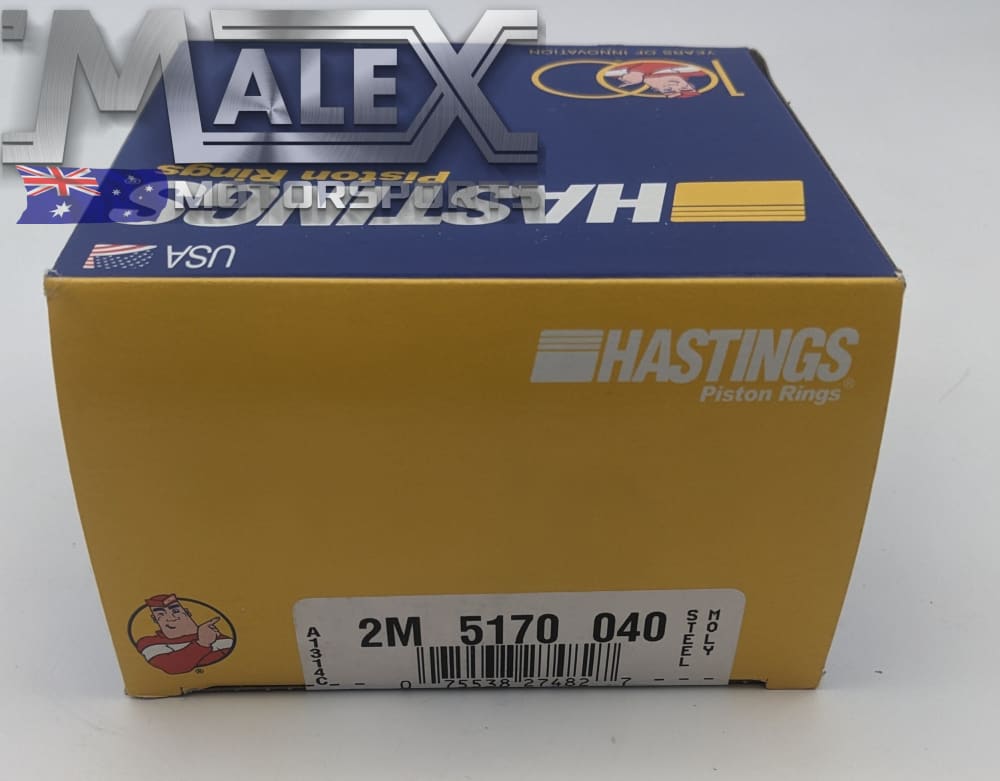

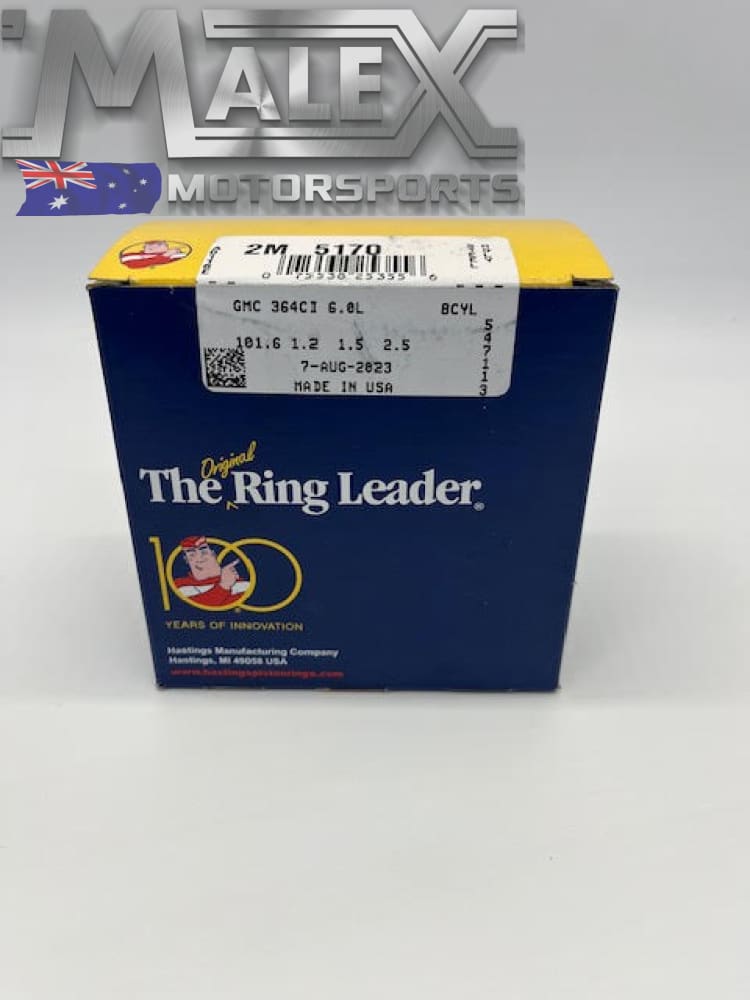

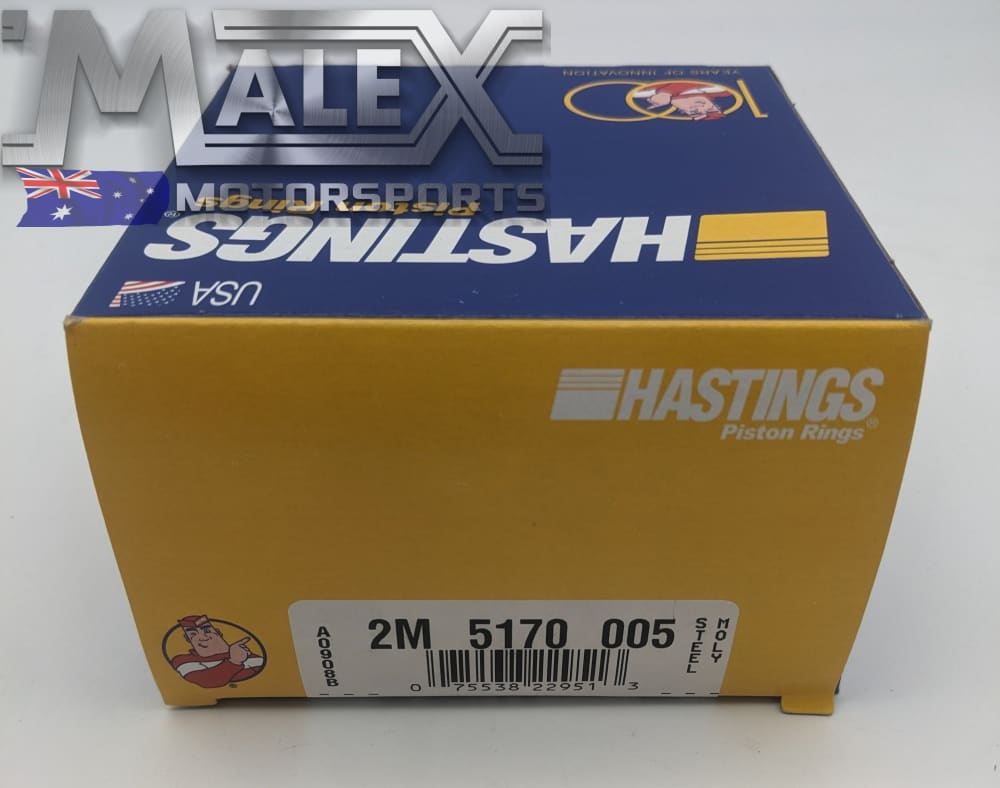

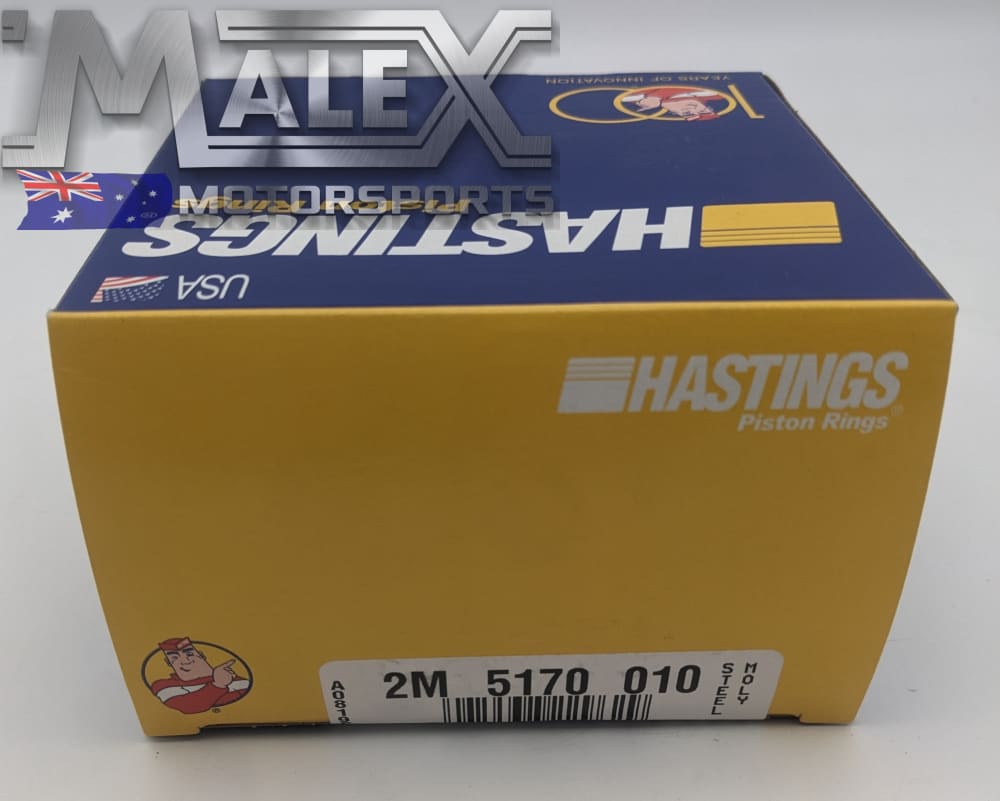

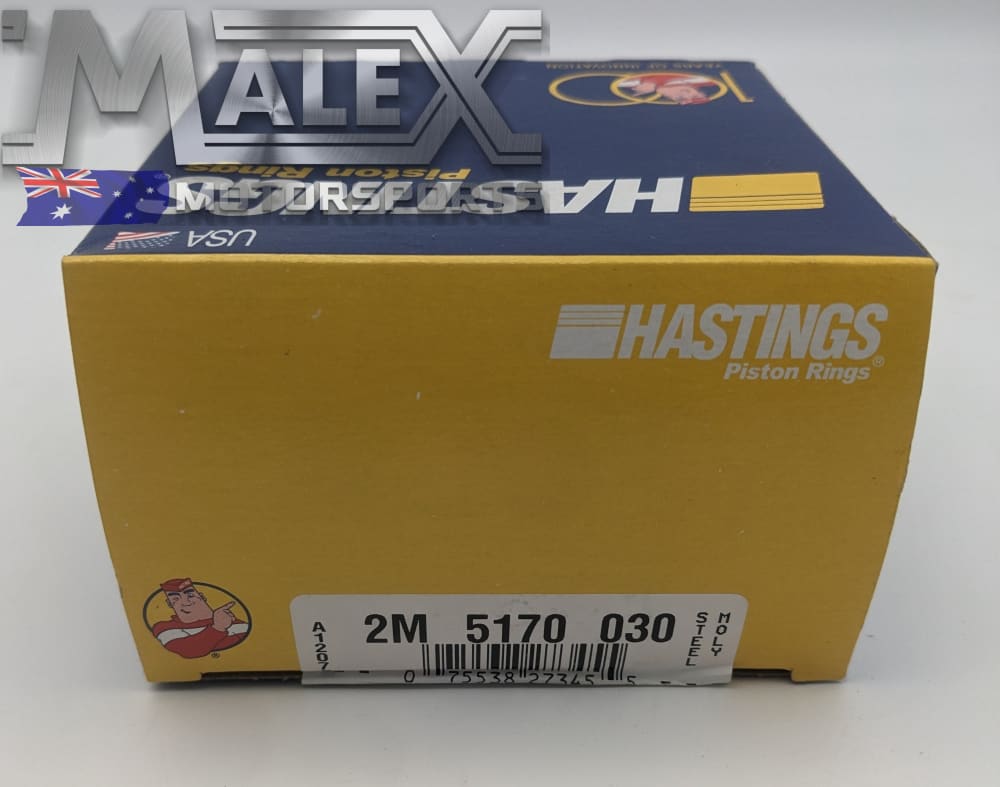

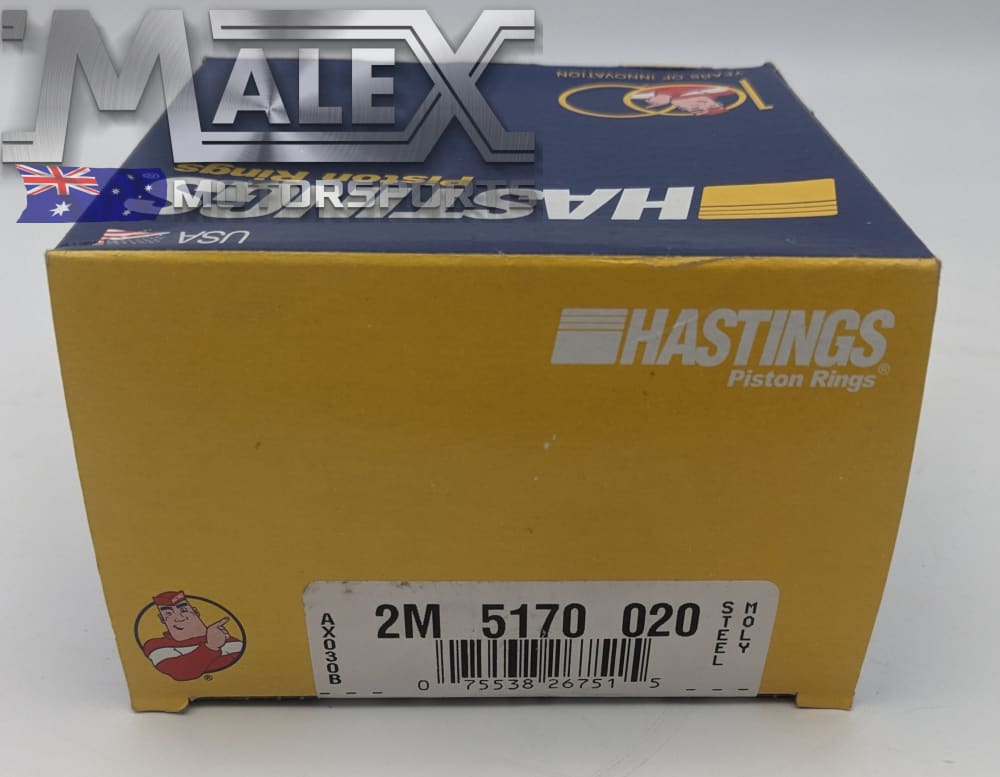

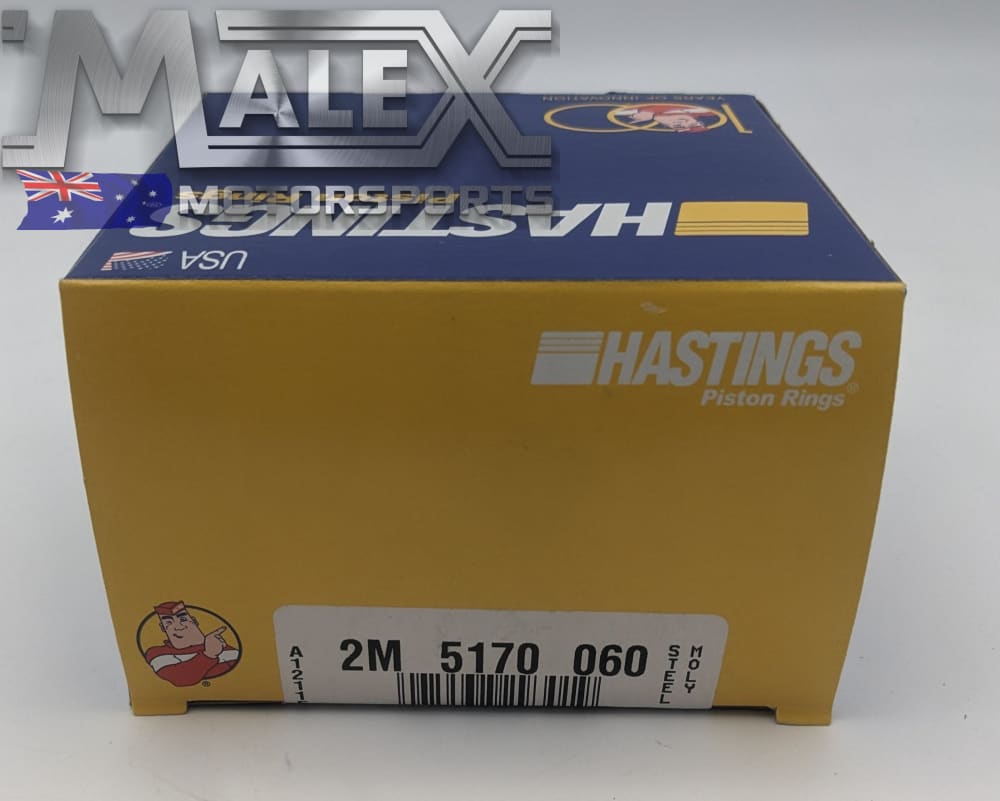

New full set of HASTINGS piston rings

Suit LS standard 4.000 Bore    101.60mm  1.2 1.5 2.5 ring grooves

These rings suit the LATE 6.0L LS engines with 1.2 1.5  2.5 Ring grooves. These ring types are most commonly found in Late 6.0l engines with a 52 tooth reluctor, Such as VE and VF commodore 6.0L engines. Please measure your rings to confirm before ordering.

suit Gen 4 6.0L LS

A common practice in performance applications is file fitting piston end gaps to a precise end gap using
slightly oversized rings. Most Performance Ring sets are available in file fit (+.005”) oversizes. The end gap
refers to the clearance between the two ends of the piston ring when installed into the cylinder bore. File
fitting end gaps is best done with a professional ring grinding tool, however if filing by hand always file from
the outside diameter towards the inside diameter to avoid chipping of the face coating. It is recommended to
file fit equal amounts from each side of the gap while keeping the gap ends square and parallel.
The recommended end gap is determined by the bore size and the application which the ring set will be
utilized. Below is a chart which contains the recommended end gap factor. To use this chart, multiply the
bore size by the ring end gap factor to obtain the minimum end gap which should be achieved. Example:
4.000” bore street engine with cast piston the top ring end gap factor is .004”, thus 4.000” x .004” = .016”
minimum end gap. It should be observed that for every .001” increase in bore diameter the ring end gap is
increased by .003”.

 Made in the USA
