Bosch Motorsports 275L/H IN-Line Fuel Pump Suit LS1 LS2 LS3 (Replaces 044)

SKU: D43R-0580464200
Bosch Motorsports 275L/H In-Line Fuel Pump
Bosch Motorsports 275L/H In-Line Fuel Pump
Bosch Motorsports 275L/H In-Line Fuel Pump
Bosch Motorsports 275L/H In-Line Fuel Pump

Bosch Motorsports 275L/H IN-Line Fuel Pump Suit LS1 LS2 LS3 (Replaces 044)

SKU: D43R-0580464200
Regular price $275.00
/
  • Secure payments
  • Low stock - 1 item left
  • Inventory on the way
Tax included.
Description

Bosch Motorsports 0580464200 Inline Fuel Pump.

Externally mounted inline pump.

Can support up to 600HP, Ideal for retrofitted LS conversions and modified LS engine. Supports 50% more HP than a Walbro 255

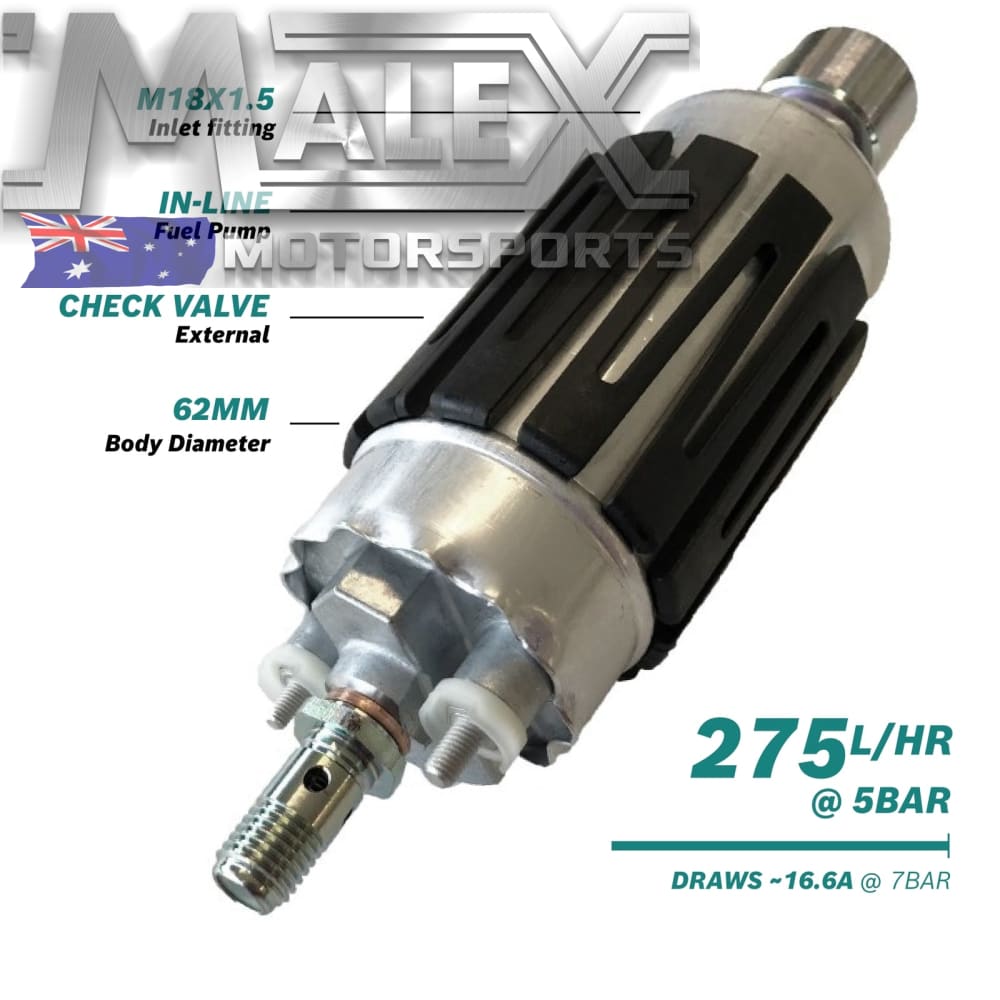

Pump body is 52MM Diameter without the insulator or 60MM with the insulator.

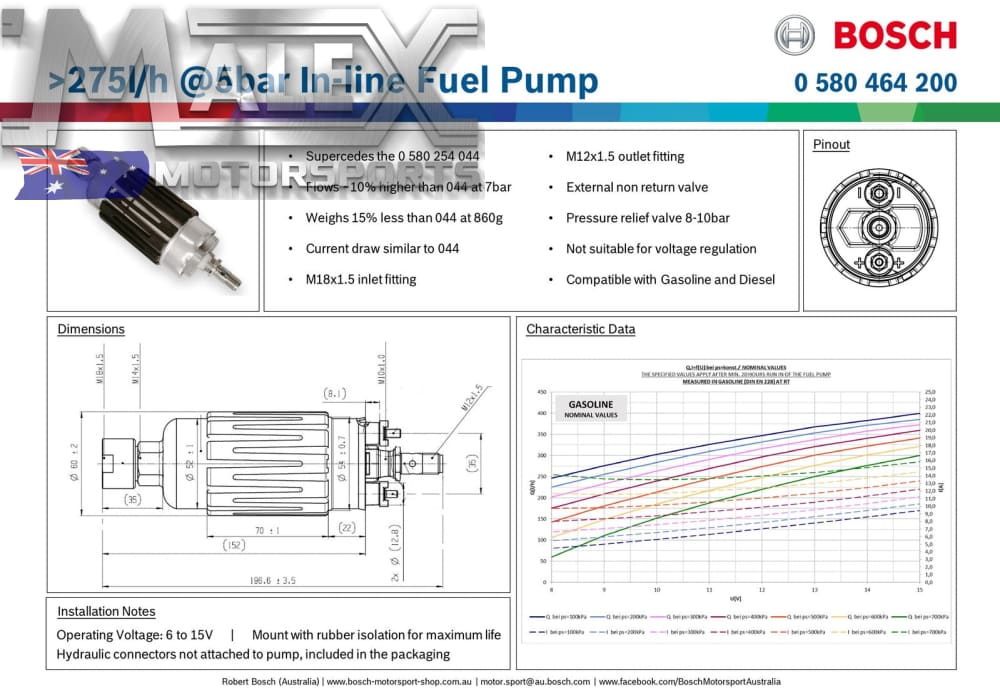

- >275l/h @ 5bar
- Supersedes the 0 580 254 044
- Flows ~10% higher than 044 at 7bar
- Weighs 15% less than 044 at 860g
- Current draw similar to 044, Draws 16.6A @7BAR
- M18x1.5 inlet fitting and M12x1.5 outlet fitting
- External non return valve
- Pressure relief valve 8-10bar
- Not suitable for voltage regulation
- Compatible with Gasoline and Diesel

Bosch turbine fuel pumps offer many advantages when compared to older roller-cell and inner-gear pump designs. Not only do these pumps offer near-silent operation and improved drivability, the core components of the turbine design significantly reduce wear and deliver a longer service life. Bracket ALY-001BK can be used with this pump.

Made in Czech Rep. Comes with Bosch authentication code
