Improved Racing Holden VT-VX Commodore Racing Oil Pan Baffle

SKU: R2B2S4-EGM-201
Improved Racing Holden VT-VX Commodore Racing Oil Pan Baffle Oil Pan Baffle
Improved Racing Holden VT-VX Commodore Racing Oil Pan Baffle Oil Pan Baffle
Improved Racing Holden VT-VX Commodore Racing Oil Pan Baffle Oil Pan Baffle
Improved Racing Holden VT-VX Commodore Racing Oil Pan Baffle Oil Pan Baffle
Improved Racing Holden VT-VX Commodore Racing Oil Pan Baffle Oil Pan Baffle

Improved Racing Holden VT-VX Commodore Racing Oil Pan Baffle

SKU: R2B2S4-EGM-201
Regular price $440.00
/
  • Secure payments
  • Low stock - 2 items left
  • Inventory on the way
Tax included.
Description

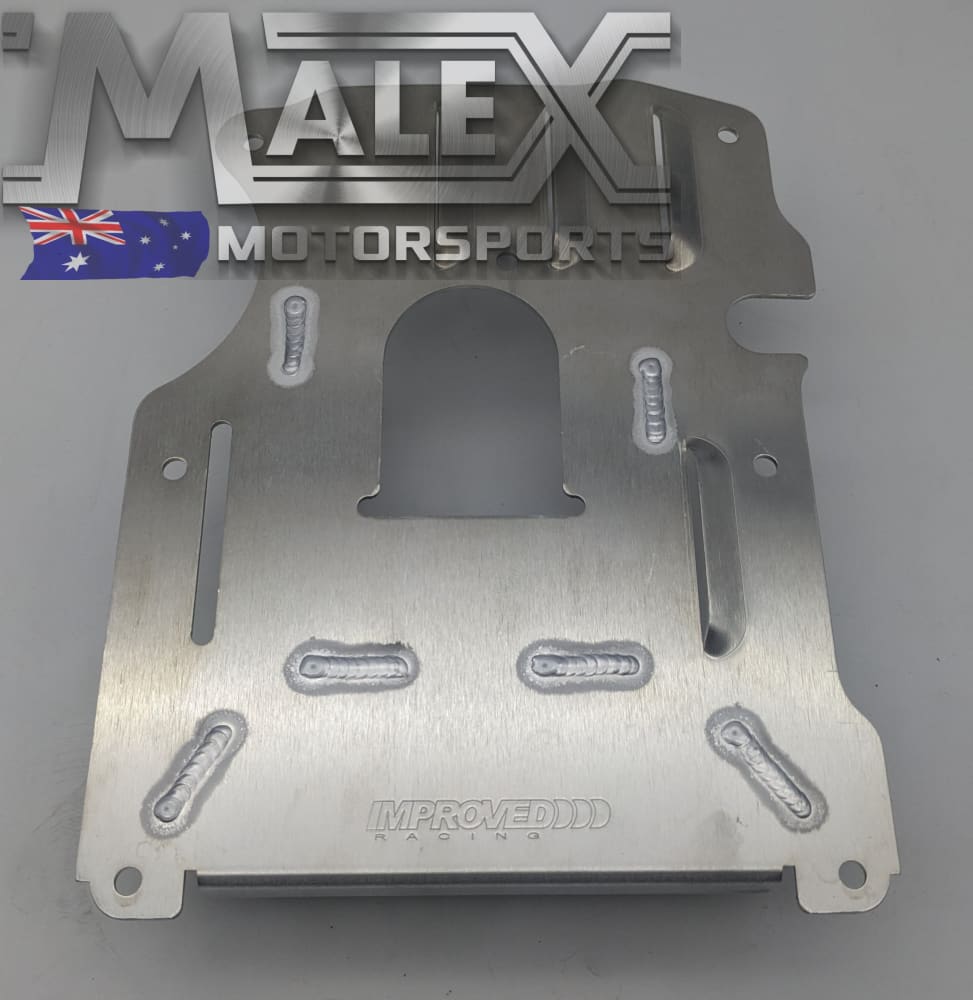

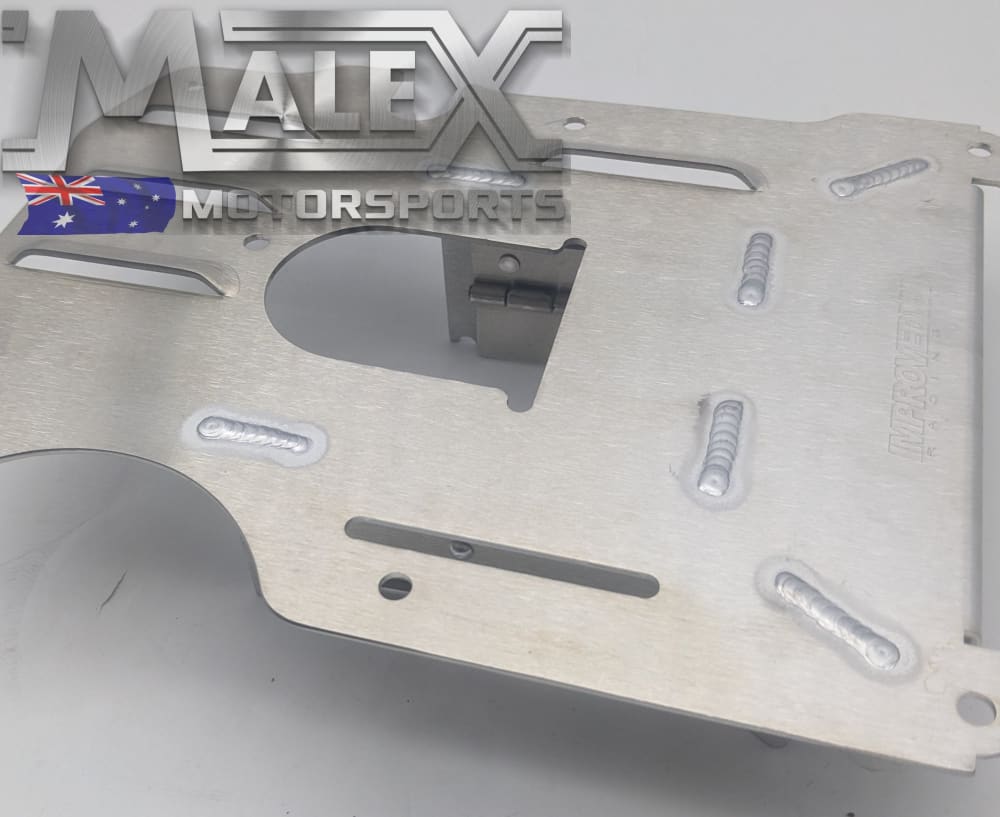

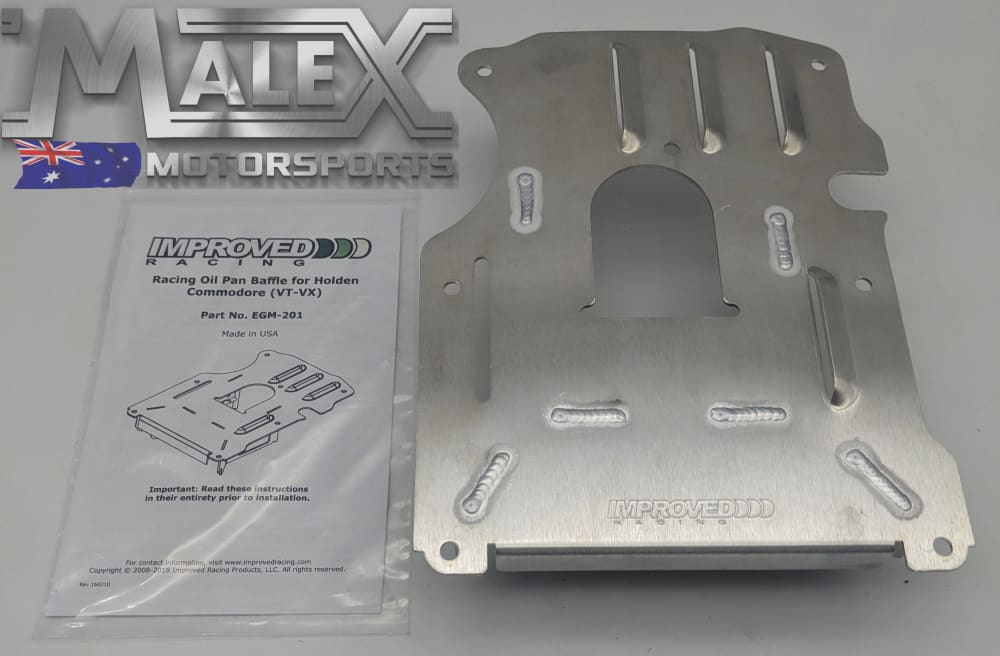

Improved Racing Holden VT-VX Commodore Racing Oil Pan Baffle

This oil pan baffle is designed for use in the front sump oil pan, GM part # 12561541 or 12561542, used only in the Australian Holden Commodore and Monaro vehicles built between 1997 and 2002.

-Designed for use in the front sump oil pan
-Track-proven to prevent oil starvation at up to 1.4 sustained lateral G's
-100% bolt in, no welding necessary.
-Light-weight aluminum construction

Features and Benefits

  • Track-proven to prevent oil starvation at up to 1.4 sustained lateral G's

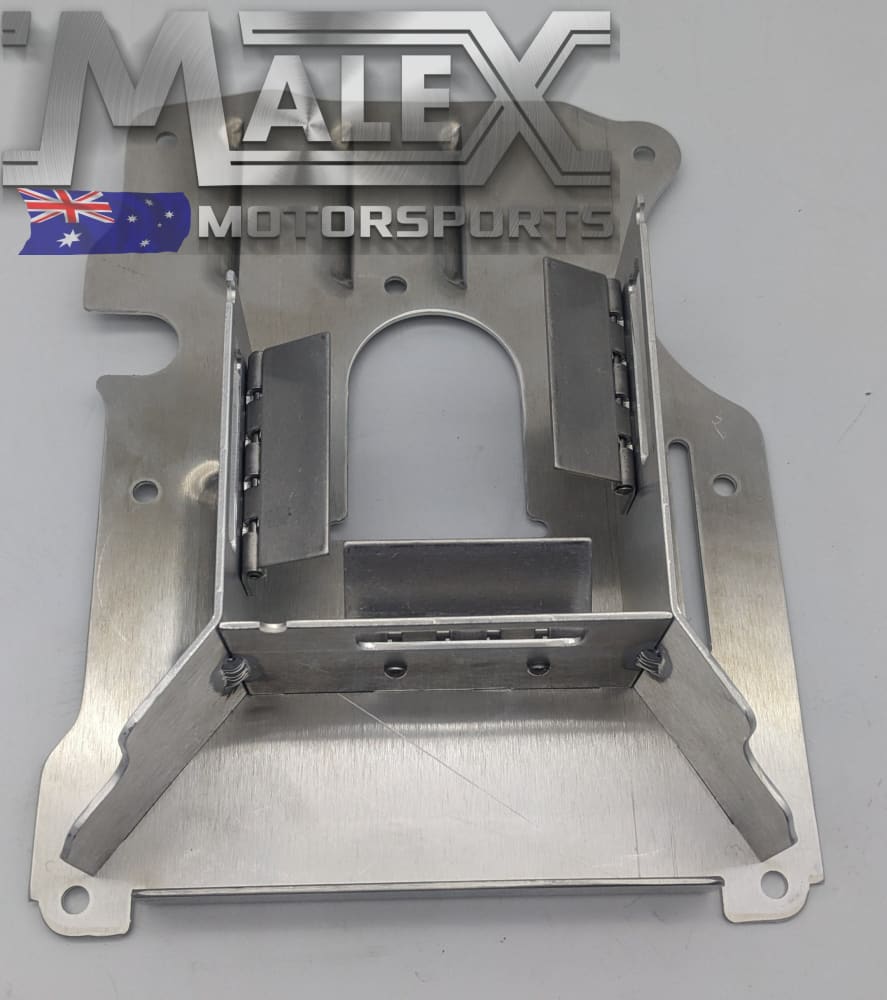

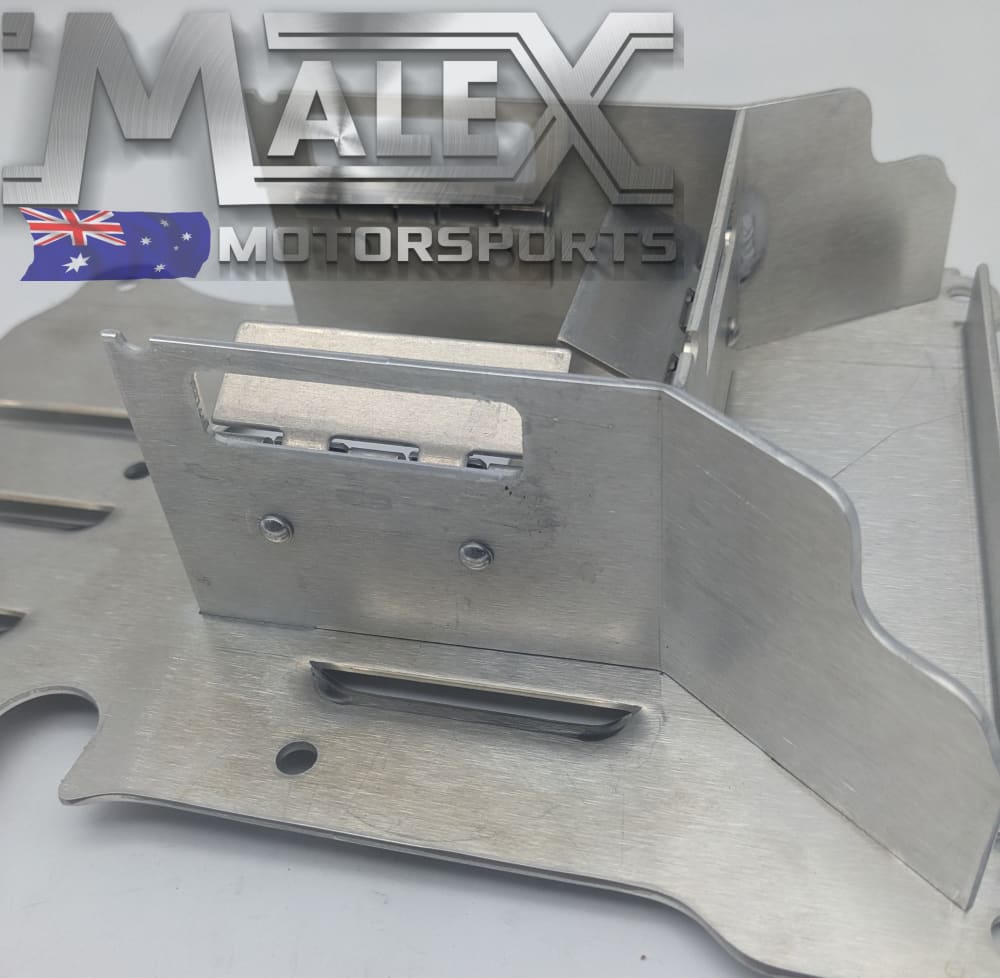

  • Directional trap door baffling completely encloses the oil pump pickup for maximum protection against oil starvation at high Gs
  • 100% bolt in, no welding necessary. This is a direct bolt-in replacement for the stock steel baffle in the stock oil pan
  • Baffle plate with drain-back guides and drain-back slots help accelerate return of oil to the bottom of the sump while also preventing oil slosh and reducing oil consumption
  • Reduces the risk of oil starvation when oil levels are low
  • Works with the factory cast aluminum oil pan, which is considered a structural member of the engine block and is less prone to failure or leaking than aftermarket sheet metal pans
  • Light-weight aluminum construction sheds 1.3lbs over the factory baffle
  • Solid body aircraft rivets employed for securing trap doors
  • Made in the USA

Applications

This product is designed for direct installation in the following vehicles:

  • 1997-2000 Holden Commodore VT Series II, 5.7L V8 (LS1)
  • 2000-2002 Holden Commodore VX, 5.7L V8 (LS1)
  • GM oil pan part # 12561541, casting number 12561542
  • Here at Malex Motorsports all of our items are in stock in our Sydney based store, ready to ship or pick up.
  • NOW IN SMEATON GRANGE!
