Description

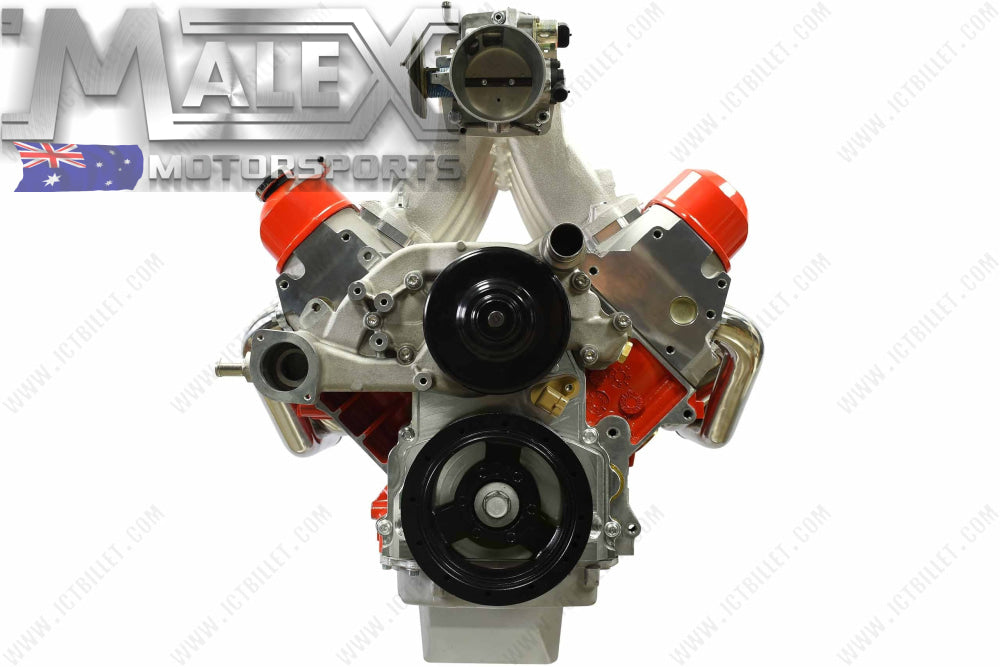

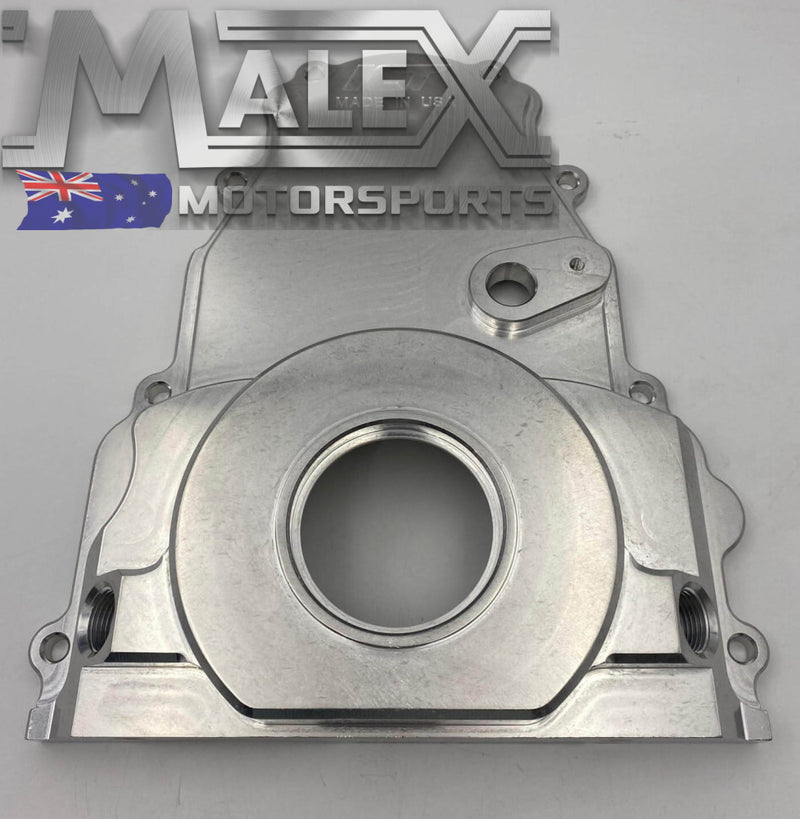

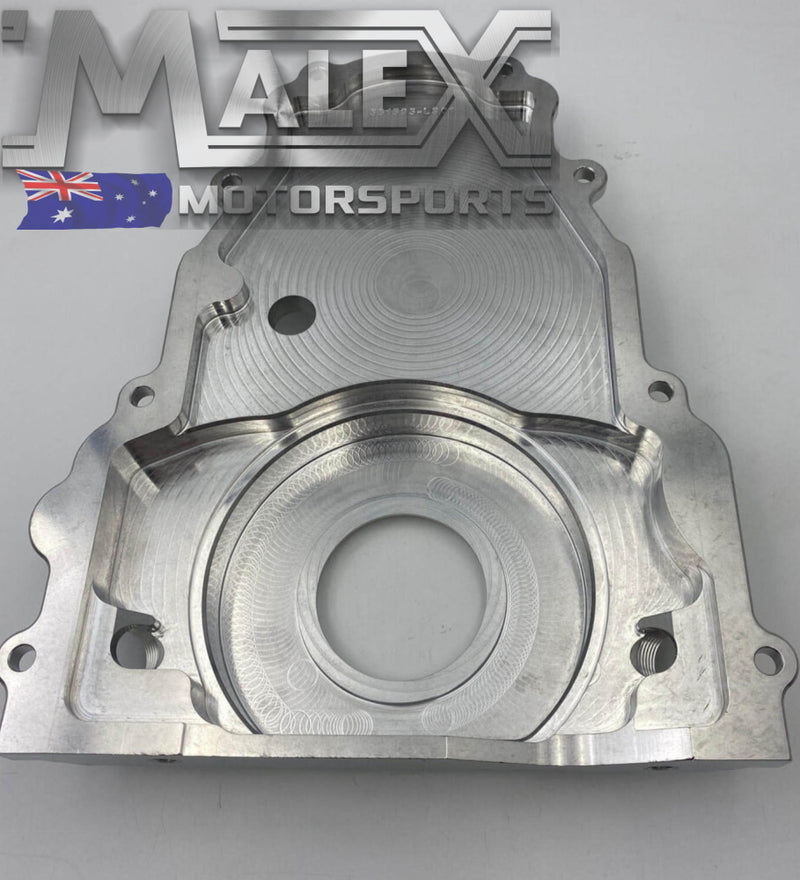

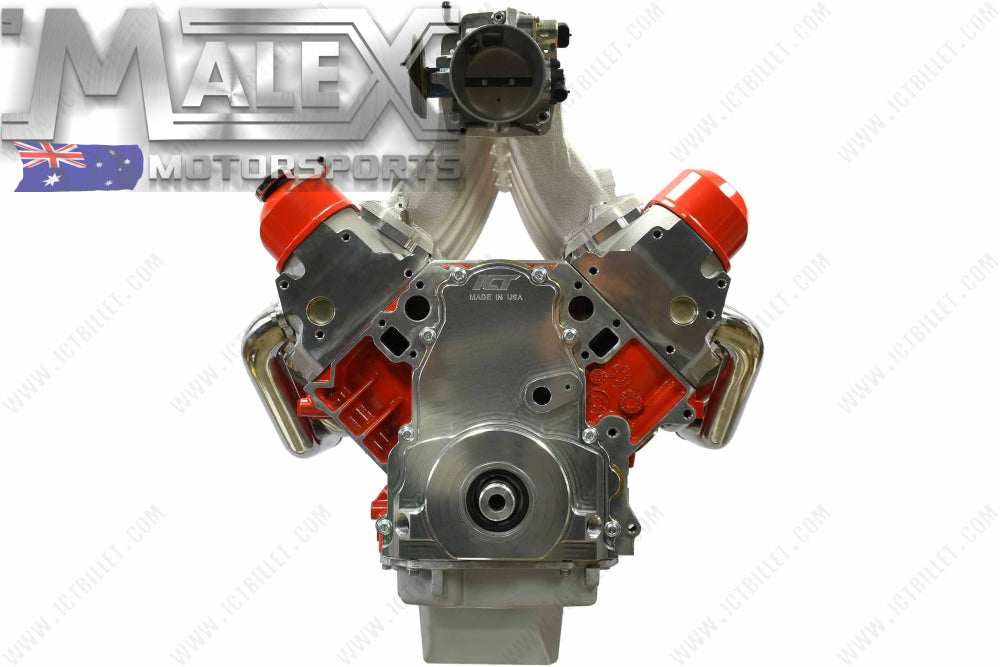

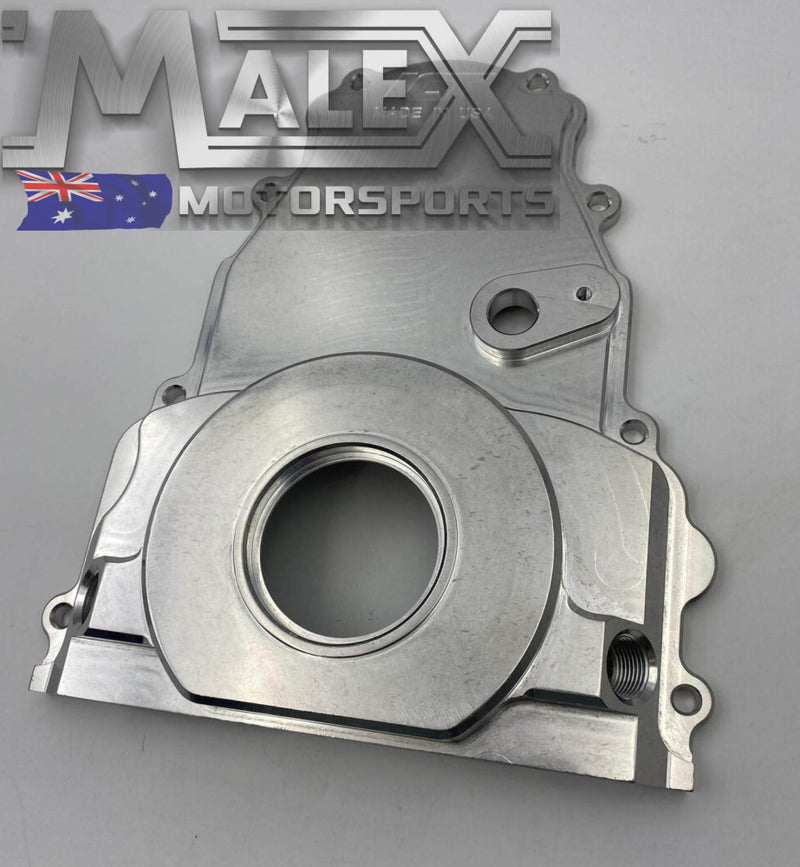

Billet Gen IV LS Timing Chain Cover w/ Twin -10AN Turbo Oil Returns

This US made timing cover is designed to work with high mounted accessories due to the oil drain ports.

Comes with mounting bolts.

Has clearance for double row timing chains.



Compatible with Gen IV GM LS series engines

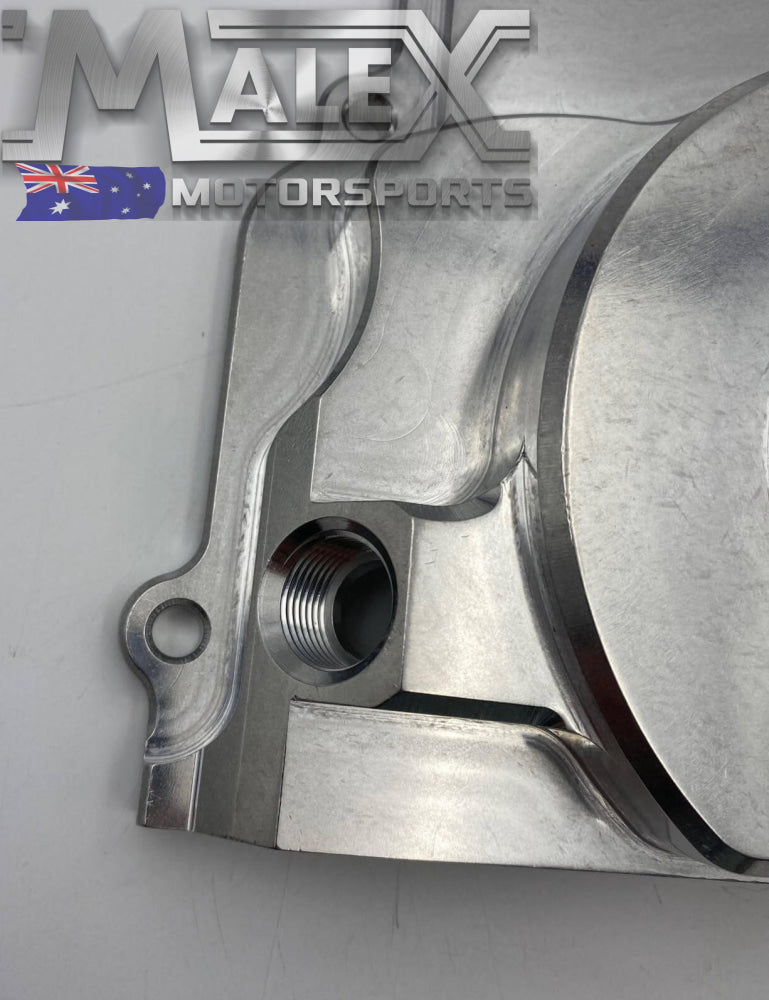

  • Low profile angled -10AN ORB ports for clearance on Corvette, GTO, Camaro, and Truck balancers

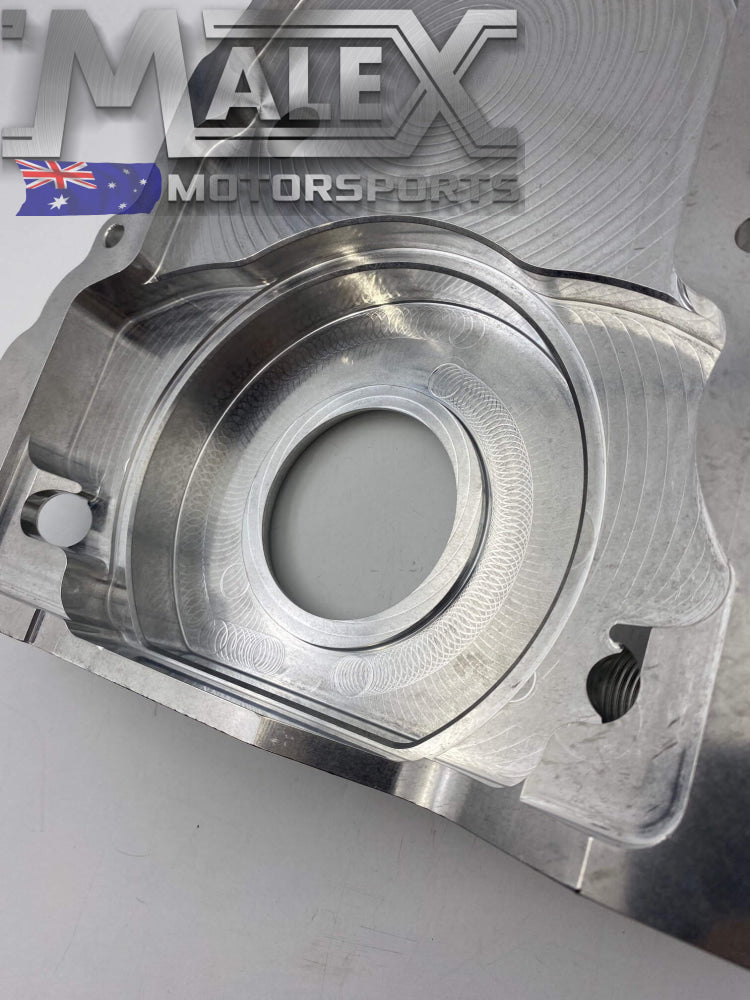

  • Fits with double row timing chains, factory gasket and crank seal
  • Package includes: timing cover and bolts. (Does not come with gaskets or crank seal)

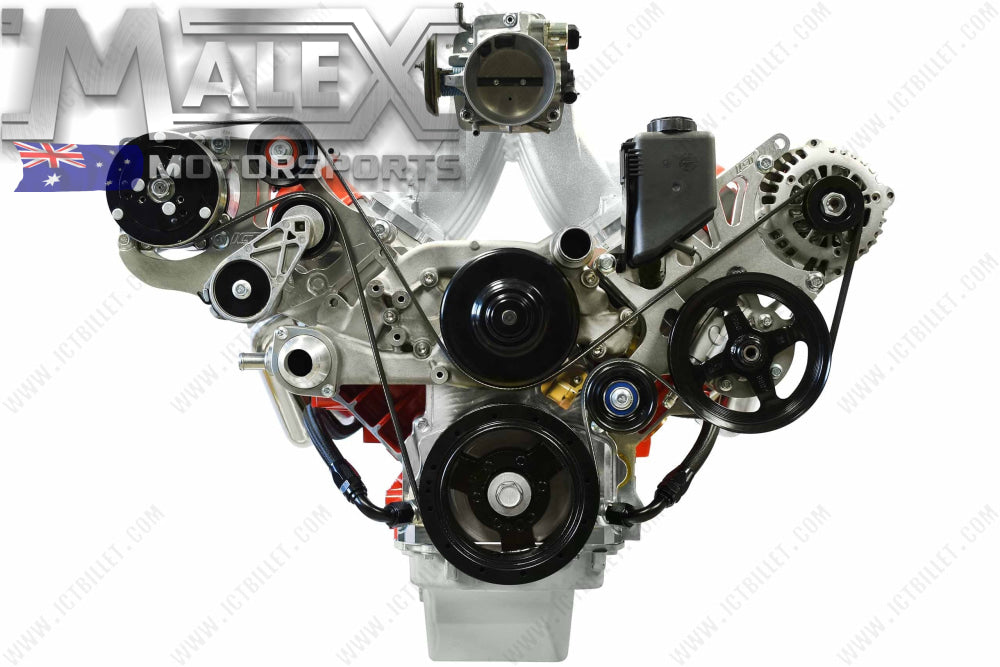

  • Does not fit with accessory bracket applications using engine block lower bolt locations (see photo). Will require the use of one fitting on the opposing side or high mount accessories
  • This timing cover will NOT work with factory LS A/C compressors in the factory low passenger side location.

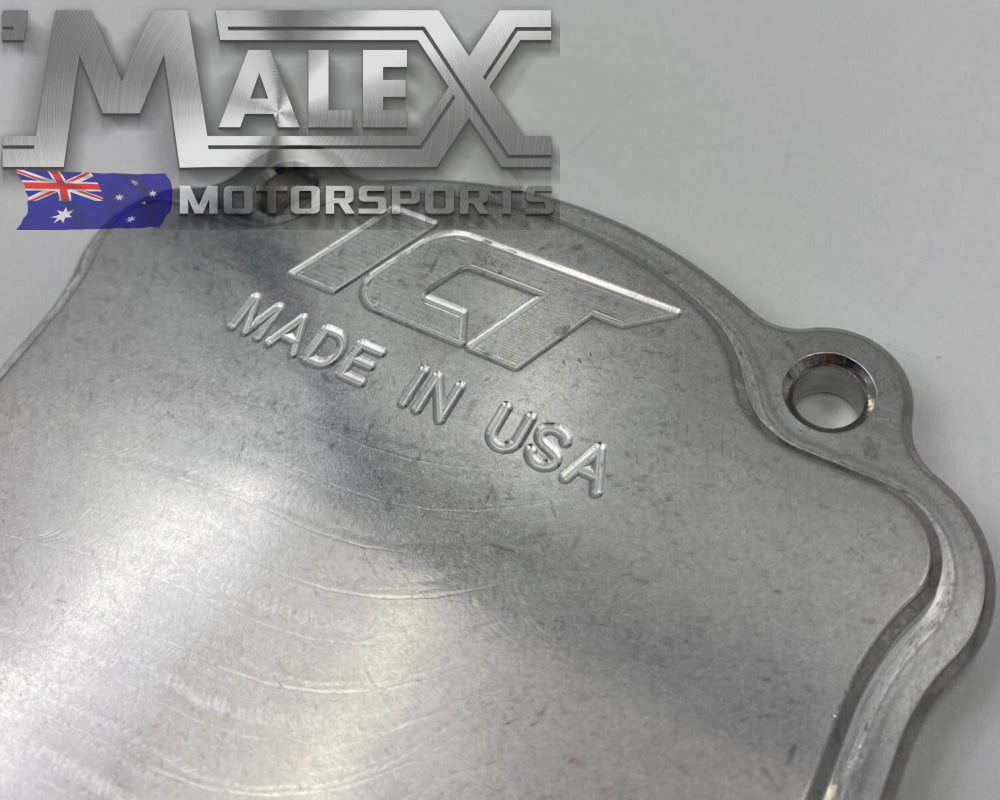

  • Made in Wichita, Kansas From Aerospace Grade, USA Produced, Billet Aluminium
  • For the tightest fitment, we recommend using Fragola 90 degree fitting part number FRA-499210-BL
  • Due to close clearance of fittings and accessories this cover is not compatible with part numbers 551527X-3, 551667EWP-1,551137-LS74-1, 551667-1, 551177-1, 551177-3, 551777 and 551747



  • Here at Malex Motorsports all of our items are in stock in our Sydney based store, ready to ship or pick up.
  • NOW IN SMEATON GRANGE!
