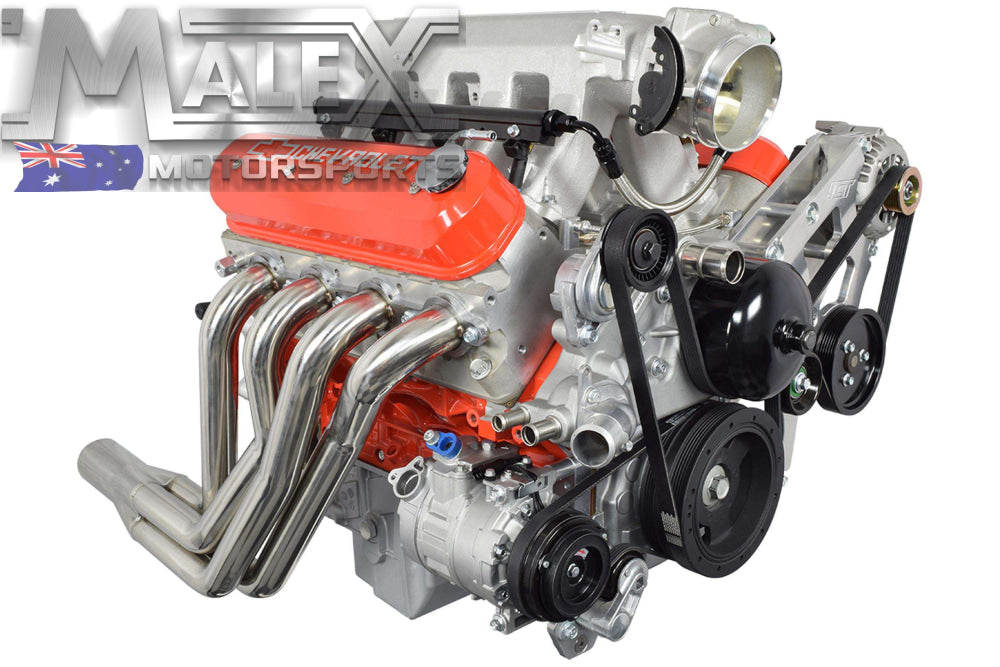

LS BMW 330i E46 Swap Alternator & Power Steering Bracket Kit LS1 L98 LS3 VE-VF Offset

SKU: A5-551796-1
Ls Bmw 330I E46 Swap Alternator & Power Steering Bracket Kit Ls1 L98 Ls3 Ve-Vf Offset Accessory
Ls Bmw 330I E46 Swap Alternator & Power Steering Bracket Kit Ls1 L98 Ls3 Ve-Vf Offset Accessory
Ls Bmw 330I E46 Swap Alternator & Power Steering Bracket Kit Ls1 L98 Ls3 Ve-Vf Offset Accessory
Ls Bmw 330I E46 Swap Alternator & Power Steering Bracket Kit Ls1 L98 Ls3 Ve-Vf Offset Accessory
Ls Bmw 330I E46 Swap Alternator & Power Steering Bracket Kit Ls1 L98 Ls3 Ve-Vf Offset Accessory
Ls Bmw 330I E46 Swap Alternator & Power Steering Bracket Kit Ls1 L98 Ls3 Ve-Vf Offset Accessory
Ls Bmw 330I E46 Swap Alternator & Power Steering Bracket Kit Ls1 L98 Ls3 Ve-Vf Offset Accessory
Ls Bmw 330I E46 Swap Alternator & Power Steering Bracket Kit Ls1 L98 Ls3 Ve-Vf Offset Accessory
Ls Bmw 330I E46 Swap Alternator & Power Steering Bracket Kit Ls1 L98 Ls3 Ve-Vf Offset Accessory
Ls Bmw 330I E46 Swap Alternator & Power Steering Bracket Kit Ls1 L98 Ls3 Ve-Vf Offset Accessory
Ls Bmw 330I E46 Swap Alternator & Power Steering Bracket Kit Ls1 L98 Ls3 Ve-Vf Offset Accessory
Ls Bmw 330I E46 Swap Alternator & Power Steering Bracket Kit Ls1 L98 Ls3 Ve-Vf Offset Accessory
Ls Bmw 330I E46 Swap Alternator & Power Steering Bracket Kit Ls1 L98 Ls3 Ve-Vf Offset Accessory
Ls Bmw 330I E46 Swap Alternator & Power Steering Bracket Kit Ls1 L98 Ls3 Ve-Vf Offset Accessory
Ls Bmw 330I E46 Swap Alternator & Power Steering Bracket Kit Ls1 L98 Ls3 Ve-Vf Offset Accessory
Ls Bmw 330I E46 Swap Alternator & Power Steering Bracket Kit Ls1 L98 Ls3 Ve-Vf Offset Accessory

LS BMW 330i E46 Swap Alternator & Power Steering Bracket Kit LS1 L98 LS3 VE-VF Offset

SKU: A5-551796-1
/
  • Secure payments
  • In stock, ready to ship
  • Inventory on the way
Tax included.
Description

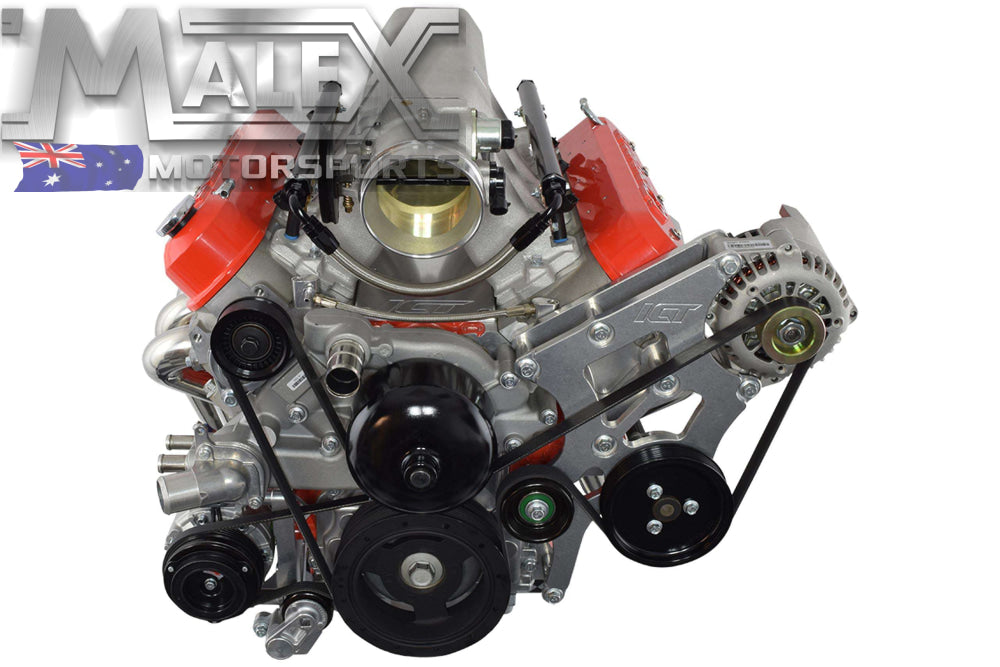

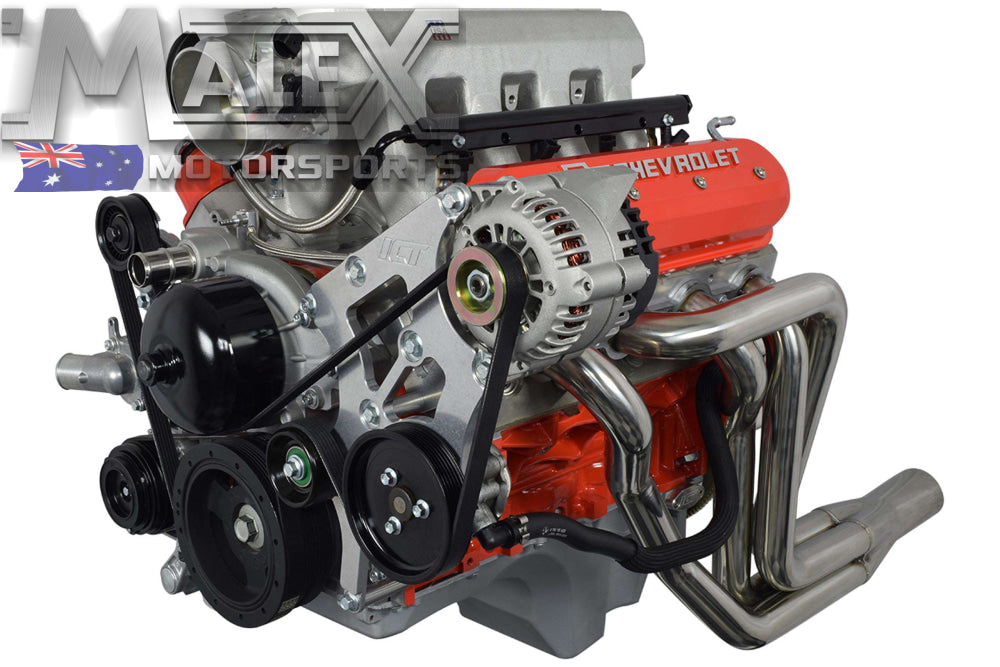

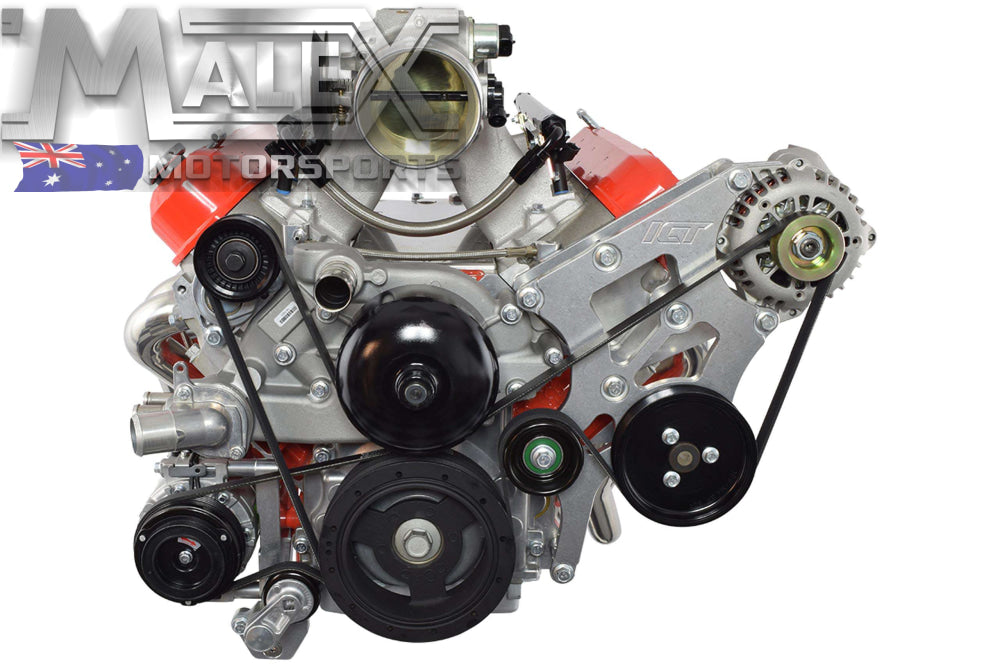

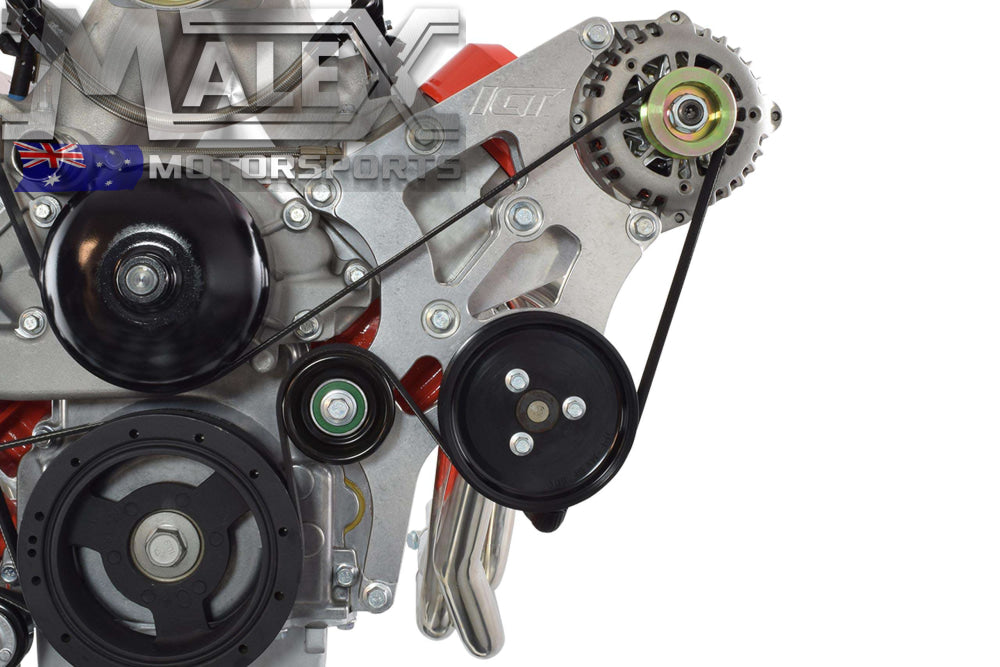

LS BMW 330i E46 Swap Alternator and Power Steering Bracket Kit 551796-1

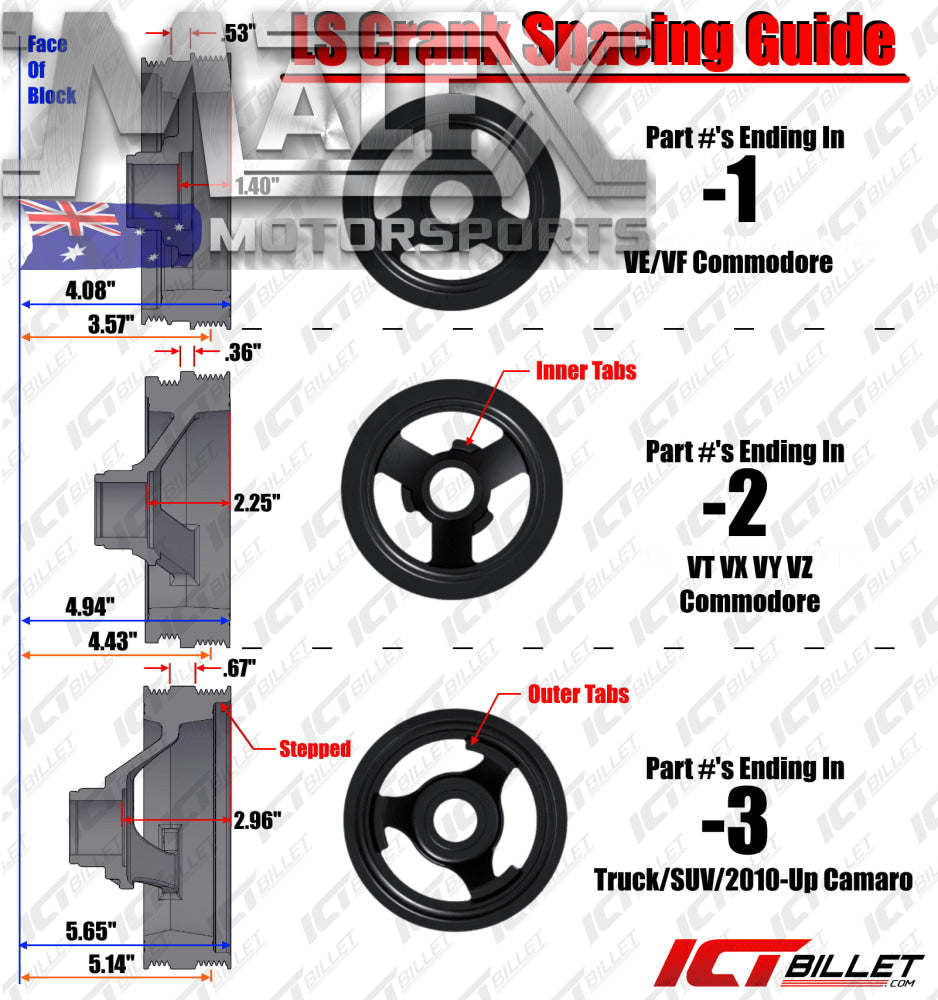

  • This kit uses VE-VF Commodore crank pulley (ICT # BAL100)

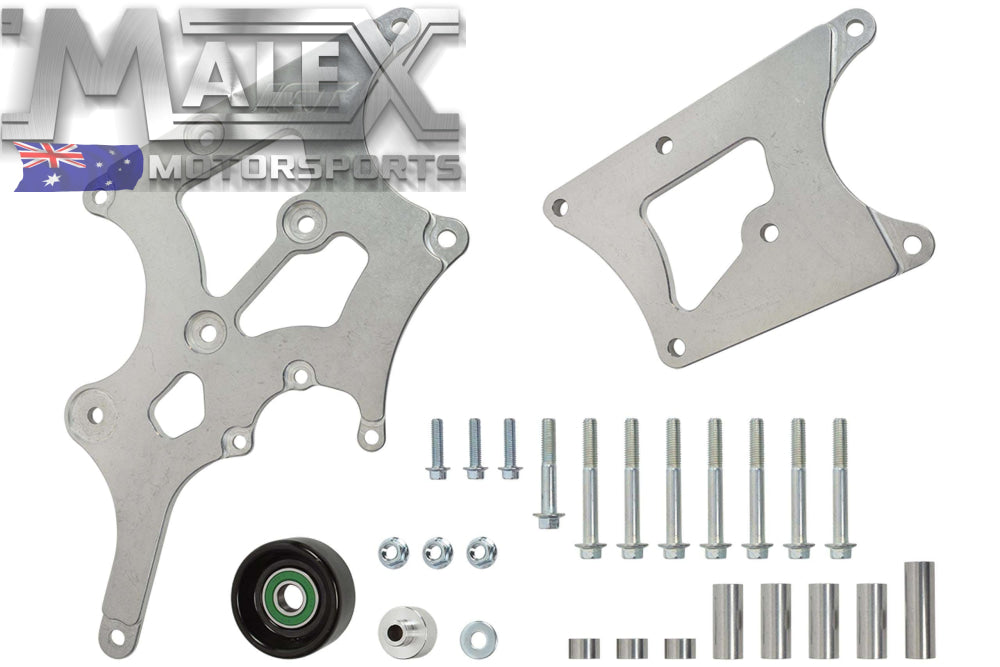

  • Includes: bracket, idler pulley, and mounting hardware
  • Can be used with standard (105amp) or high amp (145/160amp) LS Style alternators.
  • Compatible with a factory BMW 323/325/328/330 E46 power steering pump and pulley. (19319300 & 32421740858)
  • If needing to extend your alternator harness connection, use ICT# WEALT30-36 (4-pin) or WEALT40-36 (2-pin)
  • Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminum

 Belt length with standard (105amp) or high amp 145/160amp) alternators: 815K6 (81.5inch)
