PRW - LS Flexplate w/ Bolts LS1 TH400 TH350 700R4 Swap Flywheel SFI 10.75" 11.06

SKU: D8-551346-1834600
Prw - Ls Flexplate W/ Bolts Ls1 Th400 Th350 700R4 Swap Flywheel Sfi 10.75 11.06 Flex Plate
Prw - Ls Flexplate W/ Bolts Ls1 Th400 Th350 700R4 Swap Flywheel Sfi 10.75 11.06 Flex Plate
Prw - Ls Flexplate W/ Bolts Ls1 Th400 Th350 700R4 Swap Flywheel Sfi 10.75 11.06 Flex Plate
Prw - Ls Flexplate W/ Bolts Ls1 Th400 Th350 700R4 Swap Flywheel Sfi 10.75 11.06 Flex Plate
Prw - Ls Flexplate W/ Bolts Ls1 Th400 Th350 700R4 Swap Flywheel Sfi 10.75 11.06 Flex Plate
Prw - Ls Flexplate W/ Bolts Ls1 Th400 Th350 700R4 Swap Flywheel Sfi 10.75 11.06 Flex Plate

PRW - LS Flexplate w/ Bolts LS1 TH400 TH350 700R4 Swap Flywheel SFI 10.75" 11.06

SKU: D8-551346-1834600
/
  • Secure payments
  • In stock, ready to ship
  • Inventory on the way
Tax included.
Description

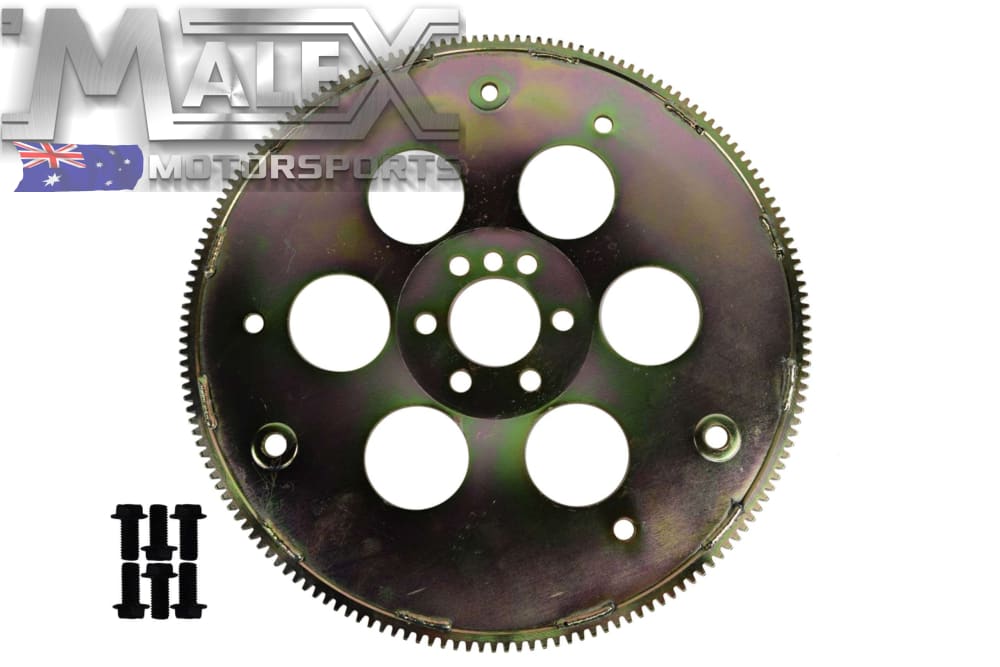

LS Heavy Duty Steel Flex Plate



  • SFI 29.1 certified
  • .035 inch thicker than factory flex plate
  • Includes 10.75" & 11.06 torque converter bolt patterns.
  • Compatible with Powerglide, TH400, TH350, 700R4, 4L60e transmissions for LS series engines
  • 168 teeth. 0.210" thick steel construction
  • Will require torque converter spacer part number 551165 for NON LS transmissions
  • Includes: 1 flex plate, 6 flex plates bolts
     Common torque converter bolt patterns: 10.75" fits Powerglide, TH350, 2004R, 700R4, 4L60, (SBC & Non LS with 4L60E), 11.06 (LS & 4L60E with LS engine), and 11.5"(TH400 & 4L80E)
   (Will not fit 1999-2000 6.0L engines or LSA/LS9 (8 bolt flywheel).  These years have extended length crankshaft flange and will NOT fit.)
