Mahle 4.005 Bore 4.000 Stroke 6.125 Rod -25cc LS2 L98 6.0 Forged Pistons and Rings 2618

SKU: 930225505
Mahle 4.030 Bore 4.000 Stroke 6.125 Rod -14cc LS2 L98 6.0 Forged Pistons and Rings 2618 Pistons
Mahle 4.005 Bore 4.000 Stroke 6.125 Rod -25cc LS2 L98 6.0 Forged Pistons and Rings 2618 - 4.005
Mahle 4.005 Bore 4.000 Stroke 6.125 Rod -25cc LS2 L98 6.0 Forged Pistons and Rings 2618 - 4.005
Mahle 4.005 Bore 4.000 Stroke 6.125 Rod -25cc LS2 L98 6.0 Forged Pistons and Rings 2618 - 4.005
Mahle 4.005 Bore 4.000 Stroke 6.125 Rod -25cc LS2 L98 6.0 Forged Pistons and Rings 2618 - 4.005
Mahle 4.005 Bore 4.000 Stroke 6.125 Rod -25cc LS2 L98 6.0 Forged Pistons and Rings 2618 - 4.005
Mahle 4.005 Bore 4.000 Stroke 6.125 Rod -25cc LS2 L98 6.0 Forged Pistons and Rings 2618 - 4.005

Mahle 4.005 Bore 4.000 Stroke 6.125 Rod -25cc LS2 L98 6.0 Forged Pistons and Rings 2618

SKU: 930225505
Regular price $1,495.00
/
  • Secure payments
  • Low stock - 2 items left
  • Inventory on the way
Tax included.
Description

Mahle Motorsport Powerpak LS Forged Pistons 2618 Low silicon material 930225505

Suits ls2, L98 L76 LY6 4.005" bore 4"stroke.  403Ci stroker 25cc dish suit Boost

Includes premium Mahle Performance low drag ring set (1.0,1.0,2.0mm file fit)

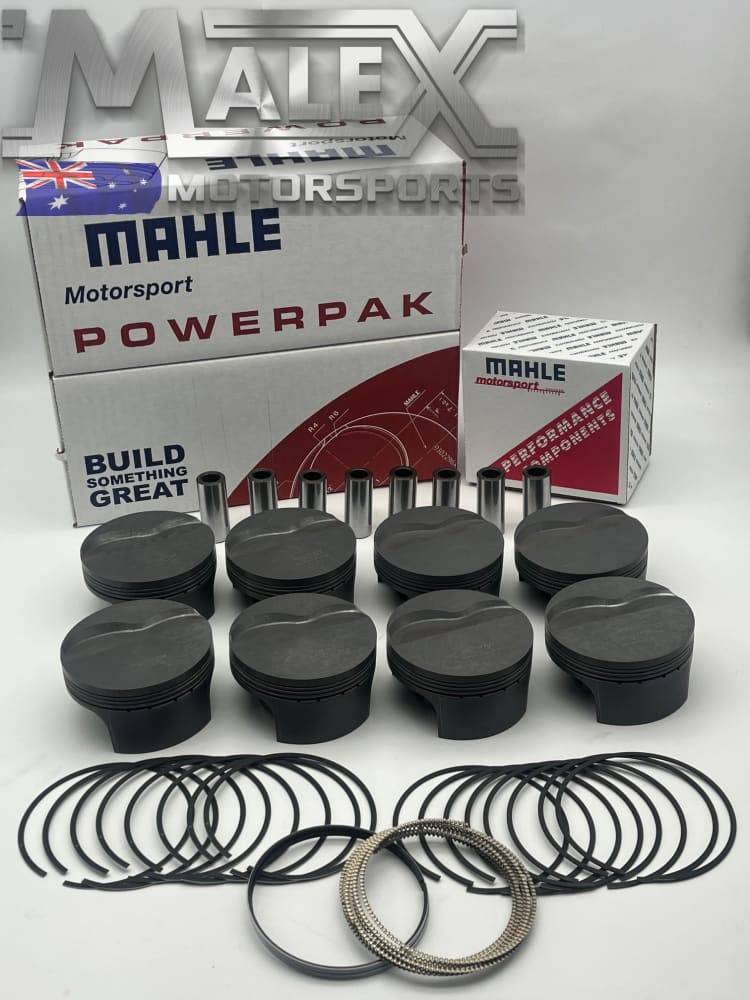

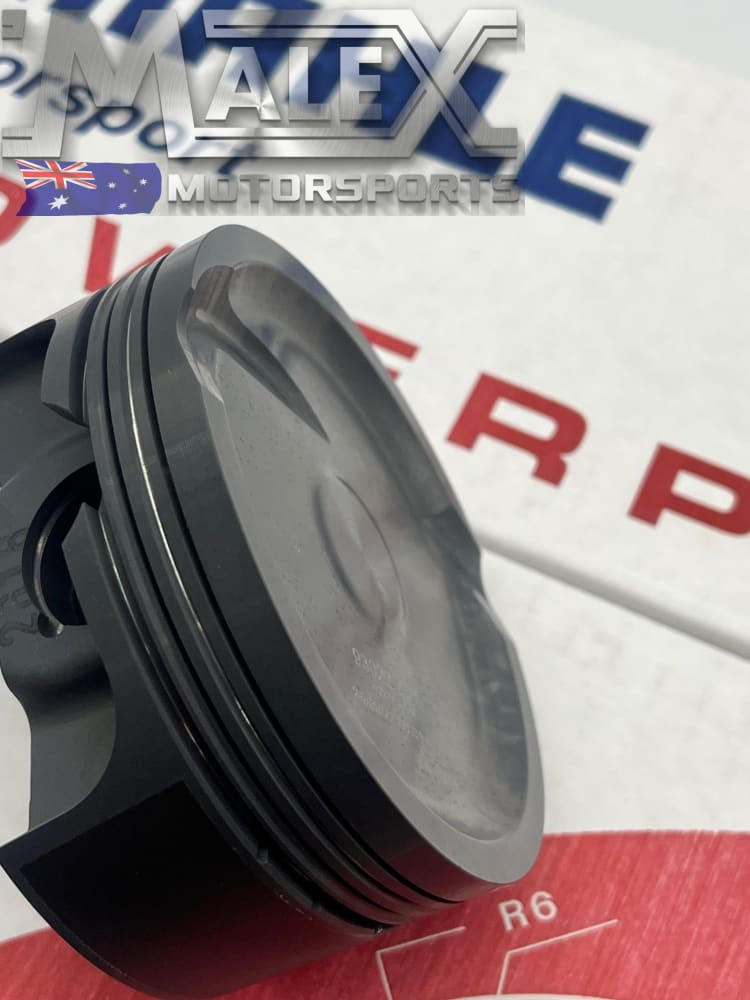

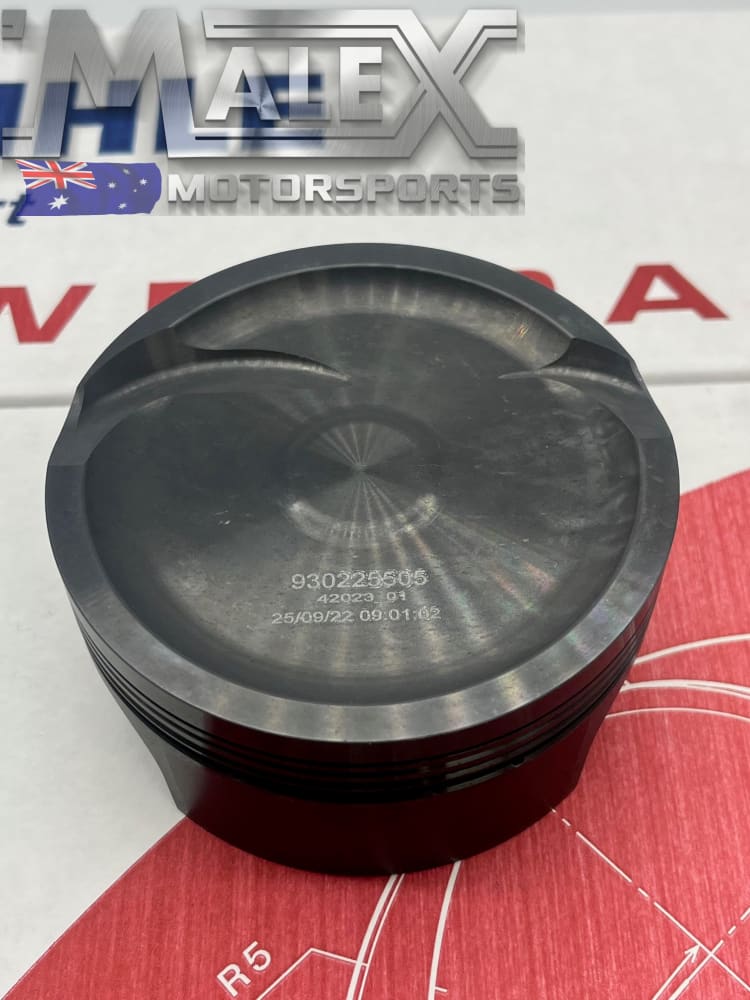

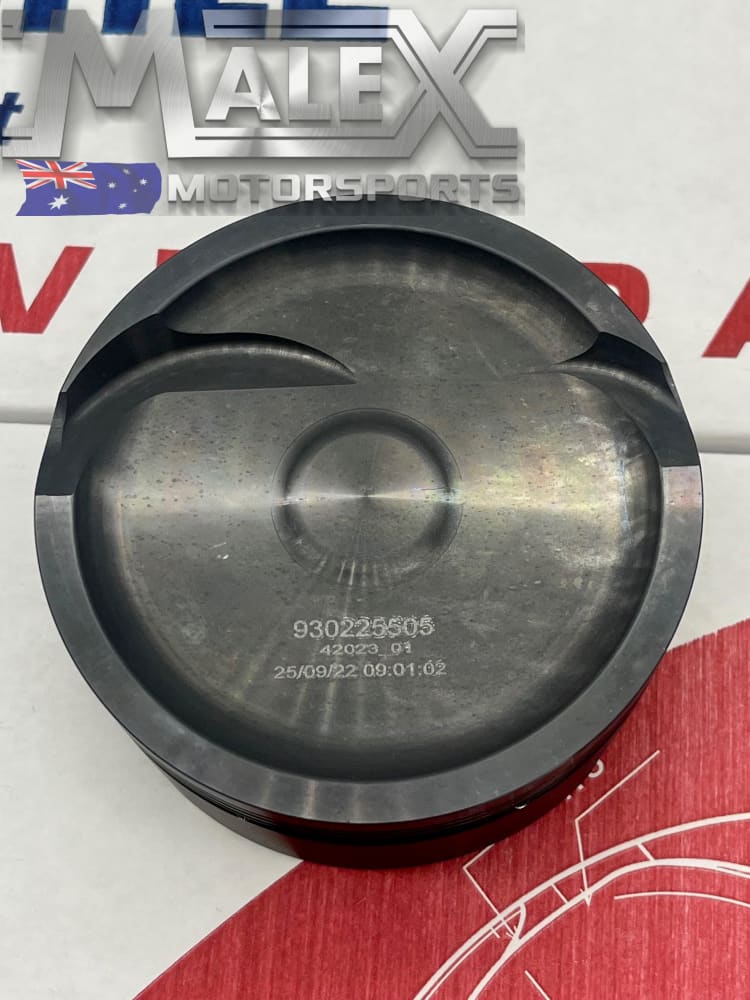

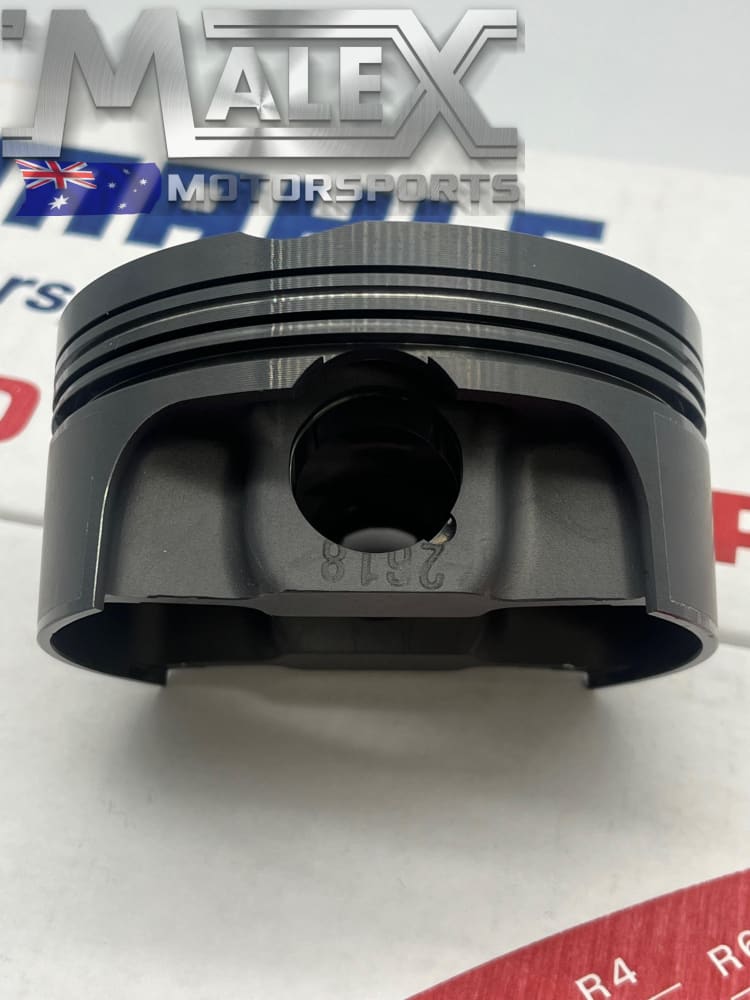

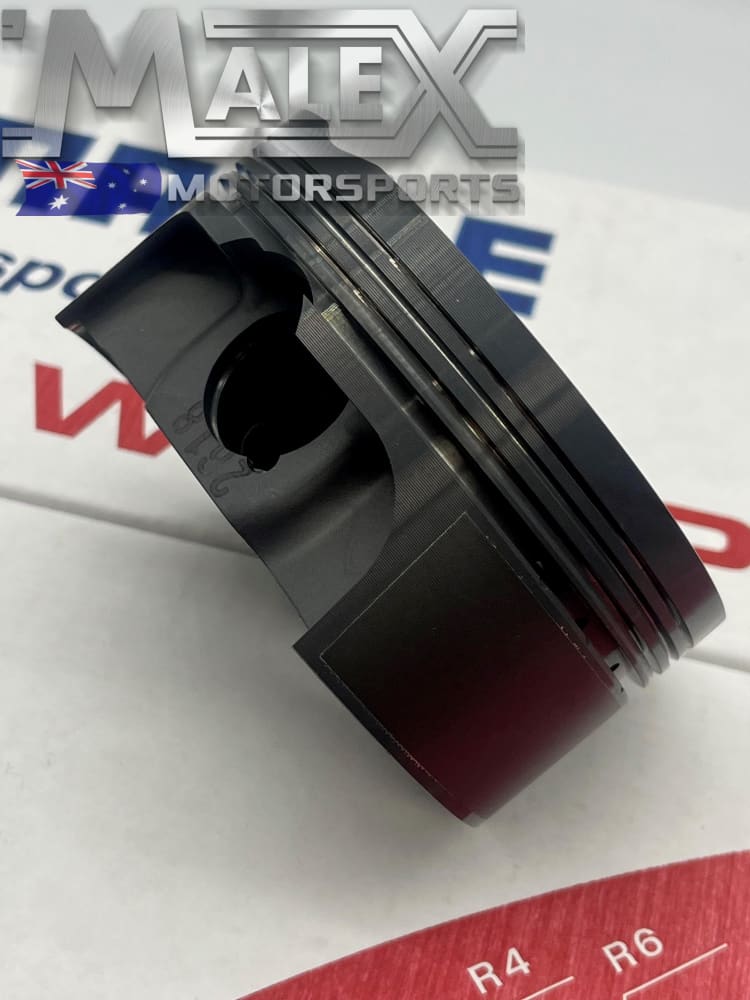

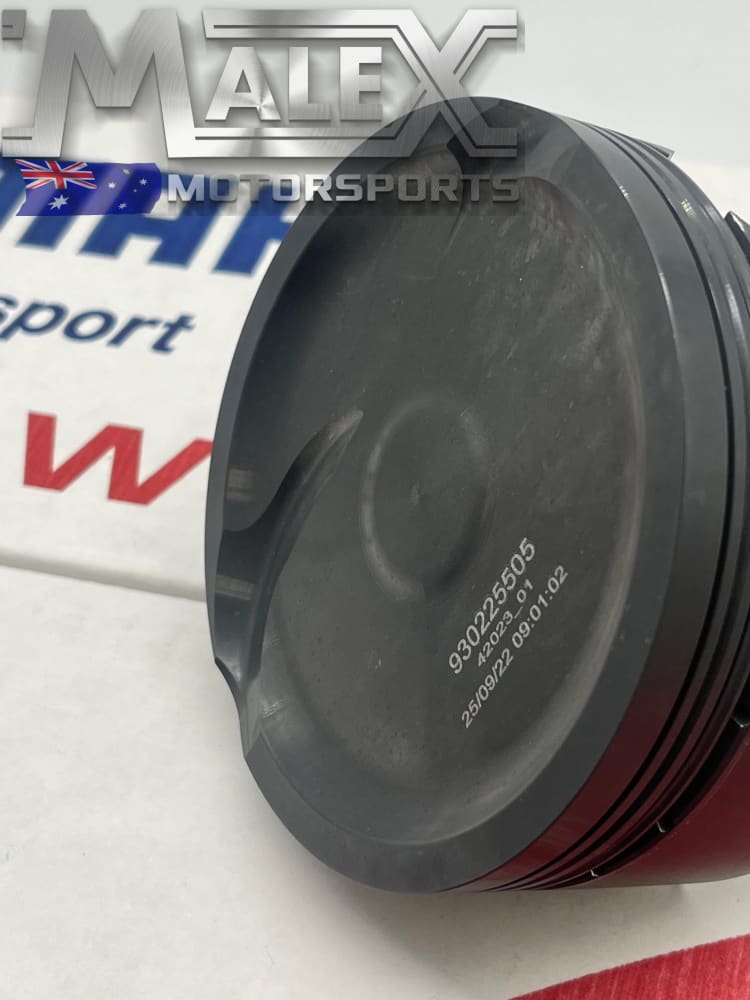

First photo is generic. Use single piston photos for reference.

Listing is for a full set with rings

BORE

4.005"

STROKE

4.000"

ROD

6.125"

COMP HEIGHT

1.110"

PIN DIAMETER

0.927"

VOLUME

25cc Dish

WEIGHT

402G

MATERIAL

2618 Low Silicon

COMPRESSION RATIO

62cc head=9.6

65cc head=9.4

71cc head=8.9

2618 Alloy has a low silicon content. 2618 alloy has a greater expansion rate but is higher strength and more resistant to harsh conditions. Because of the greater clearance required 2618 pistons can be noisy on start up but will go away when operating temperature is reached

     4032 Alloy has a higher silicon content. Still a great forged piston for power applications but less forgiving to detonation. Because of the lower expansion rate you generally run a tighter clearances which generally makes for a quieter engine. Great for street performance engines and owners who are looking for OE quiet operation and still able to handle power add-ons.

If you need any help finding the right piston for your build contact us Mon-Fri 8-4

  • Here at Malex Motorsports all of our items are in stock in our Sydney based store, ready to ship or pick up.
