GM - LS Conversion Swap Muscle Car Oil Sump Pan LS1 LS2 LS3 L98 L77 L76 LSX ICT Billet

SKU: A1-551107
GM - LS Conversion Swap Muscle Car Oil Pan LS1 LS2 LS3 LS6 LH6 LR4 LQ4 LQ9 LSX ICT Billet
LS Conversion Sump size comparison chart
GM - LS Conversion Swap Muscle Car Oil Sump Pan LS1 LS2 LS3 L98 L77 L76 LSX ICT Billet
GM - LS Conversion Swap Muscle Car Oil Pan LS1 LS2 LS3 LS6 LH6 LR4 LQ4 LQ9 LSX ICT Billet
LS Conversion Sump size comparison chart
GM - LS Conversion Swap Muscle Car Oil Sump Pan LS1 LS2 LS3 L98 L77 L76 LSX ICT Billet

GM - LS Conversion Swap Muscle Car Oil Sump Pan LS1 LS2 LS3 L98 L77 L76 LSX ICT Billet

SKU: A1-551107
/
  • Secure payments
  • In stock, ready to ship
  • Inventory on the way
Tax included.

LS Swap Oil Pan



Compatible with: All LS Series Engines except dry sump engines

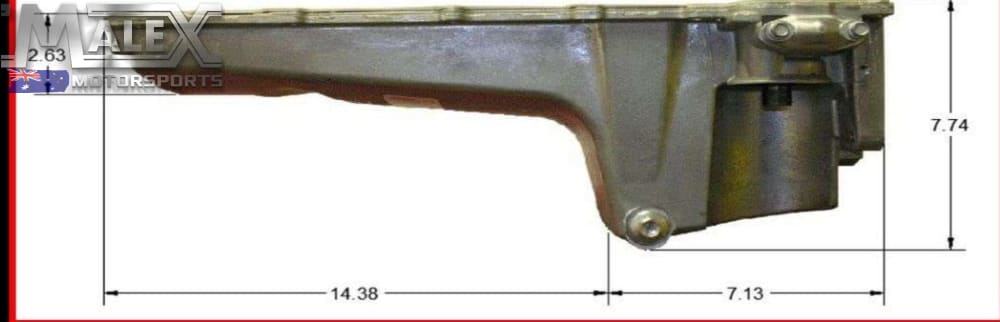

See photo for dimensions and size comparison



  • Shorter Pan Depth to provide frame and ground clearance

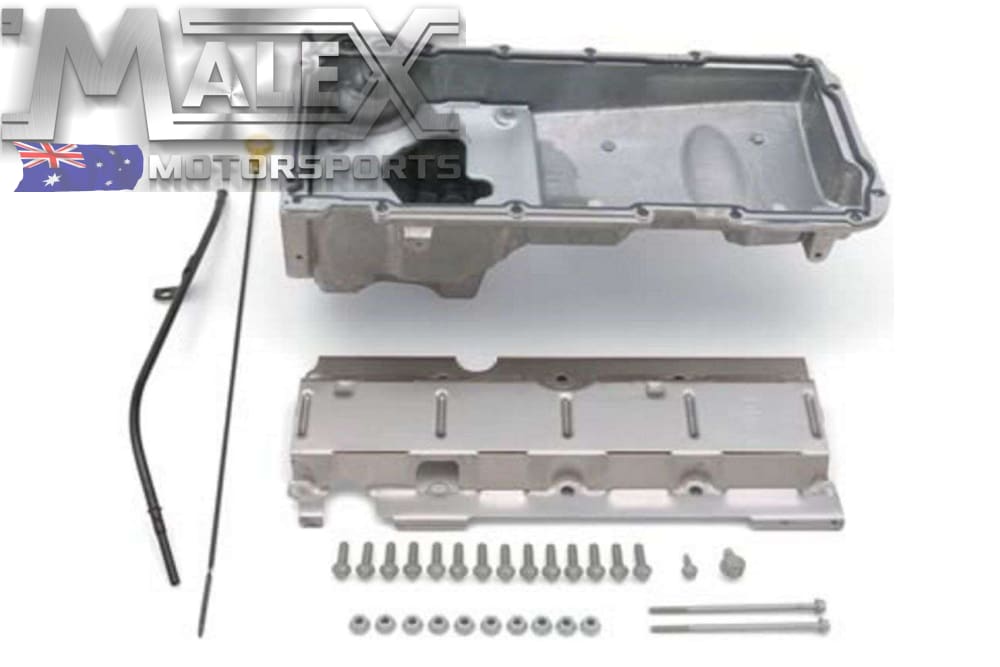

  • Includes the following
  1. Oil Pickup
  2. Oil Pan Gasket
  3. Drain Plug
  4. Windage Tray
  5. Oil Cooler Block Off
  6. Mounting Bolts
  7. Dipstick and Tube
  8. 5.0 quart oil capacity


 Uses oil filter AC Delco - PF48E (or any newer LS powered vehicle such as LS3 Camaro)

LM4 and LS1/LS2 GTO engines will be required to drill the engine block for the oil dipstick tube to be inserted
