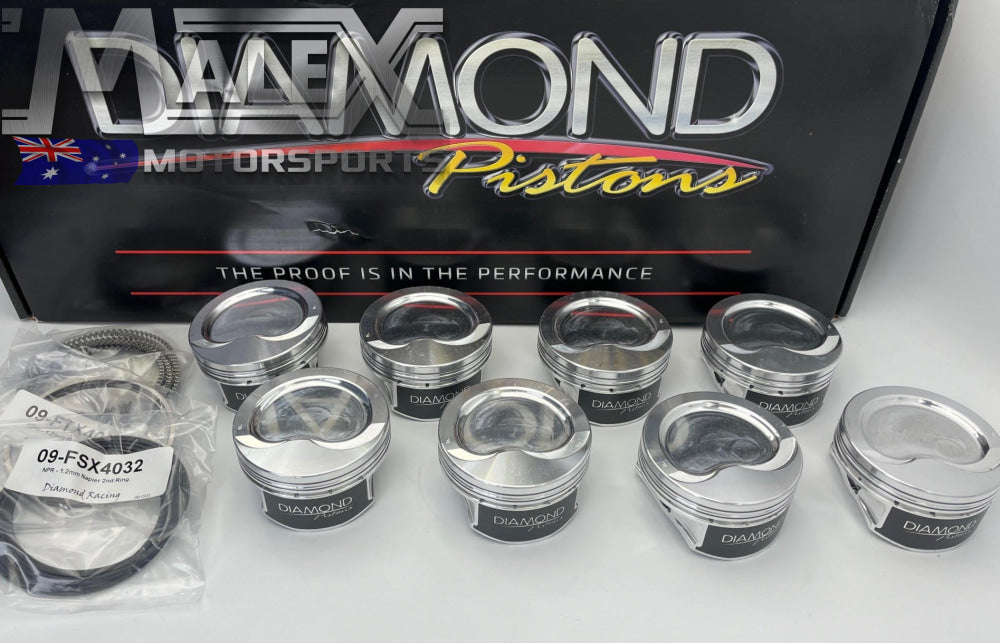

LS Forged Diamond Pistons 4.030 3.622 15cc Suit Boost 6.0L L98 LY6 Turbo

SKU: R3-11517R1
Forged Diamond Piston 4.030
Forged Diamond Piston 4.030
Forged Diamond Piston 4.030
Forged Diamond Piston 4.030
Forged Diamond Piston 4.030

LS Forged Diamond Pistons 4.030 3.622 15cc Suit Boost 6.0L L98 LY6 Turbo

SKU: R3-11517R1
Regular price $2,195.00
/
  • Secure payments
  • Low stock - 1 item left
  • Inventory on the way
Tax included.
Description

Made in the USA.

Diamond Pistons are considered one of the best in the performance industry.

LS Competition Series

This Diamond forged piston set is ideal for 6.0 LS blocks with a standard stroke running boost. With 68cc (l98 ls3) heads the compression ratio will be approx 9.2:1. (Machining and Head gasket thickness, head cc and or changing other components may alter compression ratio.)

BORE:  4.030   STROKE: 3.622  ROD LENGTH: 6.125  COMP HEIGHT:  1.304

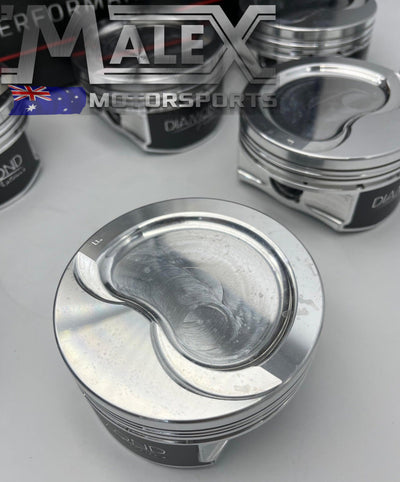

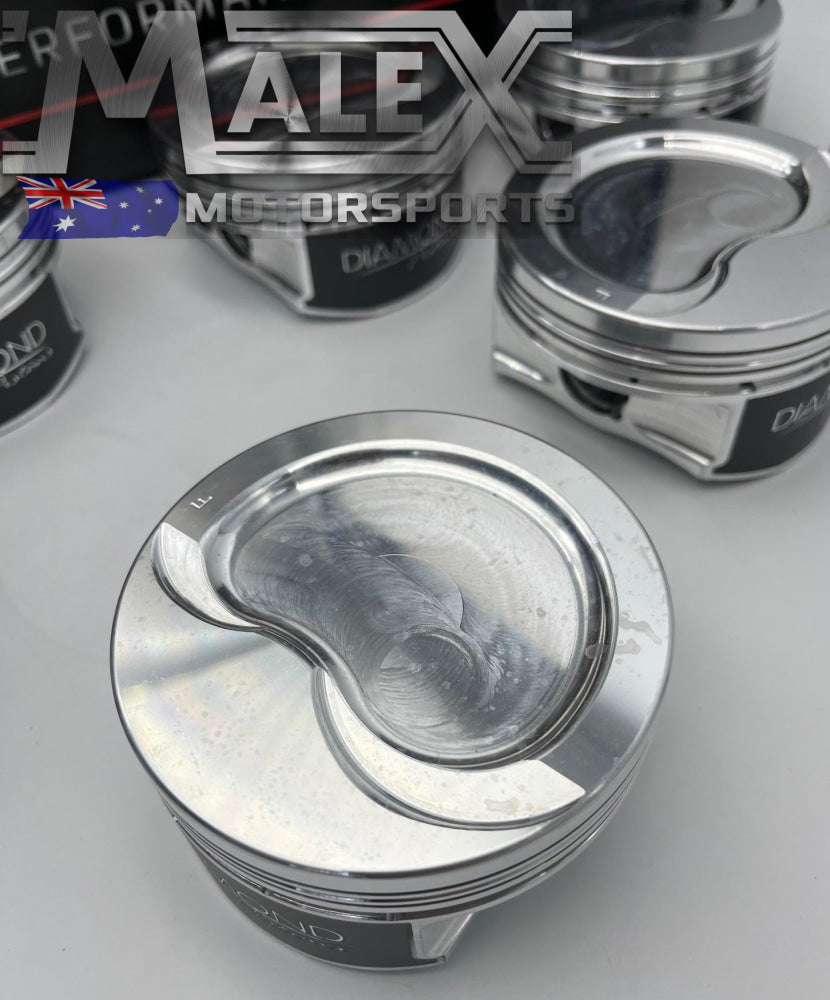

15cc Dish.

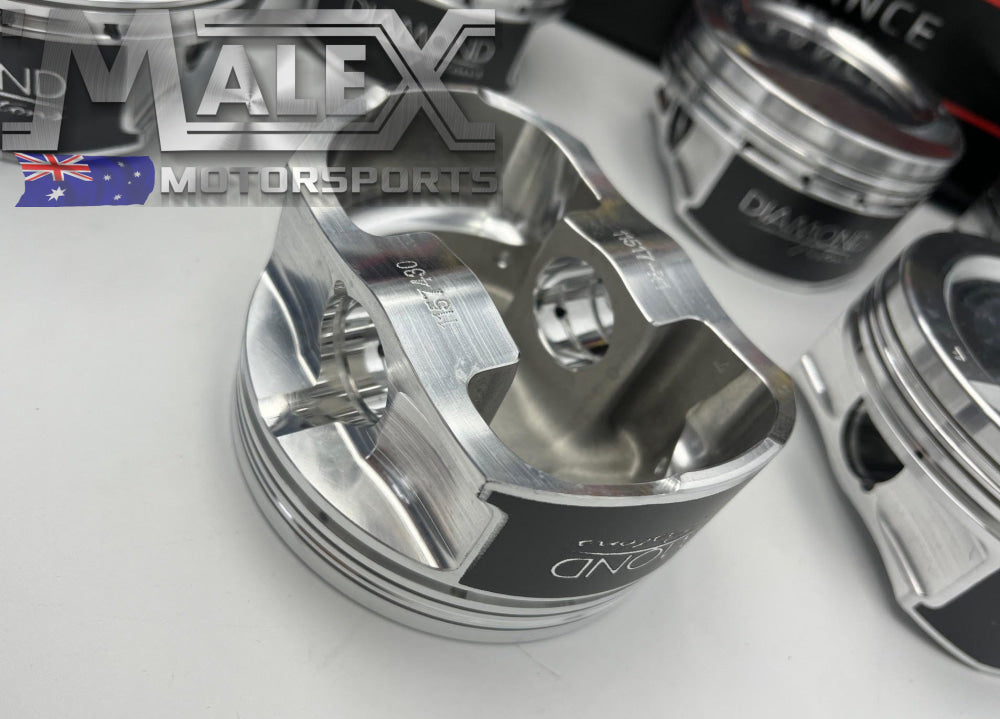

Pin .927   Pin offset .04 Weight 455 Grams

  • Here at Malex Motorsports all of our items are in stock in our Sydney based store, ready to ship or pick up.
  • NOW IN SMEATON GRANGE!
