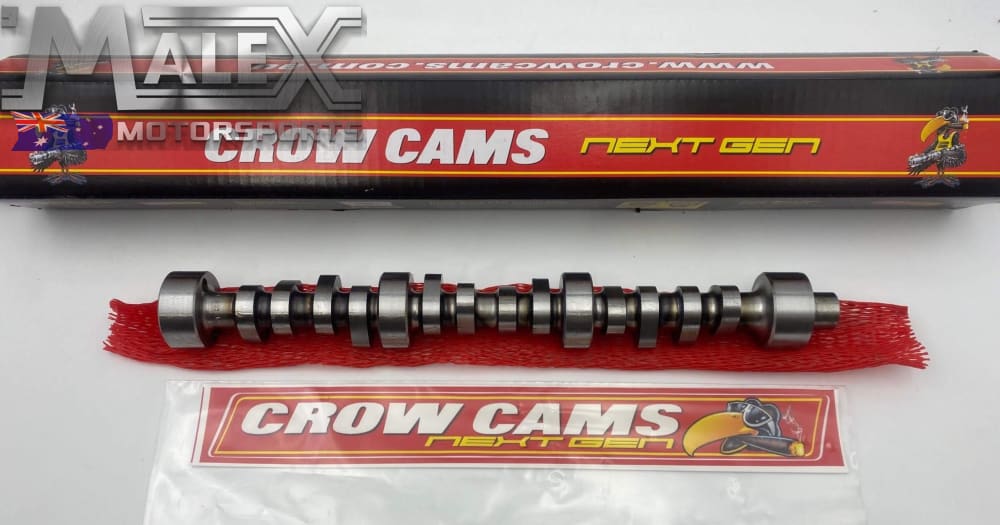

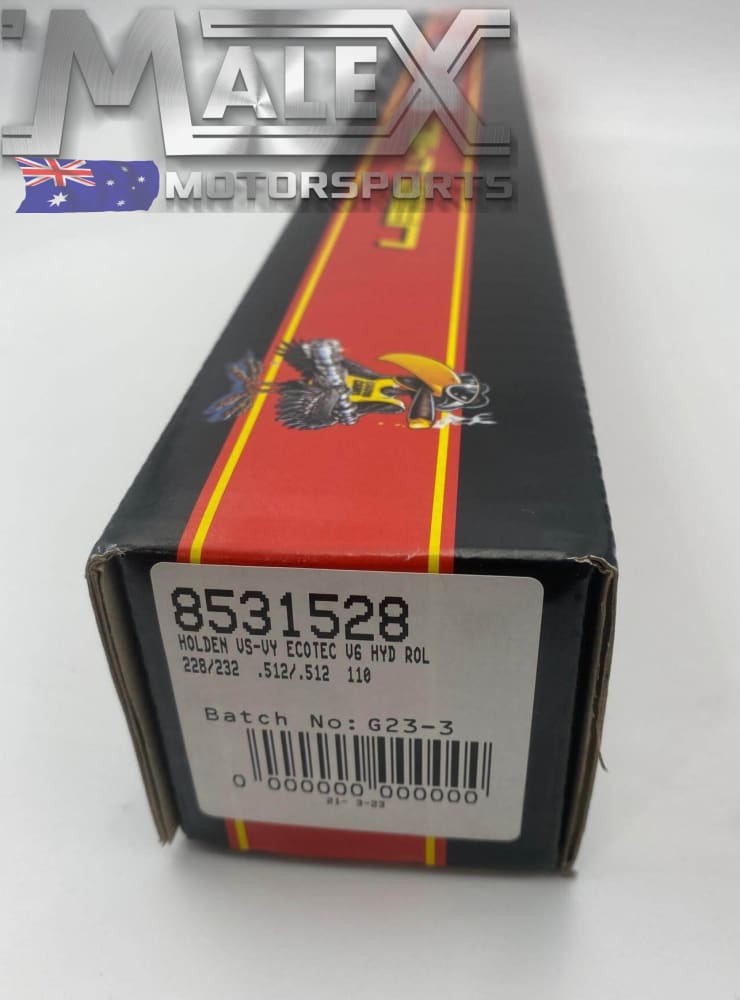

Ecotec N/A Max Effort Crow Cam VS-VY L36 8531528RH Speedway 7000+RPM

SKU: R2-8531528
Ecotec N/A Max Effort Crow Cam Vs-Vy L36 8531528Rh Speedway 7000+Rpm
Ecotec N/A Max Effort Crow Cam Vs-Vy L36 8531528Rh Speedway 7000+Rpm

Ecotec N/A Max Effort Crow Cam VS-VY L36 8531528RH Speedway 7000+RPM

SKU: R2-8531528
Regular price $880.00
/
  • Secure payments
  • In stock, ready to ship
  • Inventory on the way
Tax included.
Description

We keep this cam in stock for the speedway guys. It is a high RPM max effort cam which has be tested to 7000+ RPM. Will require  Supporting mods, exhaust, torque converter etc.

Suits VS VT VX VY V6 ecotec L36 engines

This cam will require aftermarket valve springs. We stock and recommend 4918-12 crow single pack .570" lift springs.

With 110 Lobe Separation Angle this would need an aftermarket computer or a memcal with a suitable tune to suit this camshaft.

If you are after a smaller stage 1,2 or 3 cam please reach out for a quote.

  • Here at Malex Motorsports all of our items are in stock in our Sydney based store, ready to ship or pick up.
  • NOW IN SMEATON GRANGE!

Advertised Valve Timing at height - 0.006 inches
Inlet Opens - 35 degrees BTDC
Inlet Closes - 71 degrees ABDC
Exhaust Opens - 78 degrees BBDC
Exhaust Closes - 34 degrees ATDC
Inlet Valve Duration - 286 degrees
Exhaust Valve Duration - 293 degrees
Inlet Valve Lift with 1.6 to 1 ratio rockers - 0.5115 inches
Exhaust Valve Lift with 1.6 to 1 ratio rockers - 0.5139 inches
Inlet Valve Lift for #1 Cylinder InTake Valve at TDC - 0.104 inches

0.050 Valve Timing
Inlet Opens - 5 degrees BTDC
Inlet Closes - 41 degrees ABDC
Exhaust Opens - 48 degrees BBDC
Exhaust Closes - 4 degrees ATDC
Inlet Valve Duration - 226 degrees
Exhaust Valve Duration - 232 degrees
Inlet Valve Lift with 1.6 to 1 ratio rockers - 0.5115 inches
Exhaust Valve Lift with 1.6 to 1 ratio rockers - 0.5139 inches
Ramp Rate - 2.56
Valve Overlap Seat to Seat - 69 degrees
Valve Overlap at 0.050 inches - 9 degrees
Inlet Lobe Centreline - 108 degrees
Exhaust Lobe Centreline - 112 degrees
Lobe Separation Angle - 110 degrees
