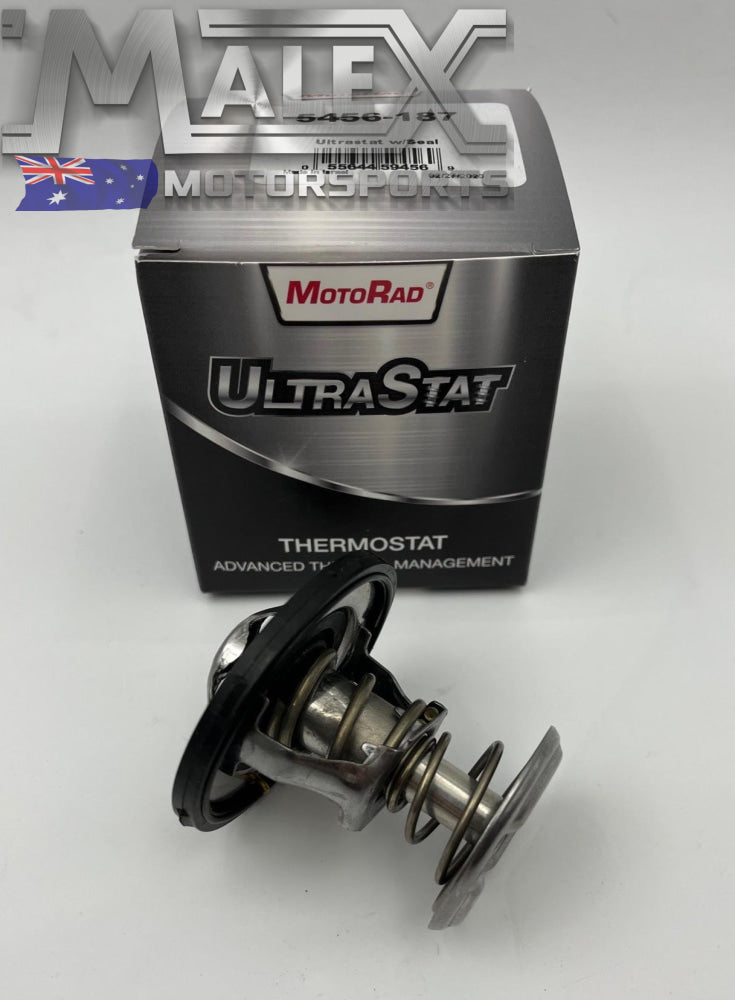

Brand New Motorad thermostat. Removable thermostat type. Includes the seal.
Replaces GM Part number 12600171.

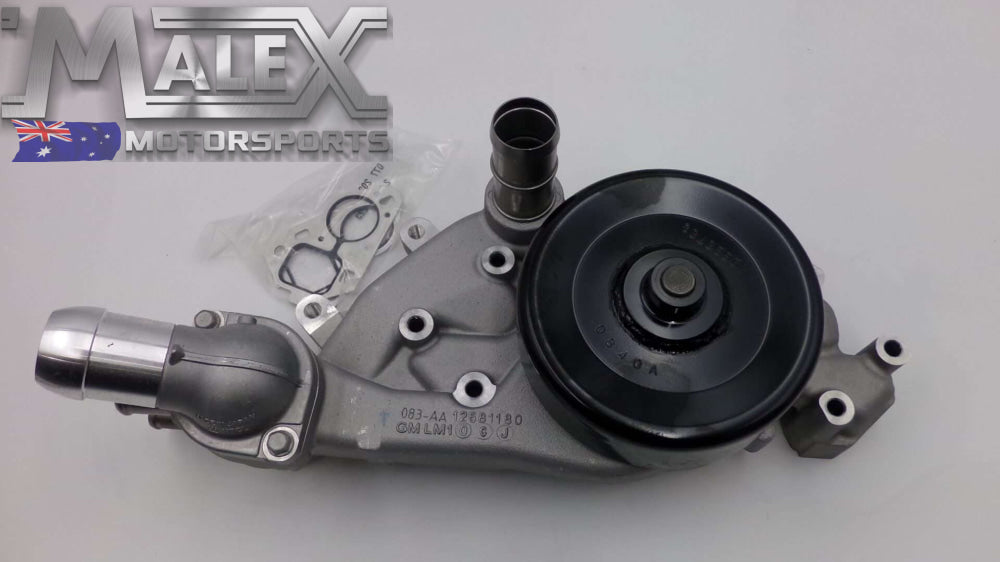

This Suits VE V8 Models up to 6/2009. Suits VE water pumps with the top radiator outlet on the drivers side of the pulley. (see pic)
opens 86 degrees C
Also suits VT-VZ models with the superseded water pump. Suits VT-VZ pump number 12681179. Will NOT fit early pumps with the separate 'o' ring.
Heavy gauge stainless steel components offer increased reliability and long-lasting durability
Exclusive BLVT™ Valve Technology minimizes thermal shock to cooling system components
Stainless steel thermal element for unmatched corrosion resistance and revolutionary REAX™ wax mixture provides quicker reaction time
AccuSpring™ Design for stable temperature control and increased cabin comfort
Bypass Diameter: 1.46 in
Bypass Length: 1.84 in
Gasket or Seal Required: Yes
Color: Silver
Flange Thickness: 0.05 in
Gasket Or Seal Included: Yes
Gasket Or Seal Material: Rubber
Gasket Quantity: 1
Installation Tool Included: No
Jiggle Pin Weep Hole: Yes
Material: Stainless Steel
Sealing Flange Outside Diameter: 2.13 in
Start to Open Temperature: 86 Deg. C
