Mount A/C Compressor Bracket for Sanden 7176 US TRUCK OFFSET LS Conversion

SKU: D13-551137-LS74-3
Mount A/C Compressor Bracket For Sanden 7176 Us Truck Offset Ls Conversion Accessory Bracket
Mount A/C Compressor Bracket For Sanden 7176 Us Truck Offset Ls Conversion Accessory Bracket
Mount A/C Compressor Bracket For Sanden 7176 Us Truck Offset Ls Conversion Accessory Bracket
Mount A/C Compressor Bracket For Sanden 7176 Us Truck Offset Ls Conversion Accessory Bracket
Mount A/C Compressor Bracket For Sanden 7176 Us Truck Offset Ls Conversion Accessory Bracket
Mount A/C Compressor Bracket For Sanden 7176 Us Truck Offset Ls Conversion Accessory Bracket
Mount A/C Compressor Bracket For Sanden 7176 Us Truck Offset Ls Conversion Accessory Bracket
Mount A/C Compressor Bracket For Sanden 7176 Us Truck Offset Ls Conversion Accessory Bracket
Mount A/C Compressor Bracket For Sanden 7176 Us Truck Offset Ls Conversion Accessory Bracket
Mount A/C Compressor Bracket For Sanden 7176 Us Truck Offset Ls Conversion Accessory Bracket

Mount A/C Compressor Bracket for Sanden 7176 US TRUCK OFFSET LS Conversion

SKU: D13-551137-LS74-3
/
  • Secure payments
  • Low stock - 2 items left
  • Ready to ship March 23, 2023
Tax included.
Description
LS - 4-Rib - Sanden 7176 A/C Compressor Bracket Kit  USA MADE !!! THE ORIGINAL MAKER OF THIS BRACKET KIT!!!!!
This kit uses a UAC-SD7\7176 or a Vintage Air SD7/7176 compressor. This Kit suits TRUCK offset harmonic balancers as found on US imported LS engines. This kit will not fit VT-VZ or VE-VF harmonic balancer. Please see our other listings if that is what you need. See picture 2 for a harmonic balancer offset guide.
Links to Compressors →UAC and Vintage Air
Link to serpentine belt
  • Suitable for VC, VB , VH, VK, VL, VN, VP, VR, VS and VG Commodores

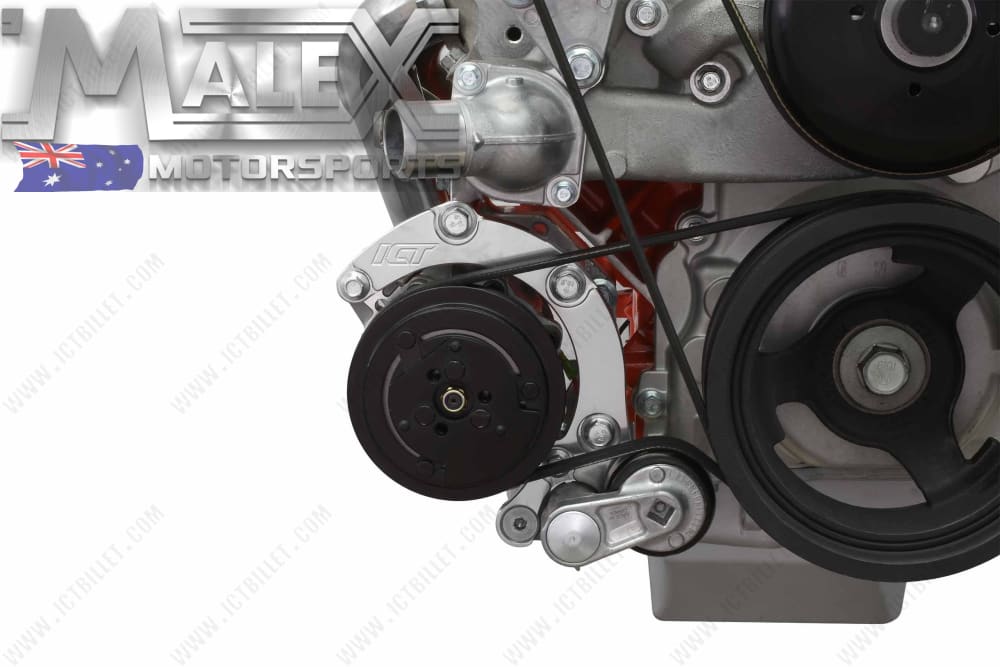

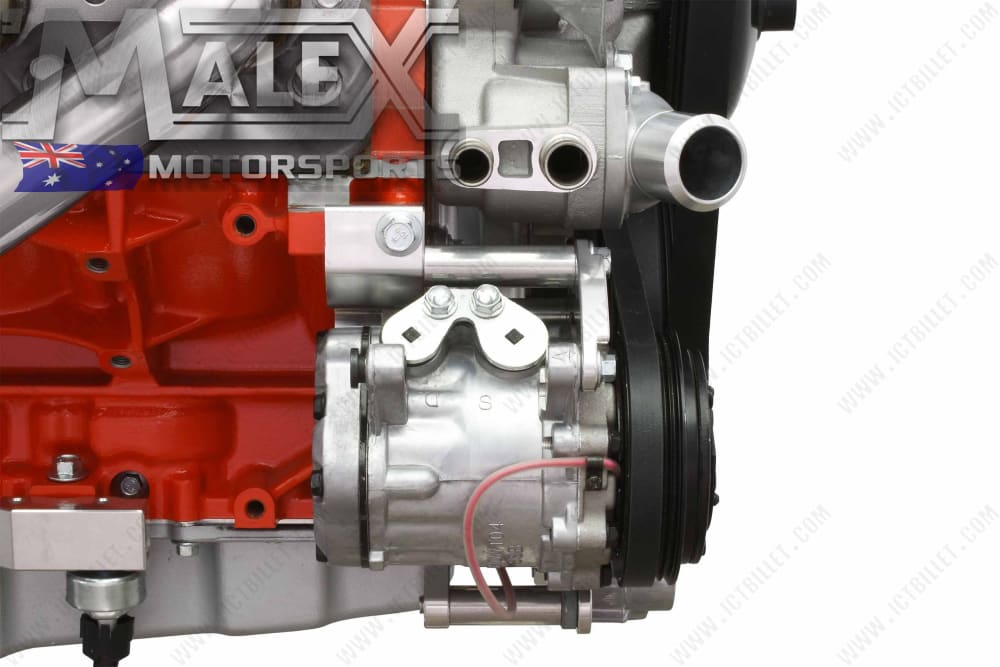

  • Mounts the aftermarket style "Sanden 7176" (SD7) 6 rib (front 2 ribs are left free) compressor down low on the passenger side in the factory LS compressor location
  • Aligns compressor with the rear, 4-rib belt location on the crankshaft pulley
  • Compatible with Tuff Mounts.

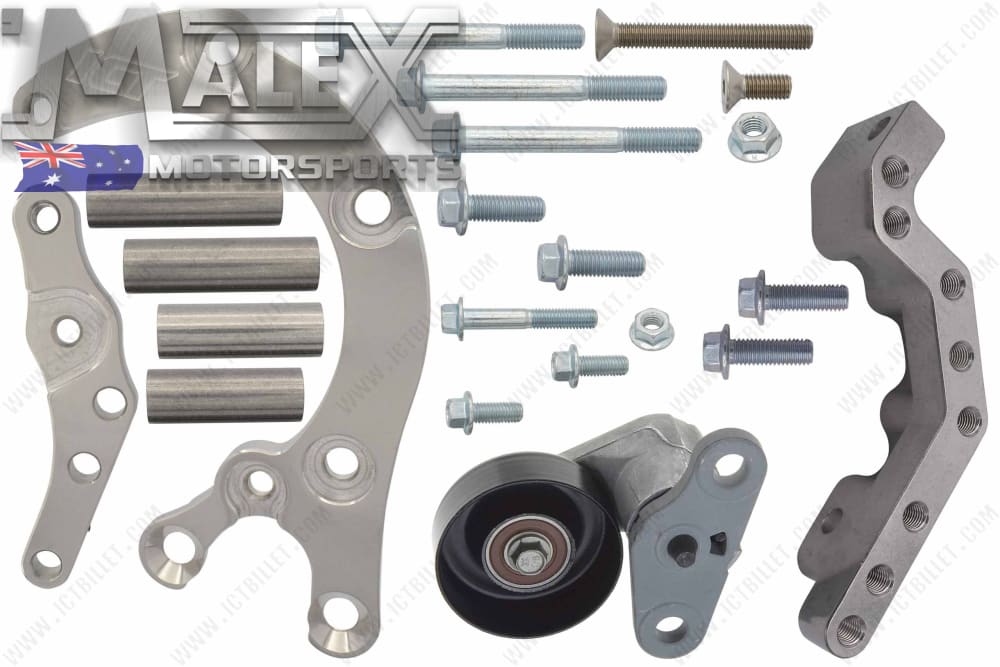

  • Includes: bracket, mounting hardware, and belt tensioner
  • Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminum
LS low mount AC dimensions
Belt length (373K4) (37.3 inch)
  • Here at Malex Motorsports all of our items are in stock in our Sydney based store, ready to ship or pick up.
  • NOW IN SMEATON GRANGE!
 *note this does NOT fit factory style LS vehicle a/c compressors
