Bosch FPx-HF BR540 540L/H In tank Fuel Pump LS1 LS2 LS3 LSA Supercharged VF GTS

SKU: D43L-F02UVOU343-01
Regular price $295.00
/
  • Secure payments
  • Low stock - 2 items left
  • Inventory on the way
Tax included.
Description

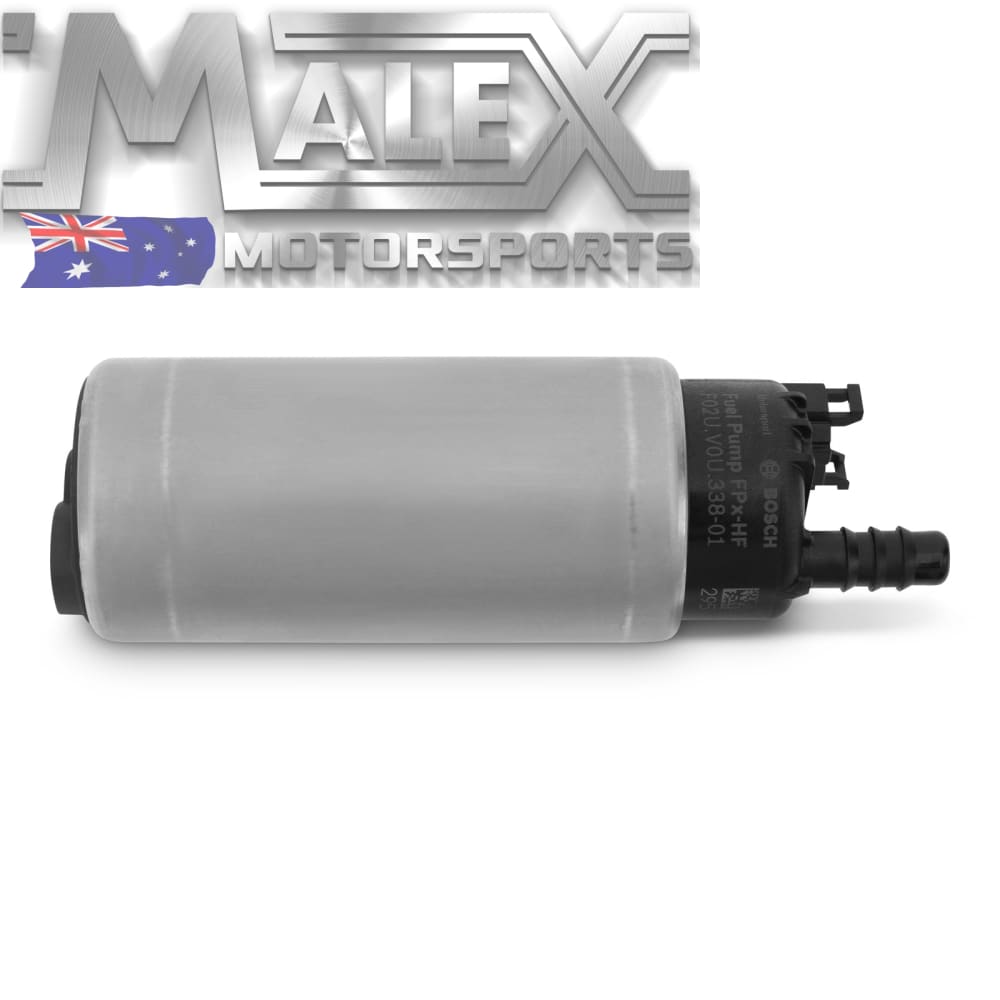

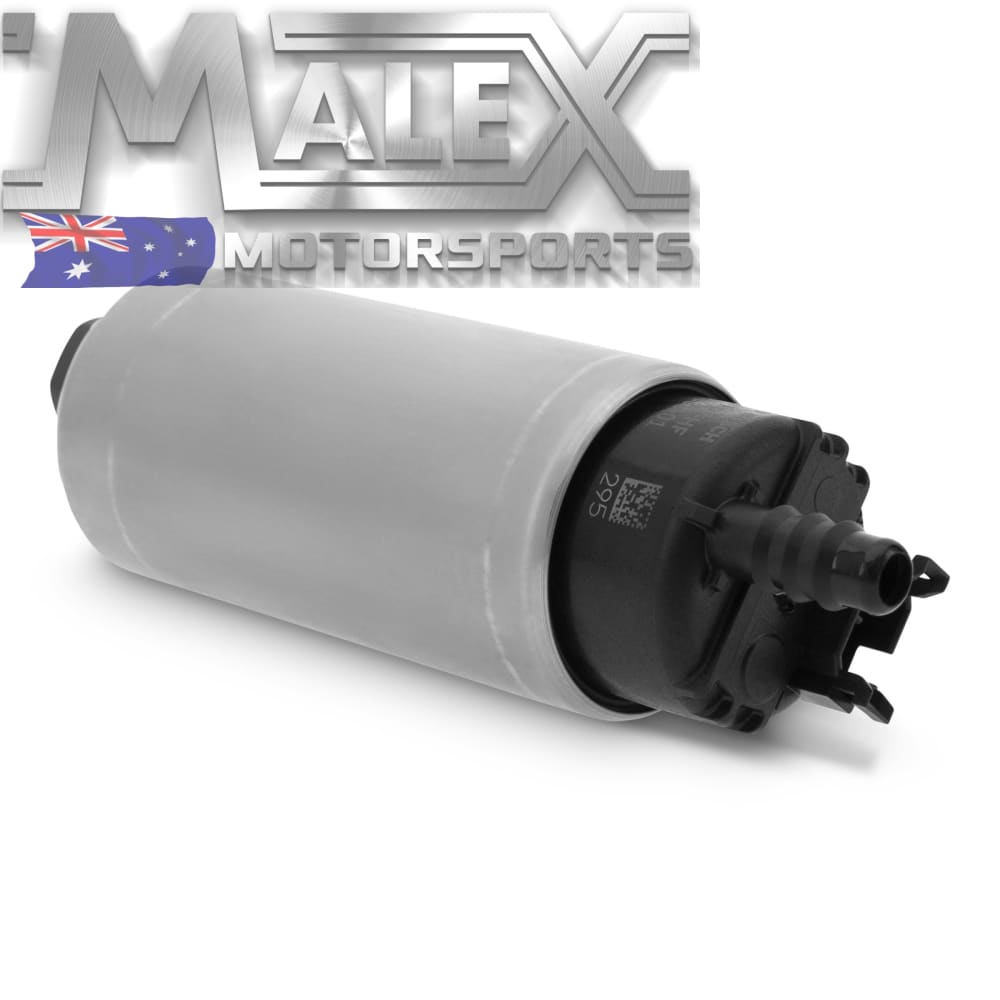

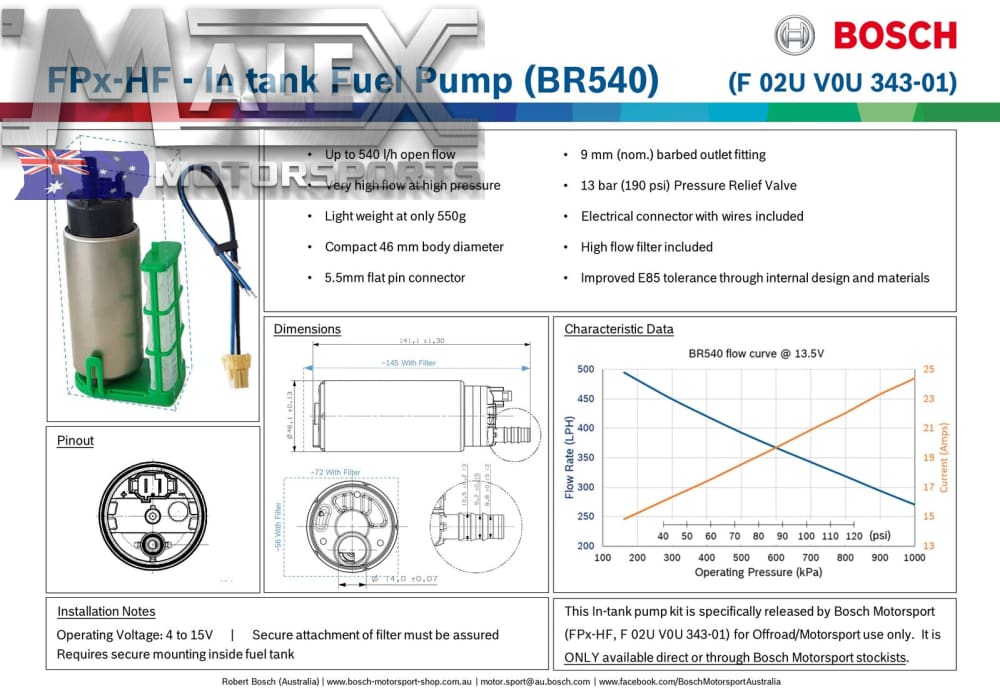

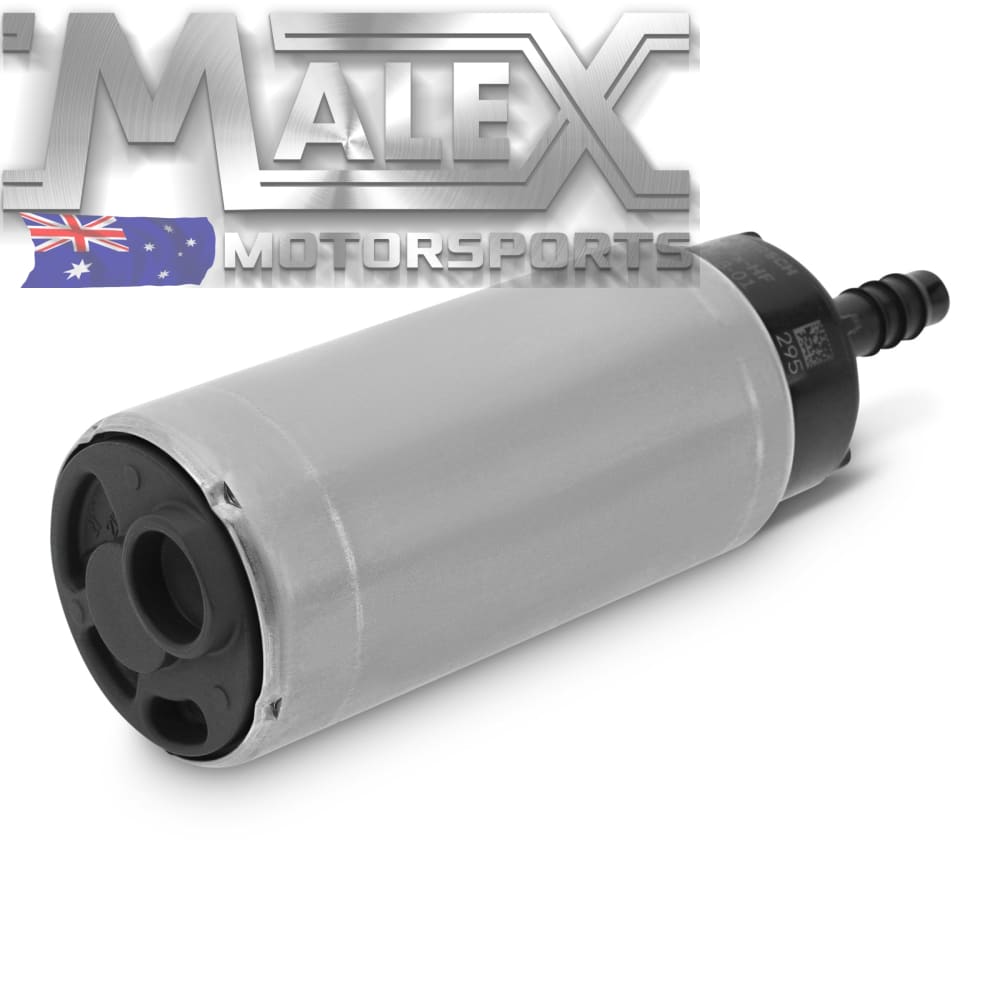

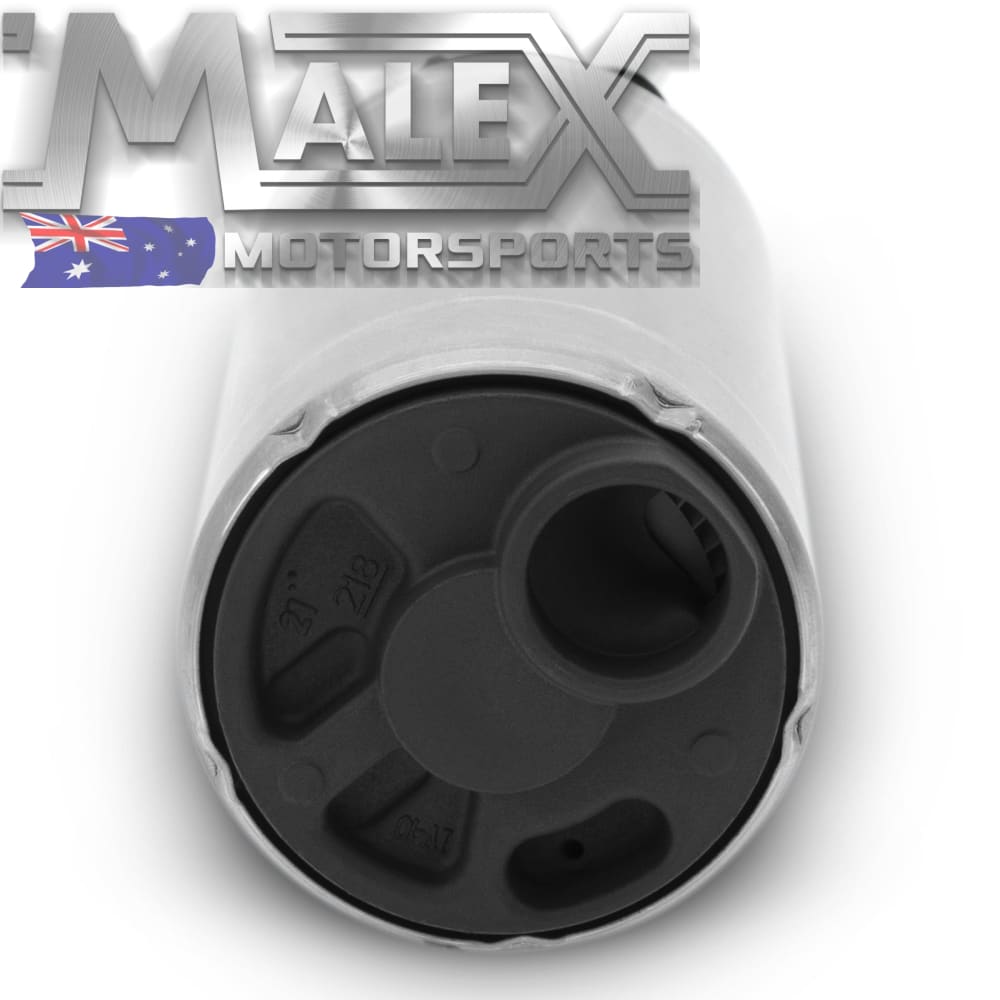

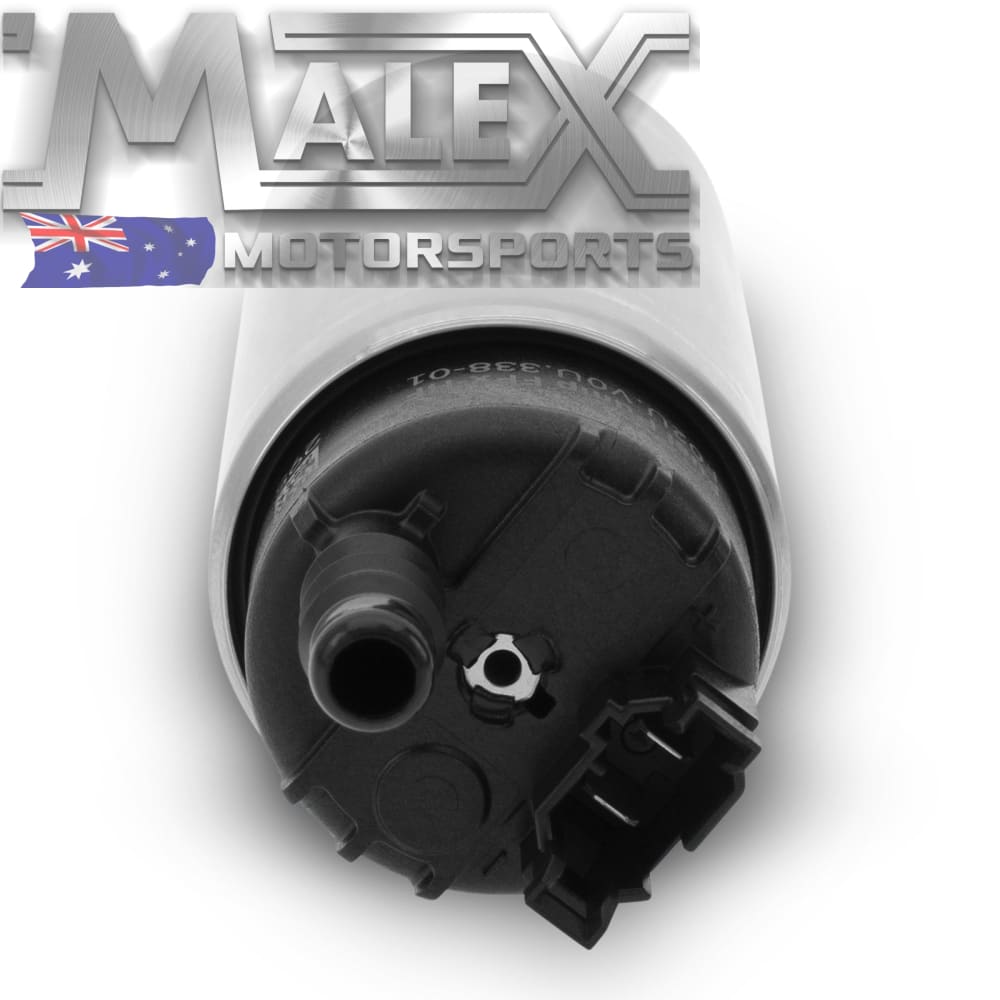

Bosch Motorsports BR540 Fuel pump kit.  F 02U V0U 343-01

E85 Compatible .

If your pushing the limits of you standard Holden fuel pump this may be the solution. The Br540 has been used in 1000hp+ Vehicles.

  • Highest flowing Bosch in-tank fuel pump available!!
  • - Up to 540 l/h @ open flow
  • - Up to 460 l/h @ 40Psi (2.75bar)
  • - Up to 380 l/h @ 80Psi (5.5bar)
    - An amazing 270l/h @ 145Psi (10.0bar)
    - High flow all the way up to the 190Psi (13.0bar) Pressure Relief Valve setting

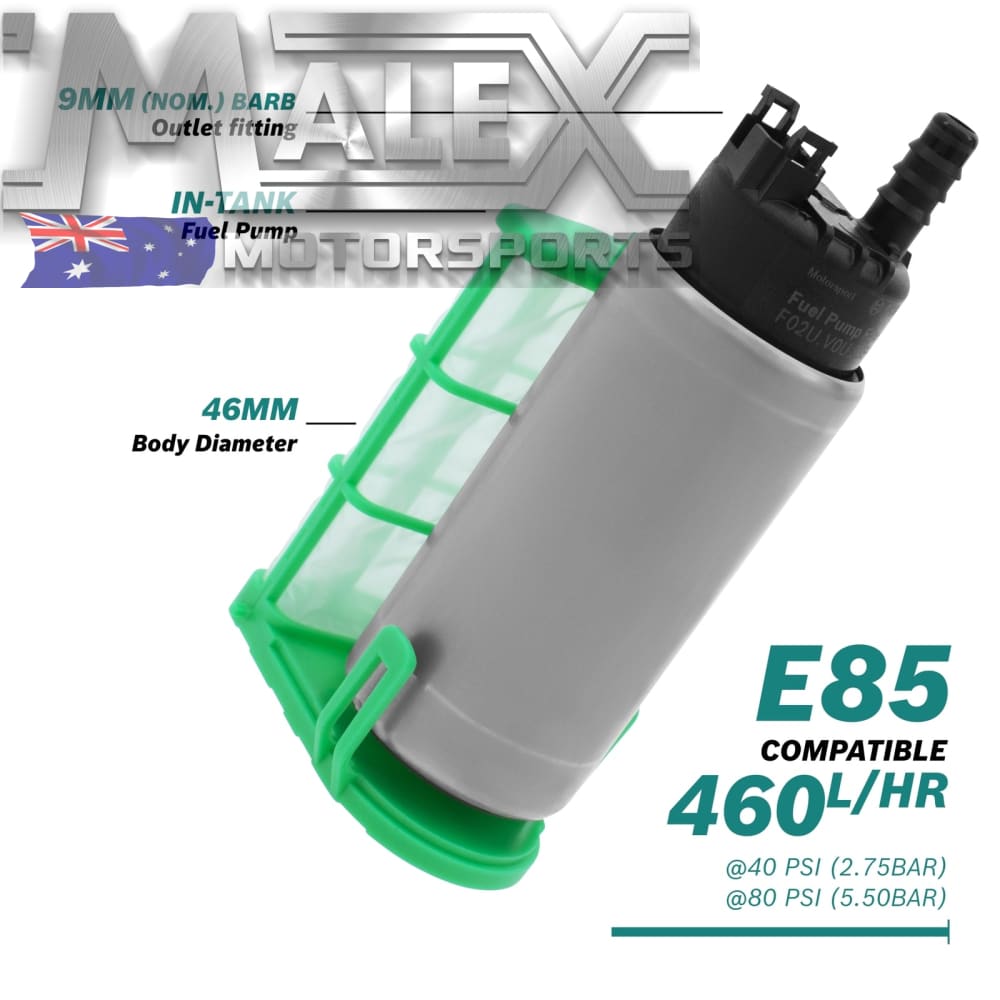

    - 9.0mm (nom.) barbed outlet fitting suits rubber or nylon hose
    - Light weight (550g) and Compact 46mm body size

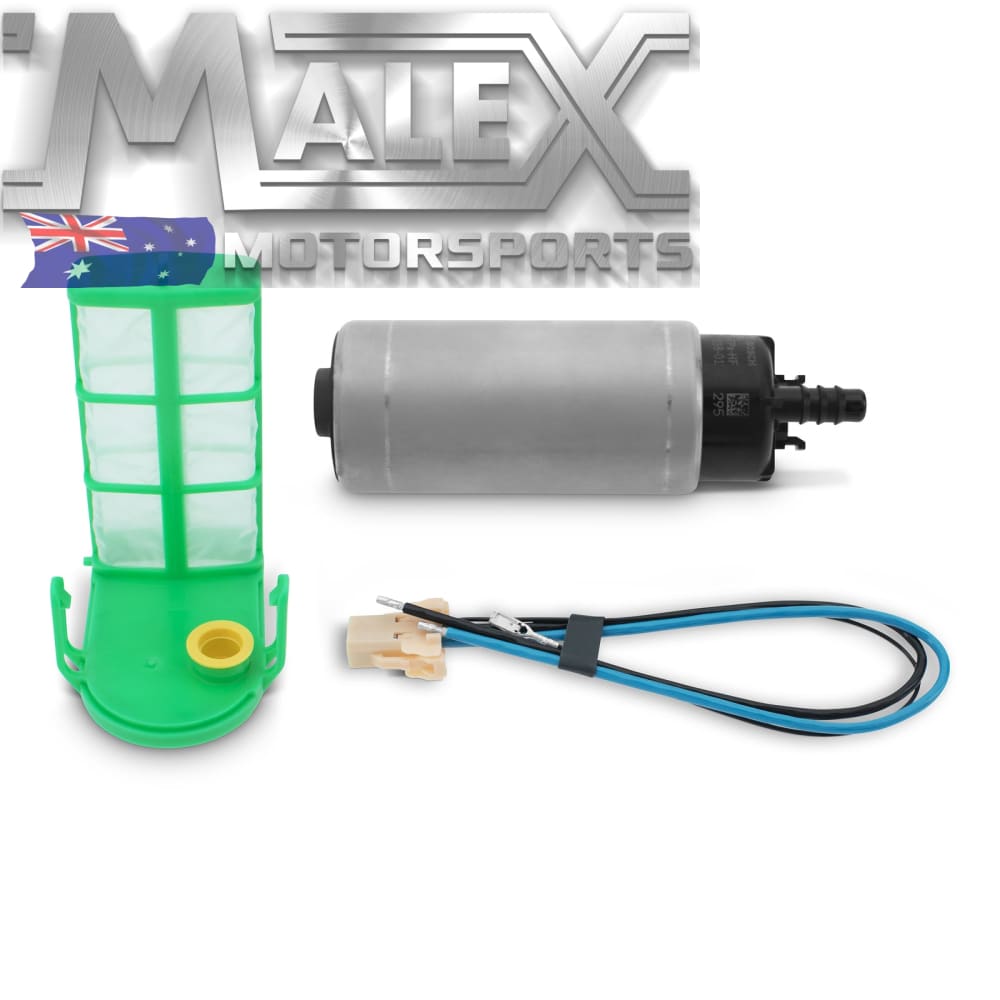

    - Includes electrical connector with wires
    - Includes High flow filter
    - Draws ~16A @ 40Psi (2.75bar), ~19A @ 80Psi (5.5bar), ~24A @ 145Psi (10.0bar)

    NOTE: This pump needs to be securely installed inside the fuel tank via hanger or similar. Care should be taken to prevent separation of the filter from the pump. This pump has been released by Bosch Motorsport only for motorsport/offroad applications.
