BTR Truck Stage 1 V3

The new BTR V3 Truck Camshafts are the result of our most extensive truck cam development program ever, delivering more average torque and horsepower under the curve—perfect for trucks that need strong midrange performance & enhanced towing capability.

These cams use advanced valvetrain simulation and dynamic modeling tools, with Spintron development on both square and cathedral port heads to guarantee reliable, stable valvetrain performance across all possible platforms.

Next, we use engine and chassis dyno testing, using full-length truck single and dual exhaust systems and OEM-style intakes.  High-speed exhaust and intake port sensors and in-cylinder combustion pressure measurements on the dyno give feedback on pressure wave dynamics in real time. We perform hundreds of dyno runs to fine-tune cam timing, valve overlap, and exhaust scavenging, maximizing torque and efficiency across the RPM range.

These “Truck” cams receive the same engineering rigor and combustion development as our race programs. No old catalog lobes! Our goal was a clean-sheet design to bring true motorsport-level engineering discipline to the street and towing world, using the same high-end analytical tools, Spintron lobe development techniques, and wave-based combustion tuning methodologies trusted in professional racing. Plus, you're getting a 100% USA-designed & made product!

Camshaft Description:                            BTR LS TRUCK V3 STAGE 1

Engine Family:                                          GEN III & IV LS Applications

Recommended Engine Size:                  4.8-6.2L

Recommended Valve Springs:               BTR-SK018, SP011-16

NOTE: IF YOU HAVE A 6.0 OR 6.2 TRUCK ENGINE WITH SQUARE PORT HEADS, THE BTR-SK018 SPRING KIT IS RECOMMENDED.

Suggested Pushrod Length:                   7.400"

INTAKE DURATION @.050":                   201°

EXHAUST DURATION @.050":               21X°

LOBE LIFT INTAKE:                                  0.319"

LOBE LIFT EXHAUST:                              0.319"

INTAKE LOBE LIFT @ T.D.C.:                  0.0284"

ROCKER ARM RATIO:                              1.7:1

NET LIFT INTAKE:                                     0.542"

NET LIFT EXHAUST:                                 0.542"

LOBE SEPARATION ANGLE:                    111°

RPM Operating Range:                                1200-6000

Idle Quality:                                                    Minimal change in idle quality from stock

Chop Scale:                                                    1/10

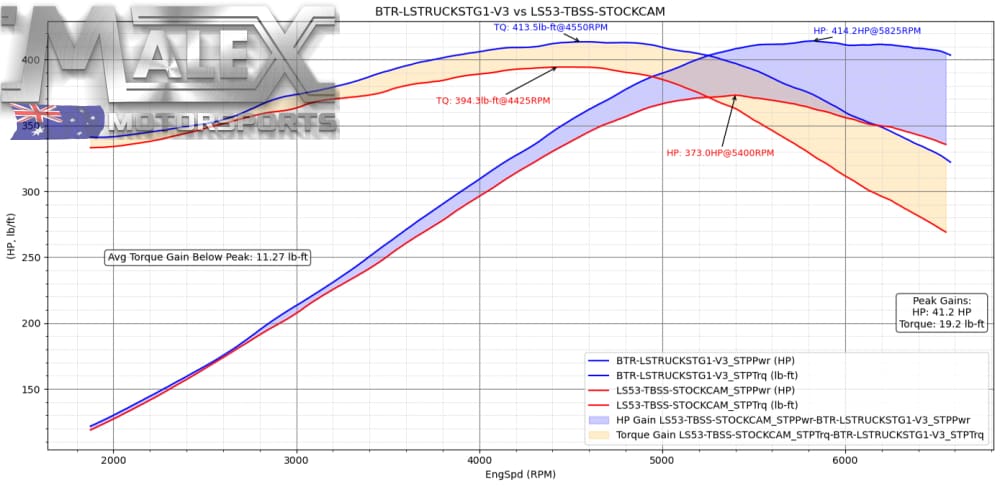

Expected Cam Swap Gains (P2P):               41+ Horsepower, 19+ lb/ft, extra

Torque Converter Characteristics:              Works well with factory converters!

'Drivability':                                                    Stock Drivability with added Torque Everywhere
