LS Gen 3 Iron Block to Gen 4 Timing Chain Guide Drill Template Tool LQ4 L33 LQ9

SKU: B14L-551902-TL01
/
  • Secure payments
  • Low stock - 2 items left
  • Inventory on the way
Tax included.
Description

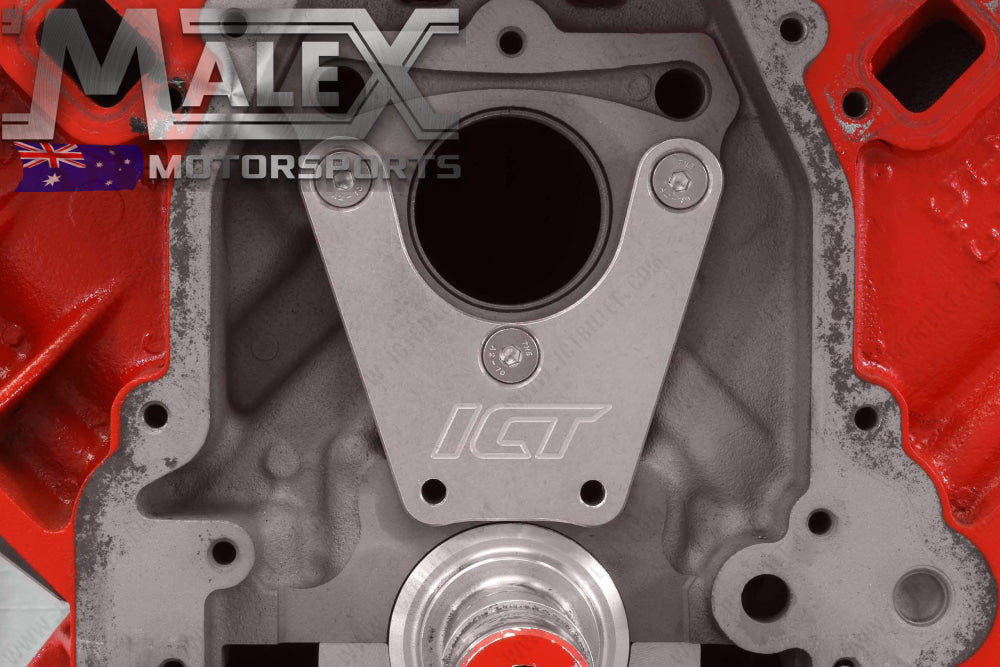

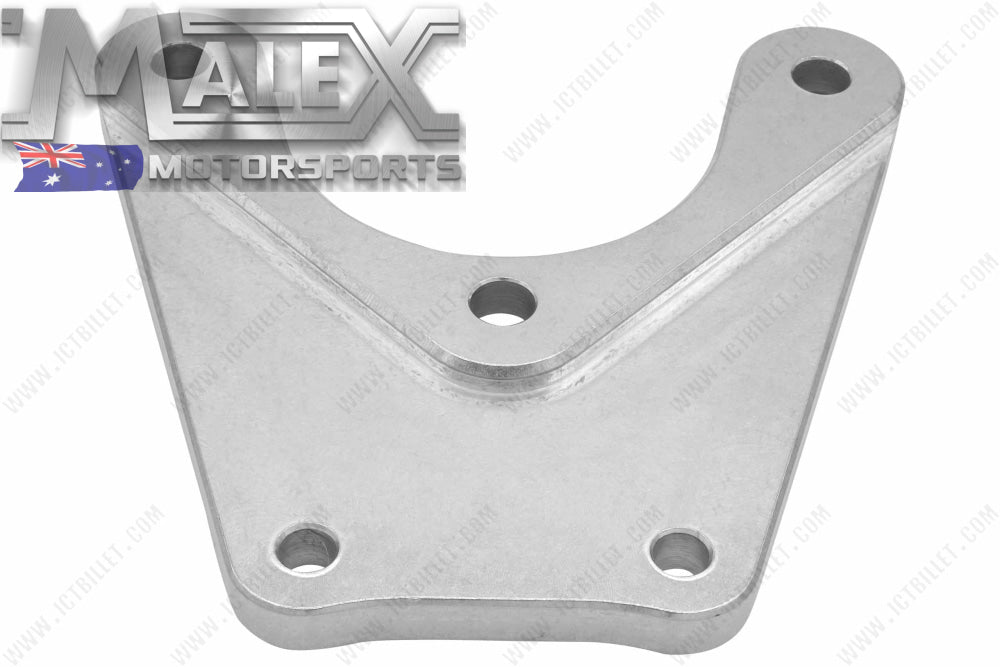

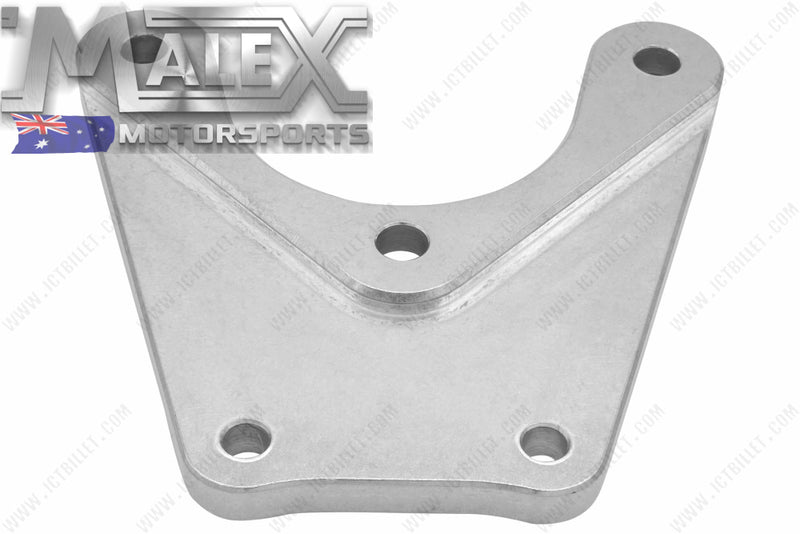

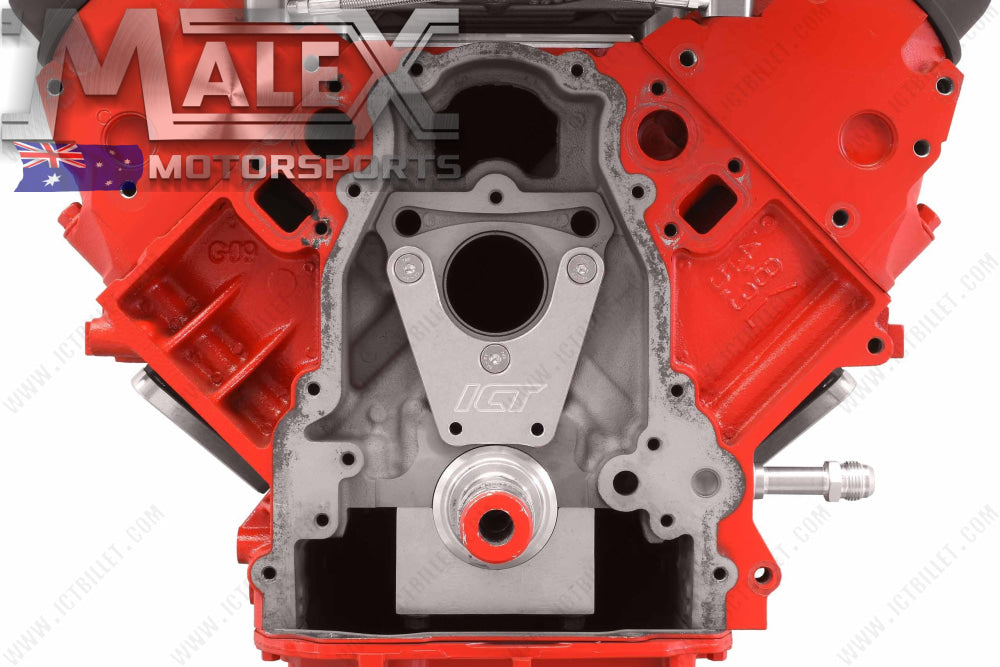

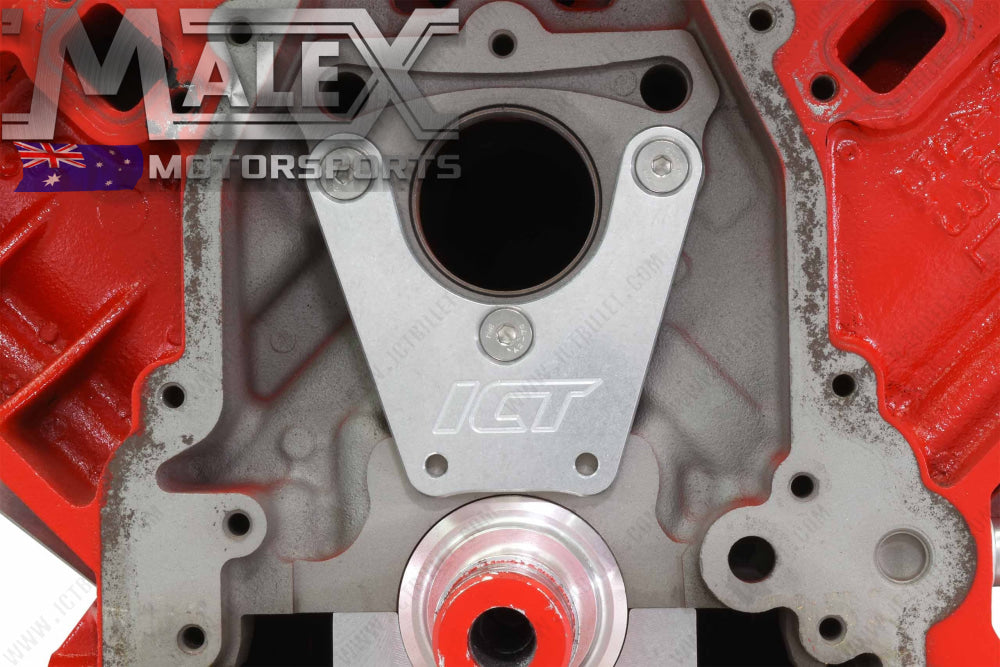

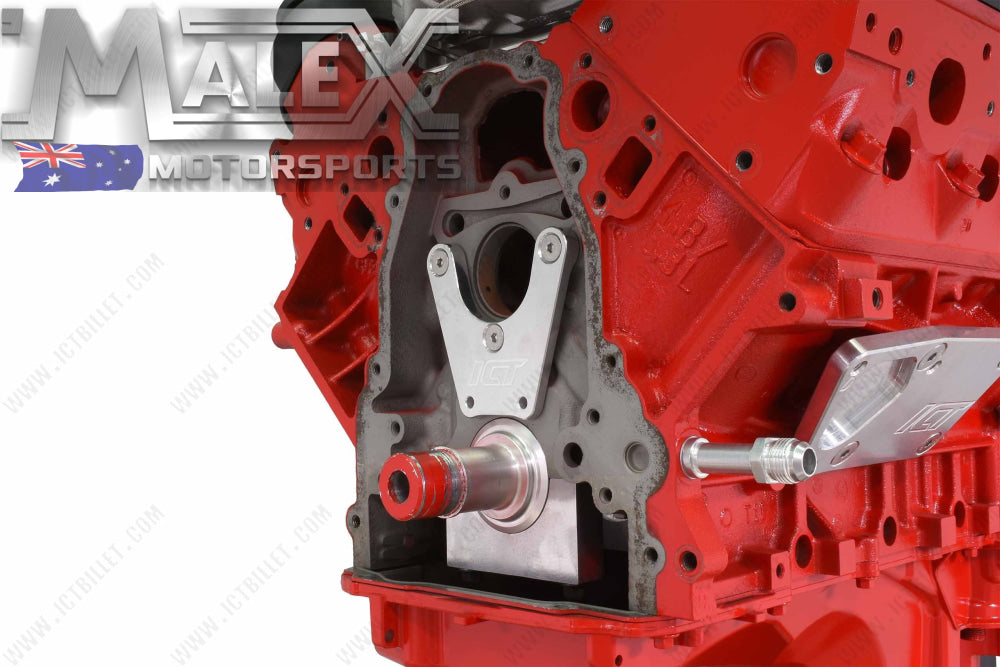

Drill Guide for LS Gen III Engines

Compatible with all GM Gen III LS series engines from 1999-2008

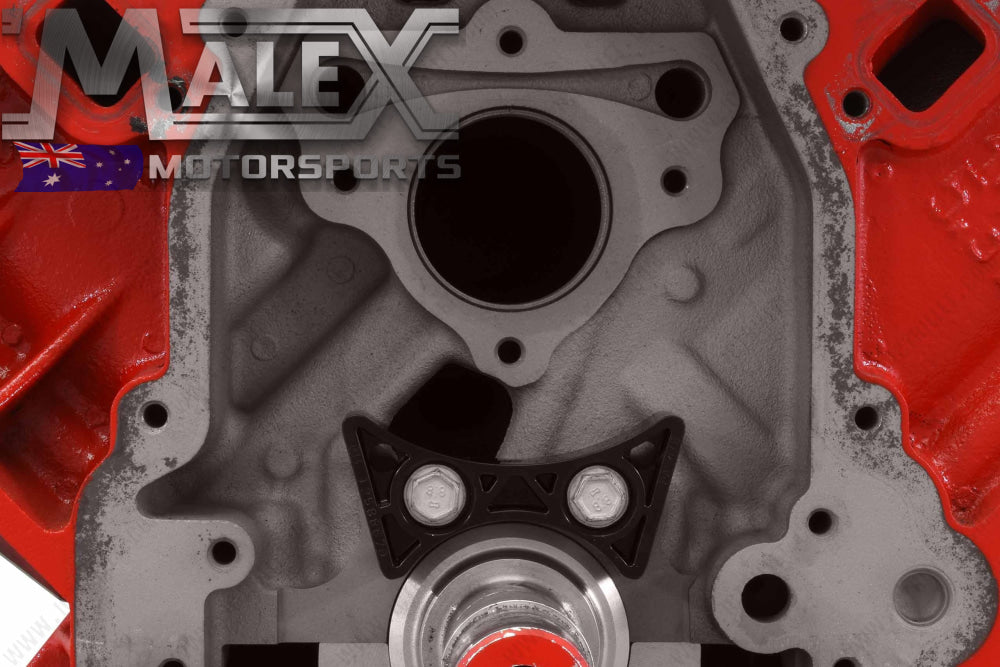

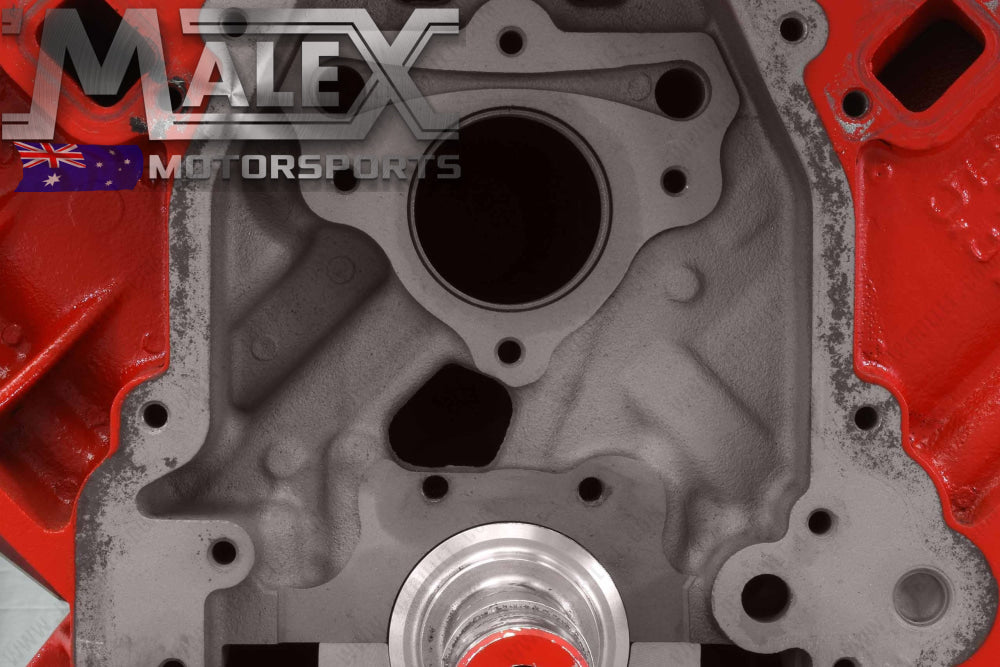

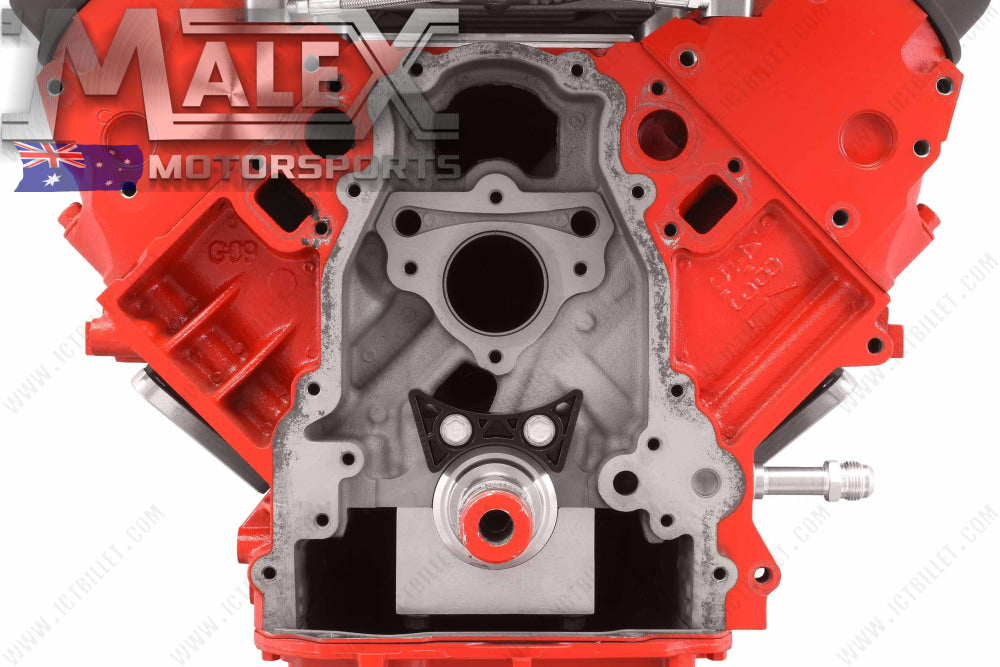

  • Used to add the necessary mounting holes in your engine block to mount a gen IV style timing chain guide (GM #12626407)
  • Requires the use of Letter H Drill Size (.266") for M8-1.25 Mounting Bolts (Not Included)

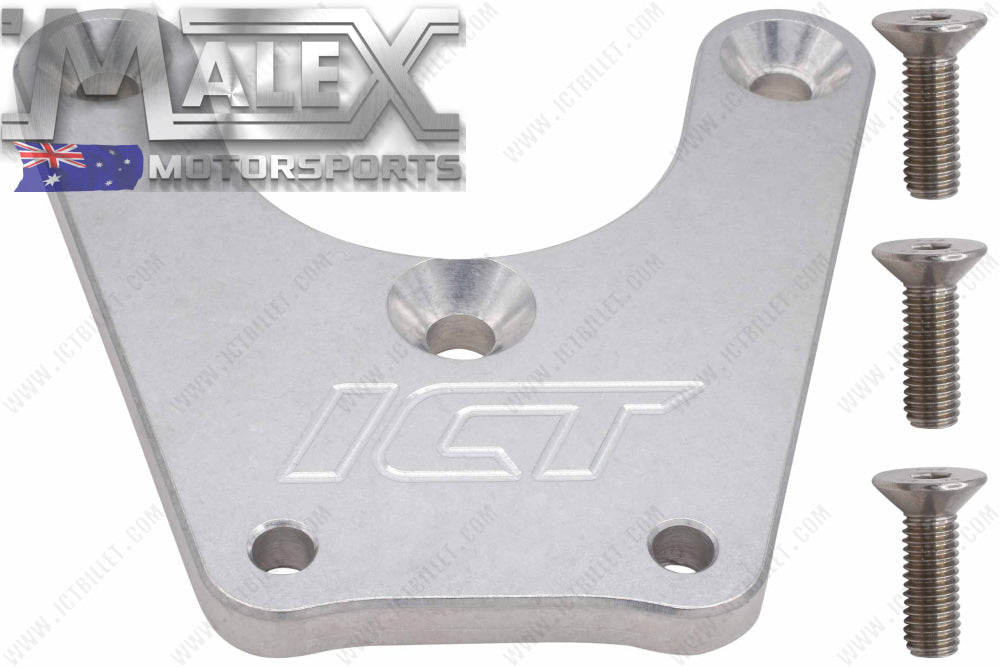

  • Includes: drill guide with mounting bolts
  • ONLY compatible with Gen III LS Iron Blocks (LM7, LR4, LQ4, L59, LQ9)
  • Made In Wichita, Kansas From aerospace grade, USA produced, billet aluminium
