Mahle 4.065 Bore 3.622 Stroke 6.098 Rod -5.8cc LS3 Forged Pistons and Rings 2618

SKU: 930227065
Regular price $1,495.00
/
  • Secure payments
  • Low stock - 1 item left
  • Inventory on the way
Tax included.
Description

Mahle Motorsport Powerpak Forged Pistons 2618 Low silicon material 930227065

Includes premium Mahle Performance low drag ring set (1.0,1.0,2.0mm file fit)

Factory Gen 4 rods will need to be honed to fit .945 pin

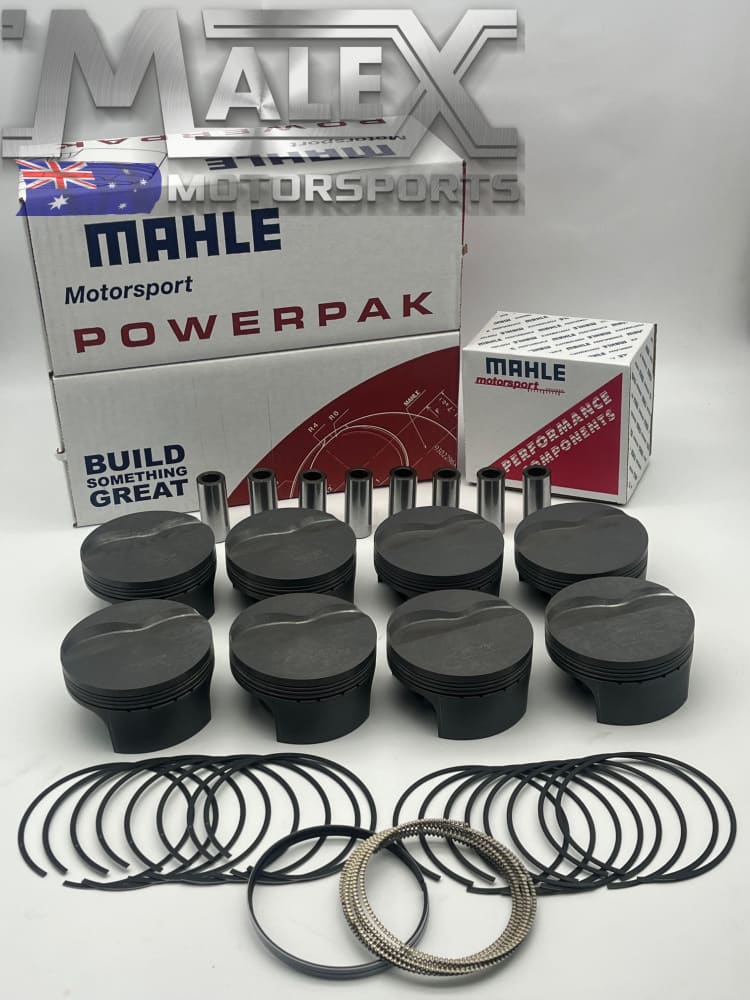

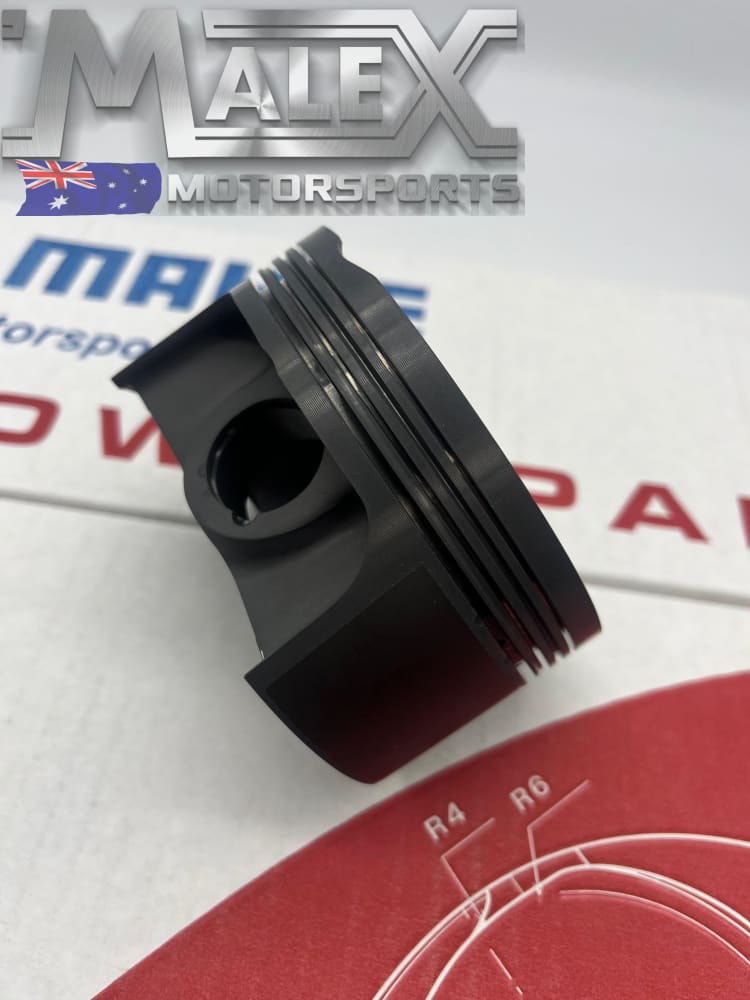

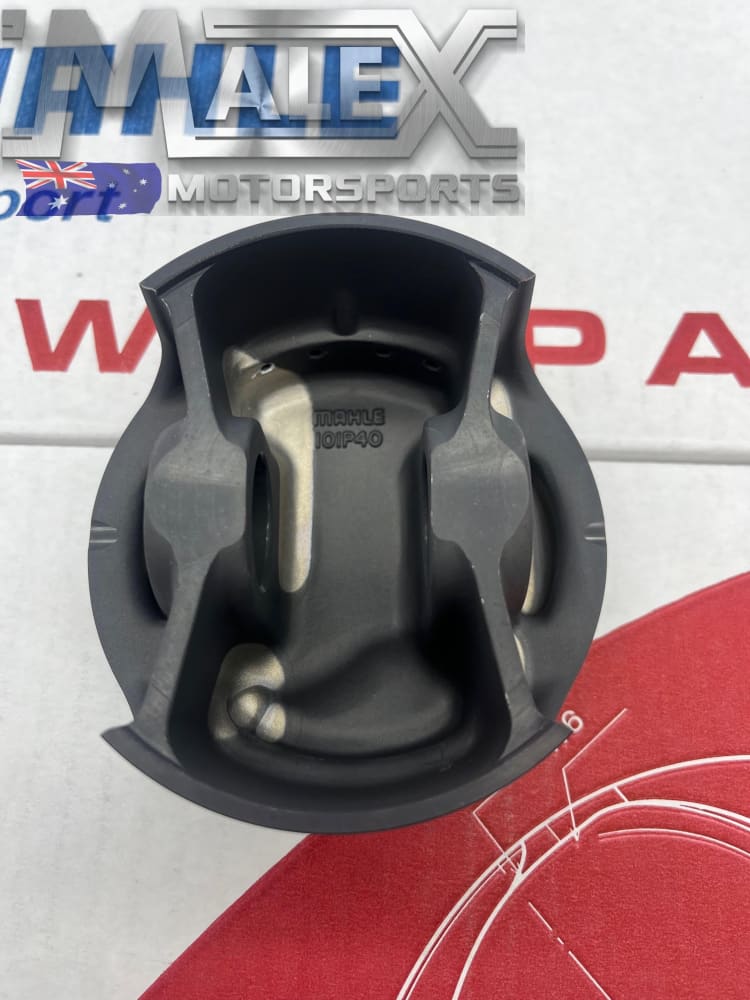

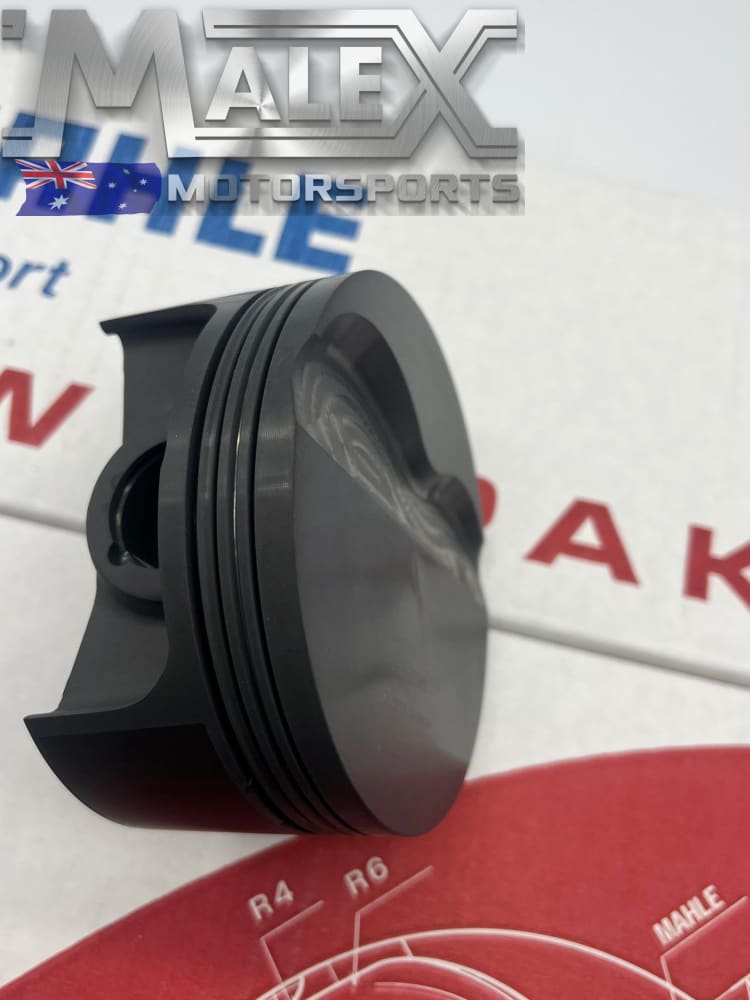

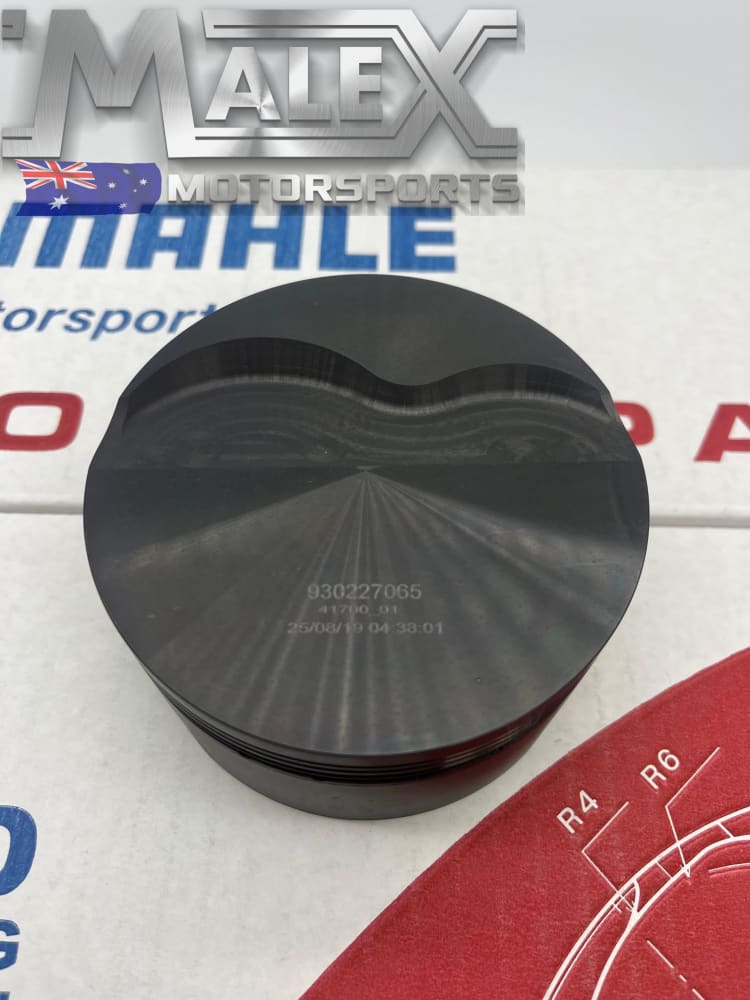

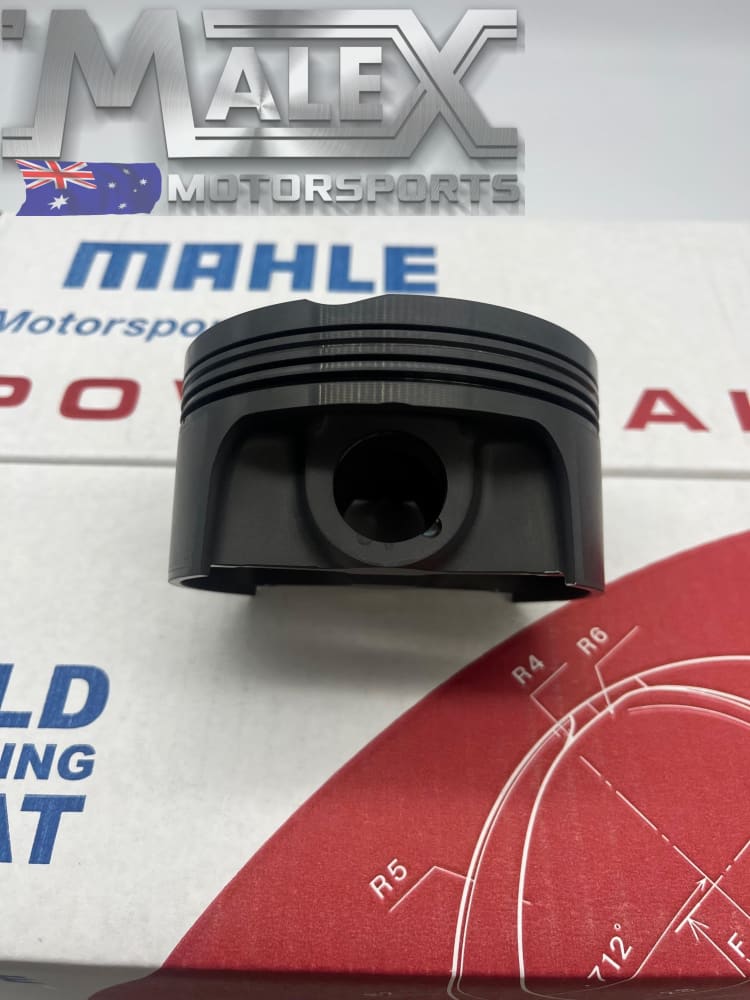

First photo is generic. Use single piston photos for reference.

Listing is for a full set with rings

BORE

4.065"

STROKE

3.622"

ROD

6.098"

COMP HEIGHT

1.330"

PIN DIAMETER

0.945"

VOLUME

5.8CC (valve pocket)

WEIGHT

453G

MATERIAL

2618 Low silicon

COMPRESSION RATIO

64cc head=10.8

70cc head=10.1

72cc head=9.9

2618 Alloy has a low silicon content. 2618 alloy has a greater expansion rate but is higher strength and more resistant to harsh conditions. Because of the greater clearance required 2618 pistons can be noisy on start up but will go away when operating temperature is reached

     4032 Alloy has a higher silicon content. A great forged piston for power applications but less forgiving to detonation. Because of the lower expansion rate you generally run a tighter clearances which generally makes for a quieter engine. Great for street performance engines and owners who are looking for OE quiet operation and still able to handle power add-ons.

If you need any help finding the right piston for your build contact us Mon-Fri 8-4
