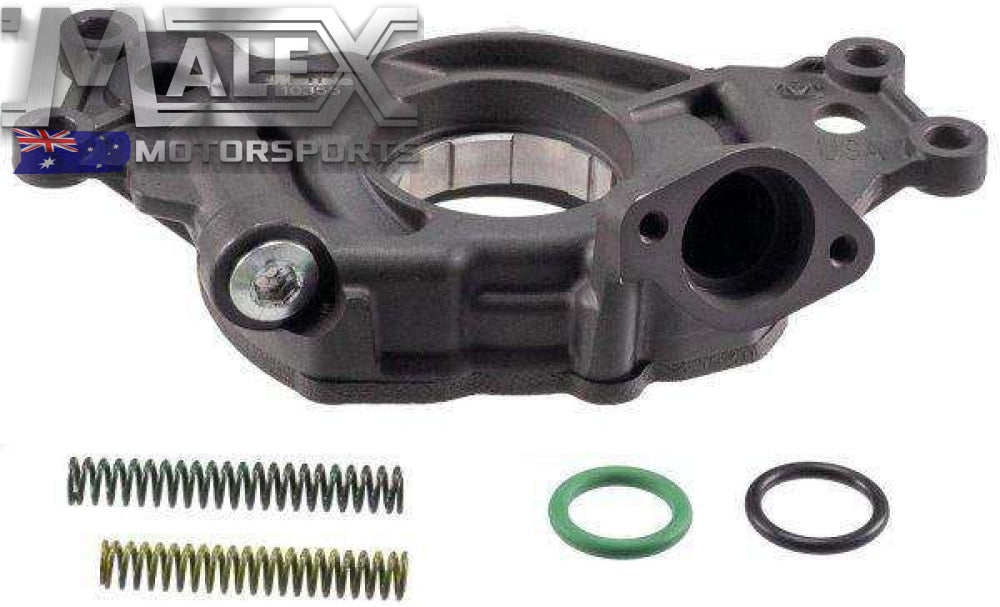

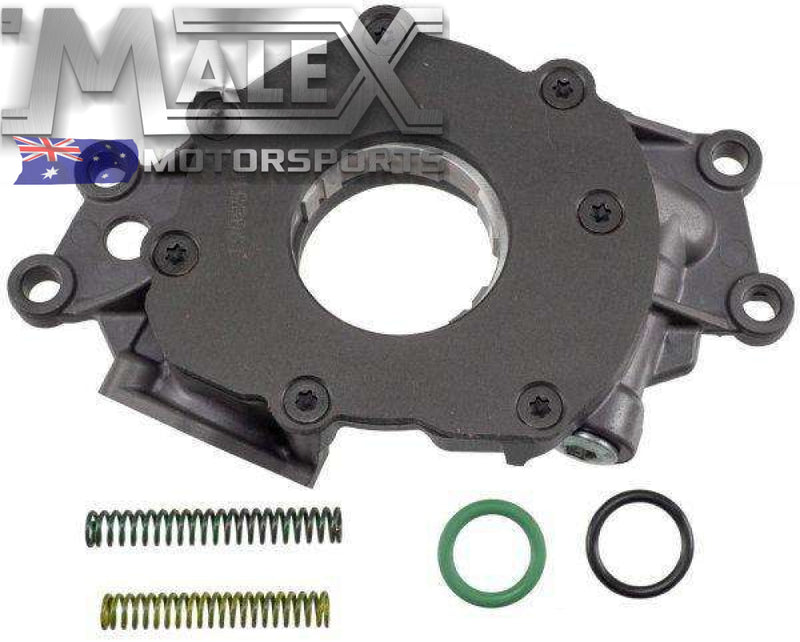

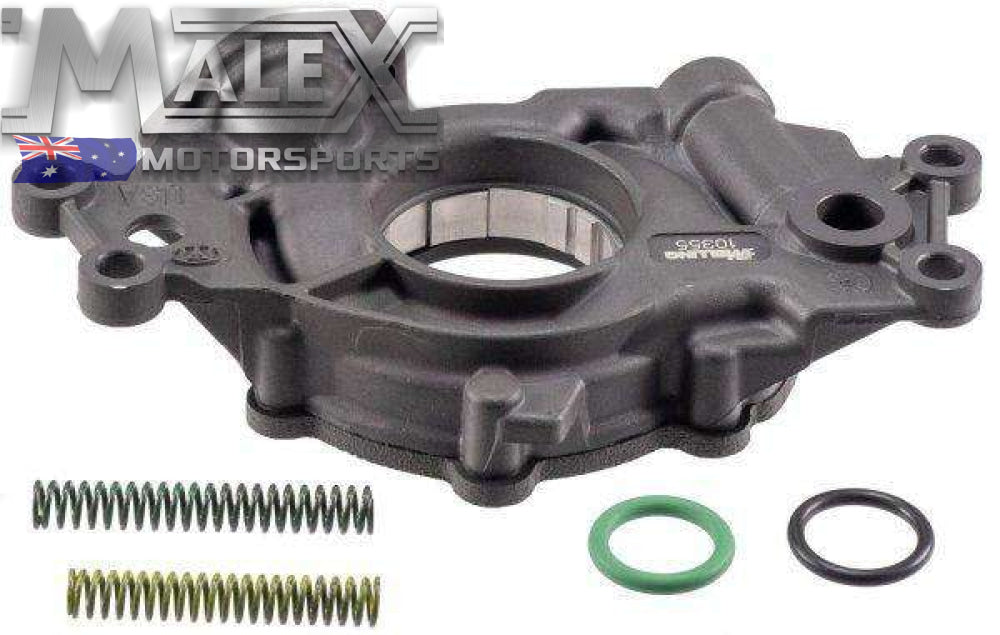

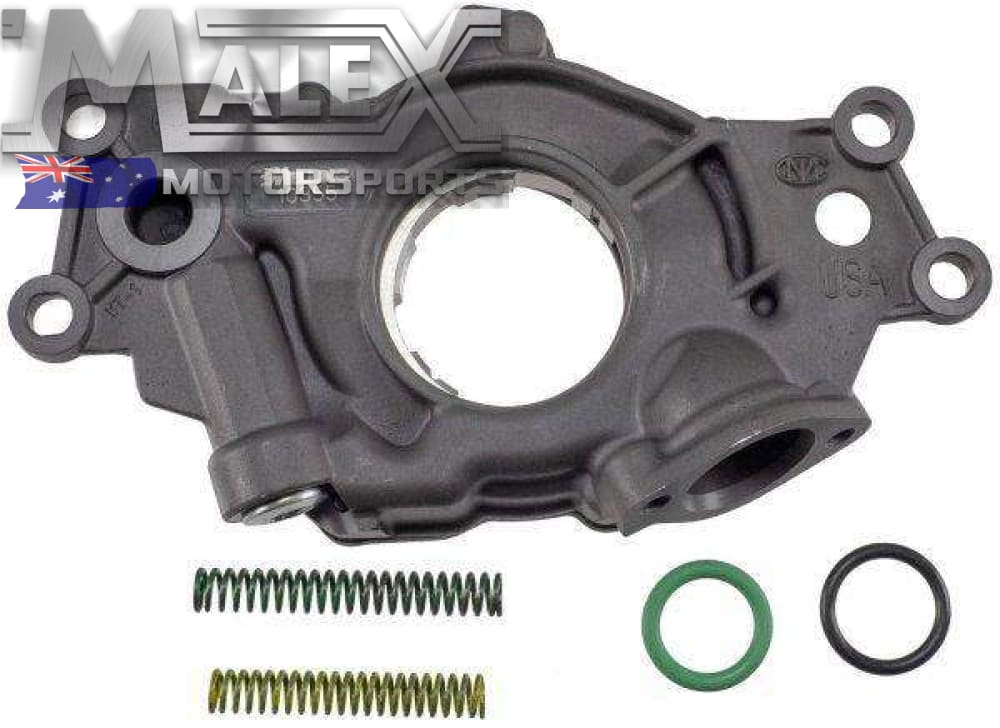

MELLING 10355 LS High Performance Oil pump

SKU: F27-10355
Melling 10355 Ls High Performance Oil Pump
Melling 10355 Ls High Performance Oil Pump
Melling 10355 Ls High Performance Oil Pump
Melling 10355 Ls High Performance Oil Pump
Melling 10355 Ls High Performance Oil Pump
Melling 10355 Ls High Performance Oil Pump
Melling 10355 Ls High Performance Oil Pump
Melling 10355 Ls High Performance Oil Pump

MELLING 10355 LS High Performance Oil pump

SKU: F27-10355
/
  • Secure payments
  • Low stock - 1 item left
  • Inventory on the way
Tax included.
Description
  • High volume performance upgrade for M355.
  • 33% increase in volume over the 10295.
  • The 10355 features a hard coat anodized body with a cast iron phosphate coated cover.
  • The relief valve features a screw in valve plug with the optional lower stock pressure spring supplied.
  • Uses a stock 1-1/8” bolt on pick up.



MELLING 10355 Specifications
Additional Pressure Over Stock Percentage 10 psi
Adjustable Bypass Pressure Yes
Alternate Pressure Springs Included Yes
Drive Type Crankshaft
Gasket or Seal Included Yes
Grade Type Performance
Height 4.30 In.
Height 109.0 mm
Housing Finish Anodized Hardcoat
Housing Material Cast Aluminium
Mounting Hole Diameter 0.36 In.
Mounting Hole Diameter 9.15 MM
Mounting Hole Quantity 4
Oil Pump Pressure Type High Pressure
Oil Pump Type Rotary
Oil Pump Volume Type Standard Volume
Pick Up Tube Diameter 0.875 In.
Pick Up Tube Diameter 22.225 MM
Title High Performance Oil Pump
Width 8.25 in.
Width 210.0 MM
