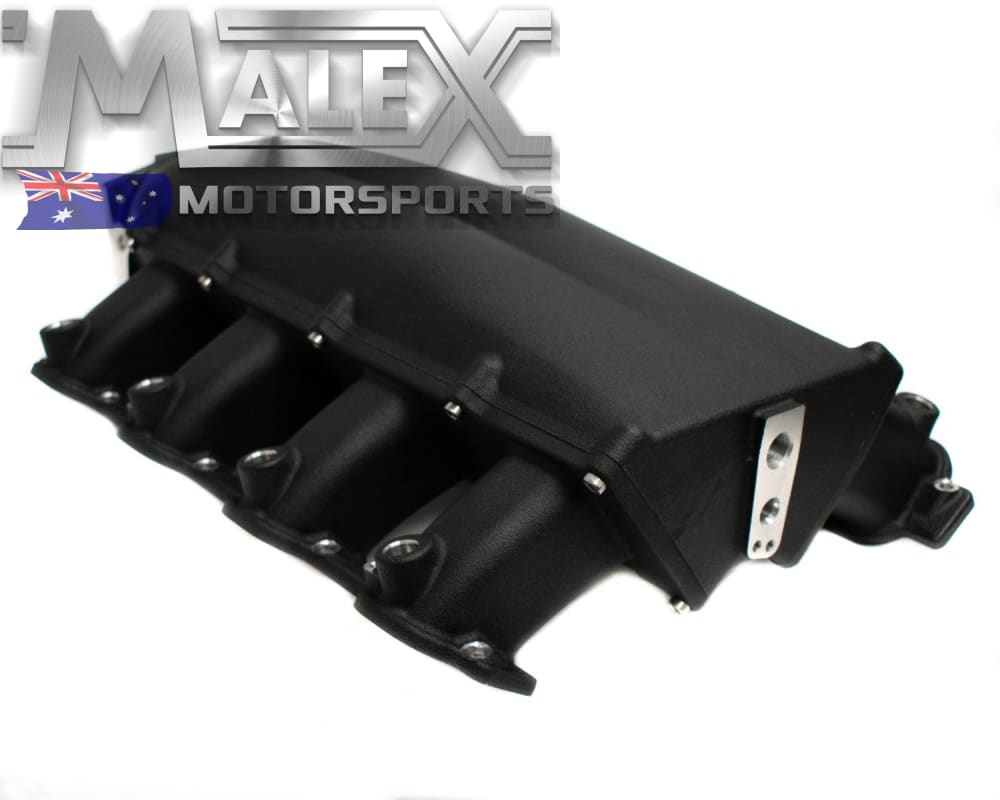

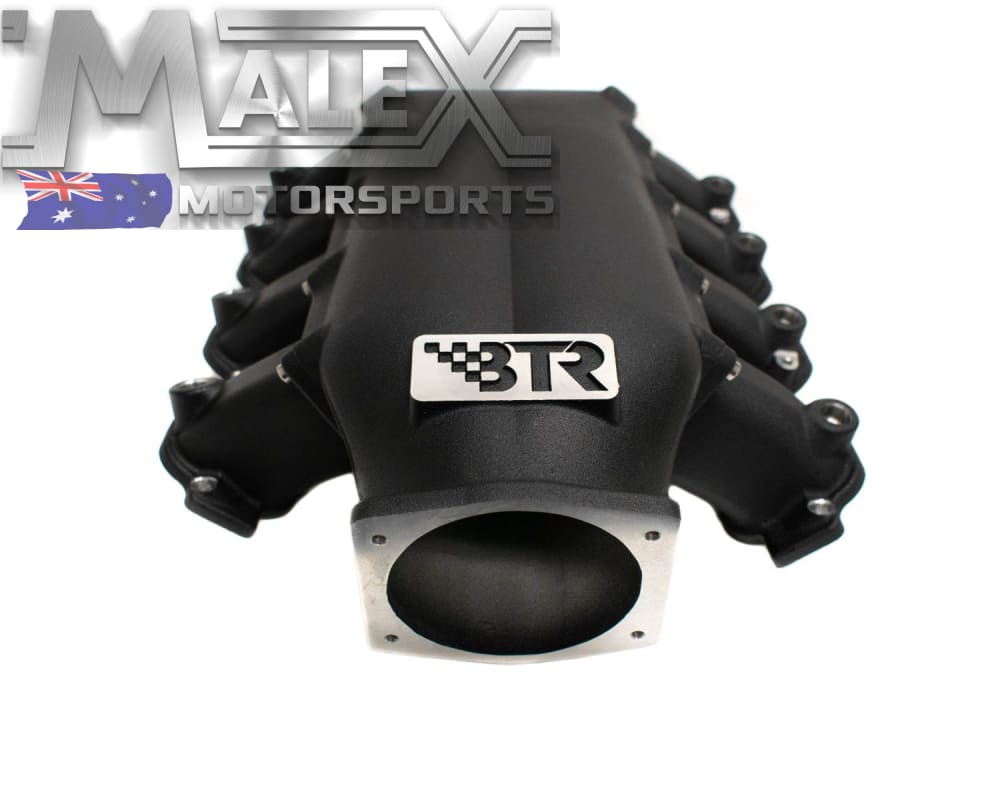

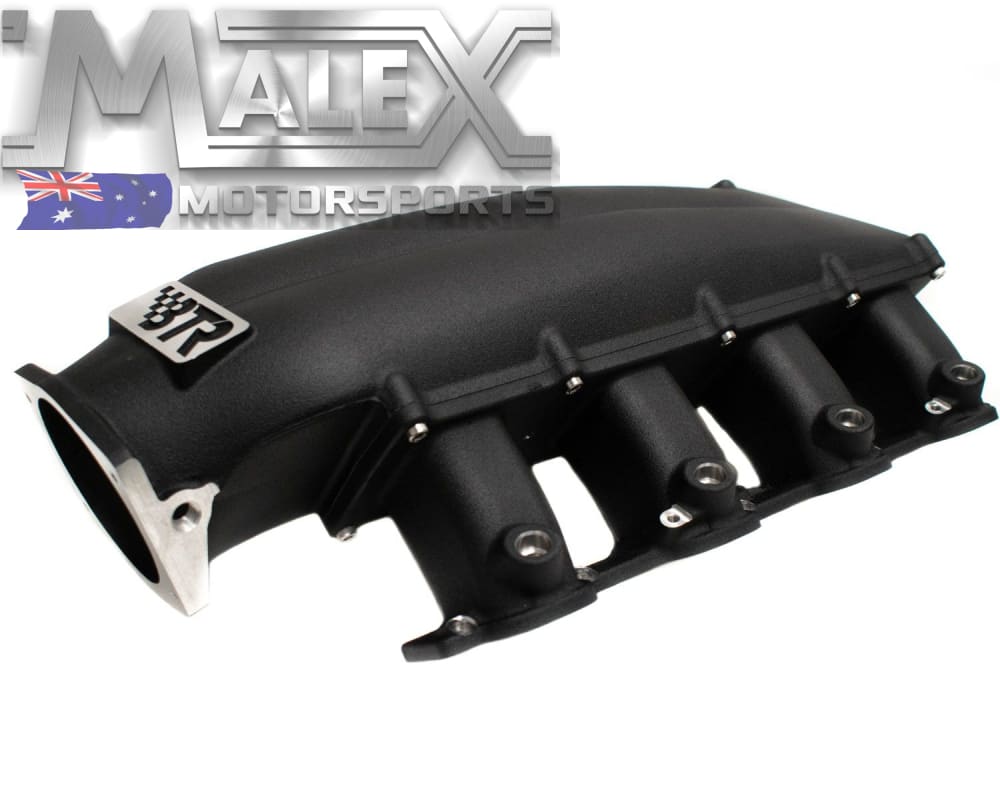

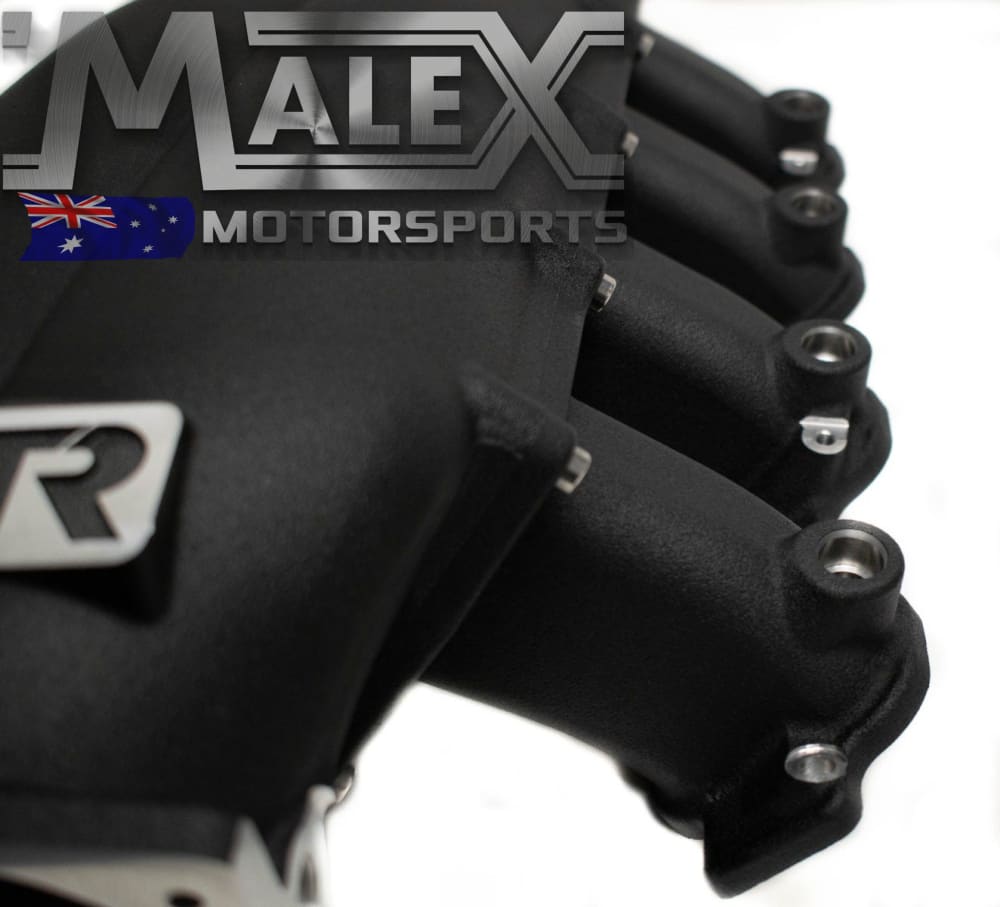

BTR GEN V Trinity Intake Manifold with injector Holes Black

BTR SKU    TRA-GENV-INJ-BLK
Length    24.000000
Width    15.000000
Height    9.000000
Weight    26.300000
Brand    Brian Tooley Racing
Part Type    Intake Manifold
Finish    BLACK
Manifold Material    CAST ALUMINUM
Fuel Rails Included    NO
Manifold Port Style    LTx - GEN V
Engine Type    Gen V LT
Manifold Fueling Style    EFI

The latest offering from BTR in high quality cast aluminum intake manifolds! TheTRInity is short runner, 3-piece design that allows for the ultimate in application flexibility. It is similar in concept to billet Intakes costing thousands more. Optimum operating range is 6000-8500 rpm and is primarily intended to bridge the gap between N/A and Boosted applications. It utilizes the high LT1 throttle body position and will accept DBW or cabled throttle bodies*, but yet it will fit in the tight confines of the C7, C6, C5 Corvette as well as the popular F-body platforms. The design incorporates 2 runners and an interchangeable plenum. The seal is generated by 8 entrapped o’rings at the runner/plenum interface, and is clamped by 20 -M6 Stainless steel socket head cap screws. The port seals are achieved SAE o’rings seated in a dovetailed o’ring groove. Both the port mouth radius and the port match is CNC machined. The TRInity incorporates 2-1/4 -27 NPT ports on the side of the throttle body boss and a 3/8-18” NPT on the rear. The manifold is available in Black Satin Texture powder coat. The manifold comes semi-assembled and includes all the hardware required to bolt it on. Runners and plenums can be purchased separately.

NOTE: 12663577 LT4 fuel line is recommended for optimal clearance. Will NOT work with LT4 cylinder heads!
