Name: SBC to LS Engine Conversion / Swap Bracket Engine Mount Billet Adaptors Set
Brand: ICT Billet
SKU: F3-551628LS
Price: 100.0 AUD
Availability: OutOfStock

Sbc To Ls Engine Conversion / Swap Bracket Mount Billet Adaptors Set Adapter

Price

Secure payments

In stock, ready to ship
Inventory on the way

Quantity

Description

LS Engine Swap / Engine Mount Brackets

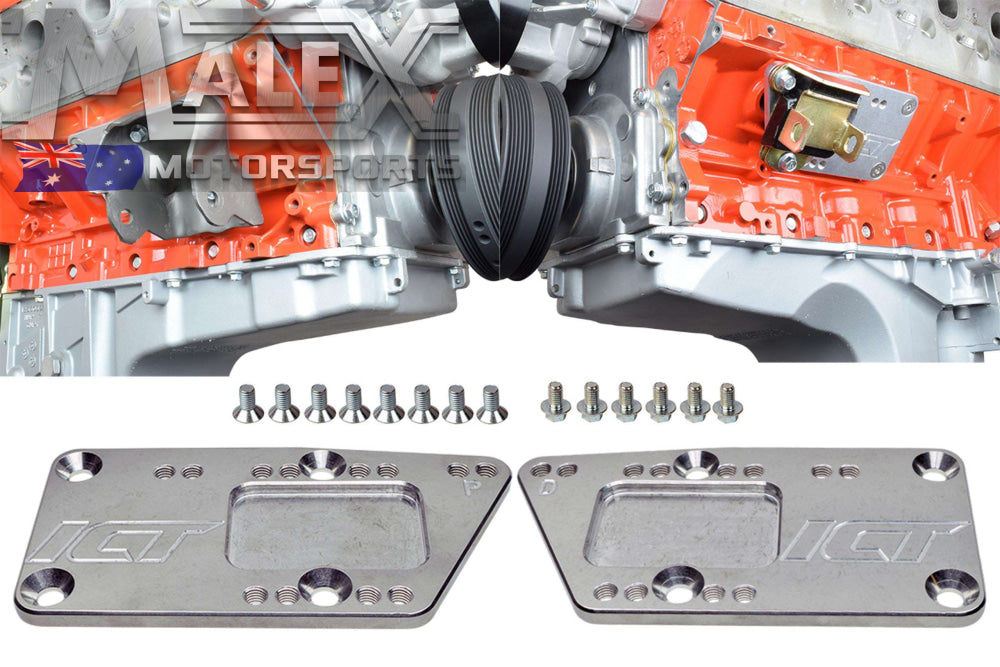

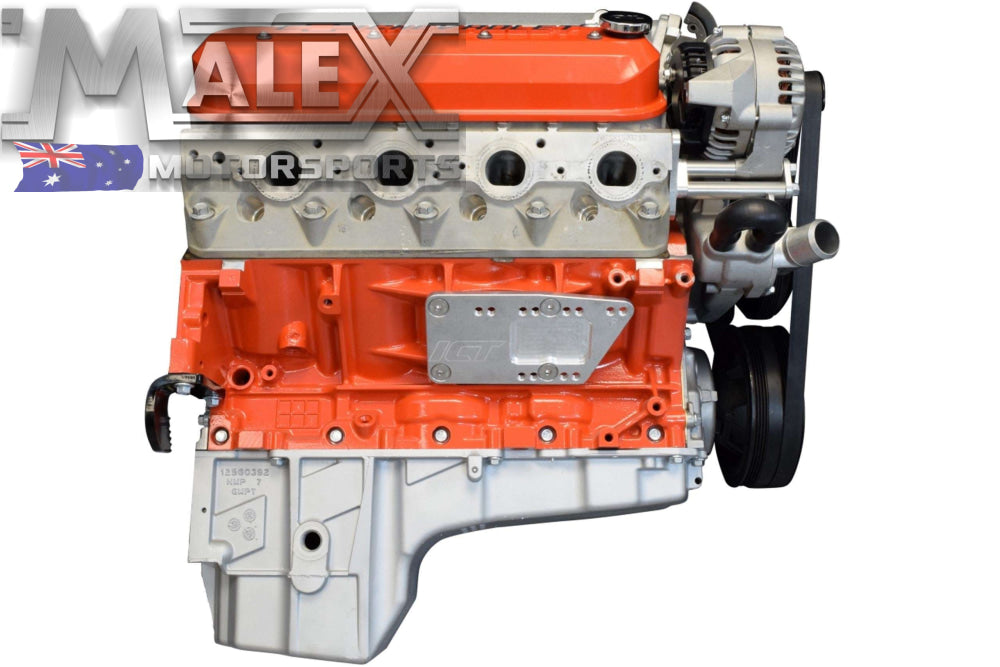

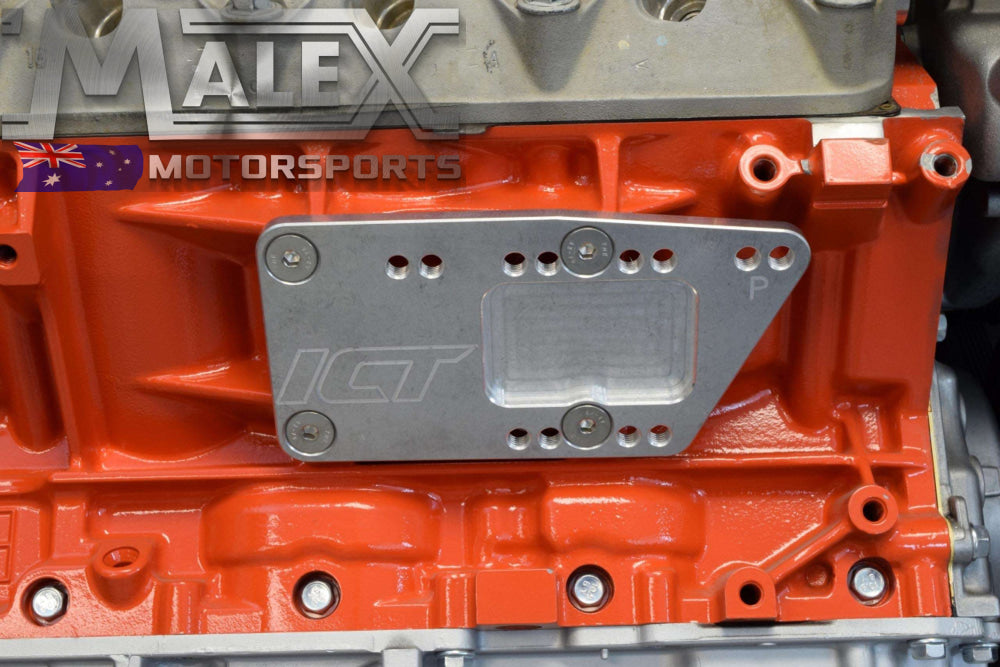

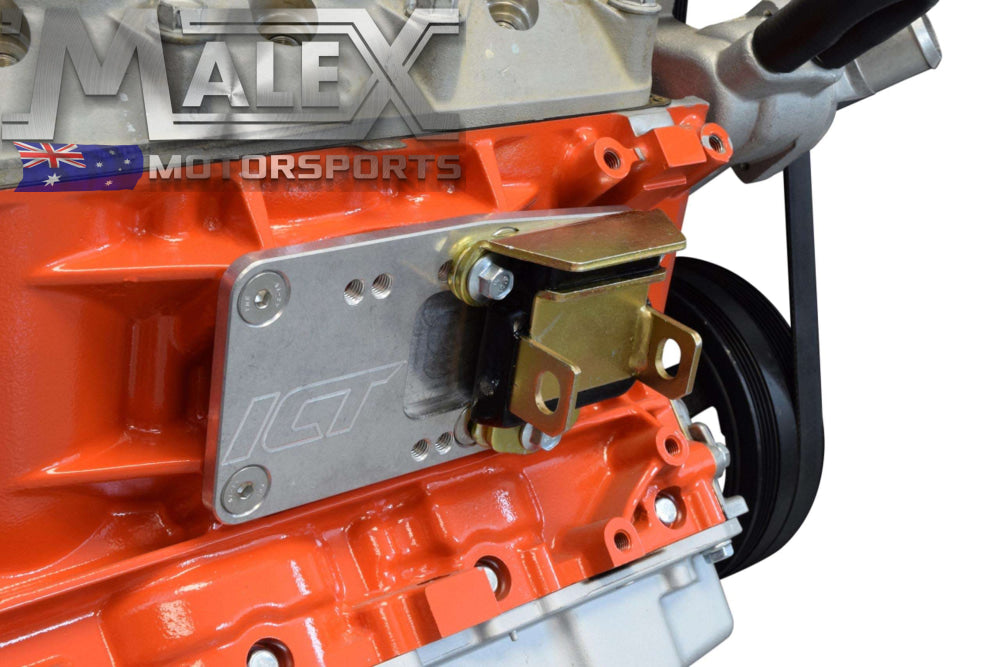

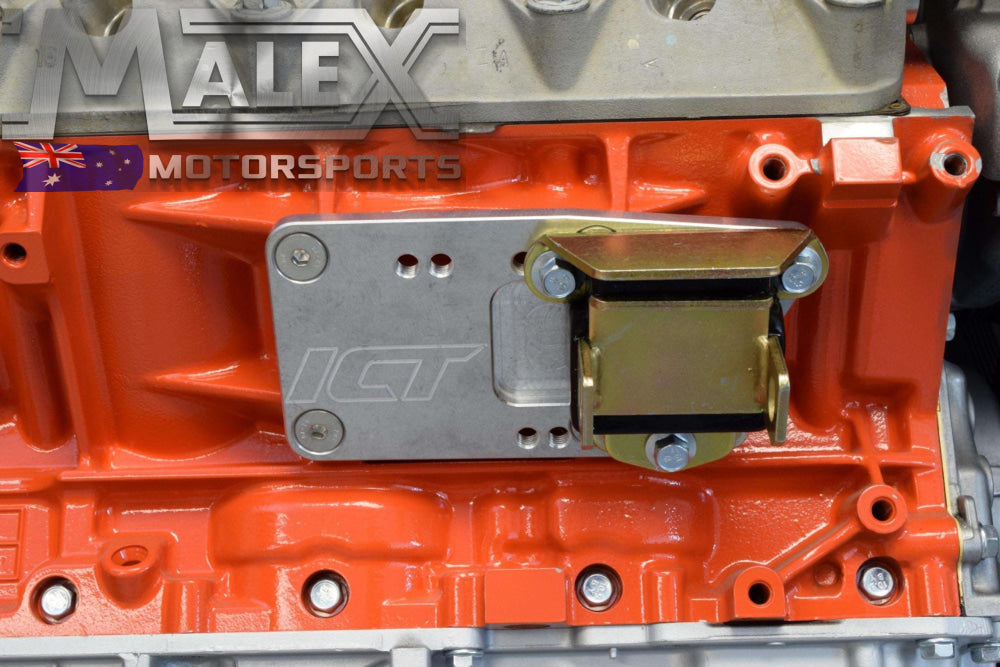

These brackets allow a LS series engine to be bolted into a vehicle that originally had a small block chevy engine with your existing mounts (see photos). ** Does Not Include Engine Mounts***

Made with OEM specifications for the best possible fitment into your vehicle
These plates will move the crankshaft centerline up .17" in the vehicle
Made in Wichita, Kansas from aerospace grade, USA produced, 3/8" billet aluminum

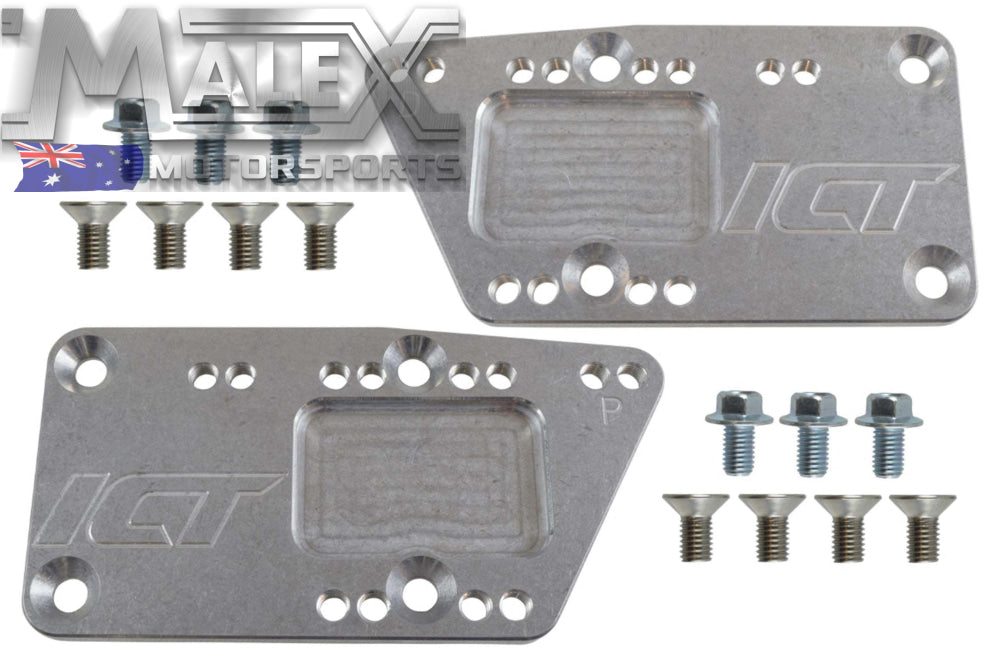

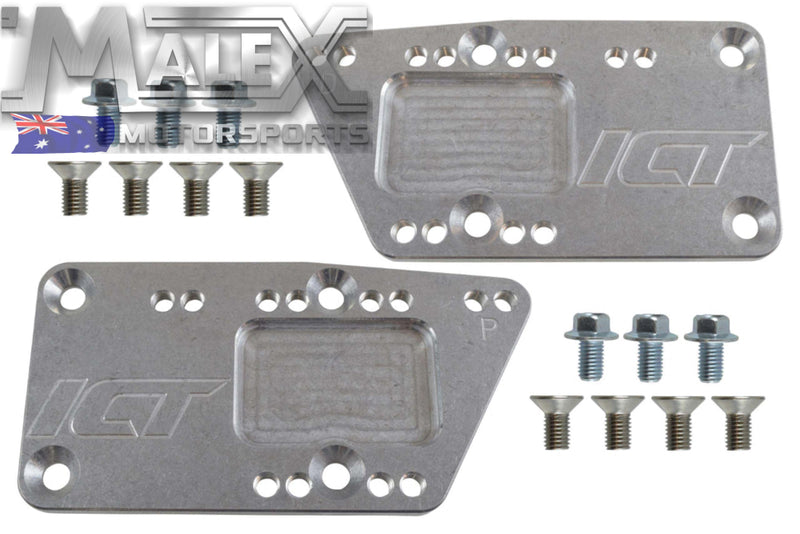

Includes: 2 adapter plates, 8 flat head bolts, and 6 flange M10-1.5 bolts (plates are M10 threaded, use the hardware included)
Natural aluminum finish

There are 4 positions for maximum adjustment of engine (from .100" forward of OEM bellhousing position [due to bolt interference, OEM location is not possible for any brand of flat style swap plates] ~forward most position shown in photos~, Secondary positions are: .600", 1.86", and 2.36" engine moved forward) These swap plates will shift the crankshaft centerline up .177" above factory small block location. At ICT Billet we use GM factory specifications to determine exact mounting locations for the most accurate engine positioning.
