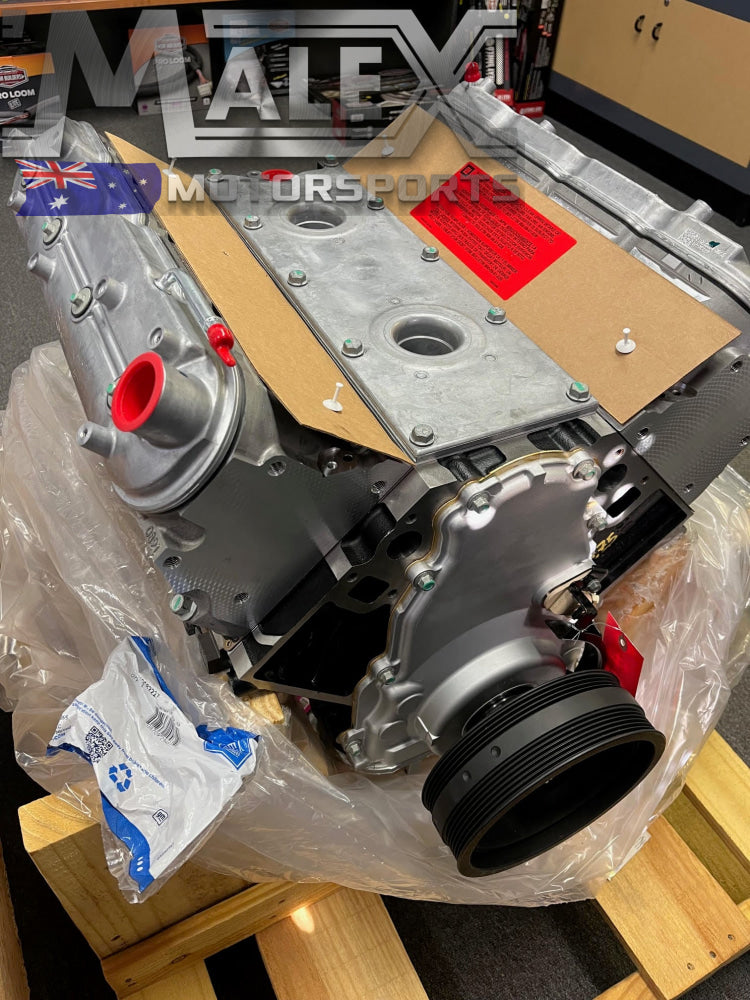

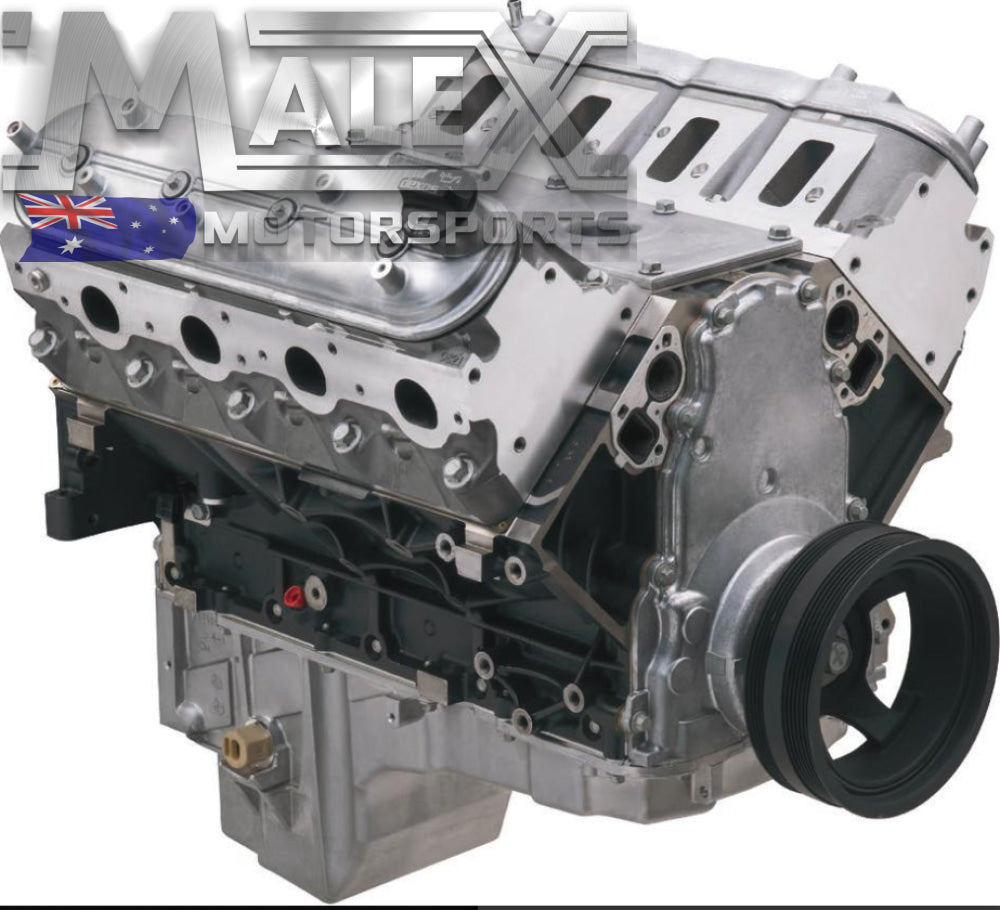

Chevrolet Performance have put together this all new Gen 3 450HP 6.0L Iron combination crate engine.
LS364/450 is a great powerful GM option easily fitted to to LS1/ 5.7 equipped commodores or a durable choice for all new builds.
The Only Gen III GM crate engine option. With 24 tooth reluctor
- 24X crank reluctor to suit Gen III engine management systems. So this will run off your VT to VZ ECU but will require tuning.
- LS3 rectangular port cylinder heads which feature light weight sodium filled intake valves.
- Requires square port intake. Adapter plates available to mount three bolt gen III throttle bodies to Square port manifolds.
- Features a high lift LS6 camshaft for a broad torque range.
- Strong LQ9 iron block
- Fitted with a LQ9 rear hump sump
- Can be fitted with a carburettor
TECH SPECS
Part Number: 19370163
Engine Type: Performance LQ9 long block
Displacement (cu in): 364 cu in (6.0L)
Bore x Stroke (in): 4.000 x 3.622 in (101.6 x 92 mm)
Block: Cast iron with 6-bolt block, cross-bolted main caps
Crankshaft: Nodular iron
Connecting Rods: Powdered metal
Pistons: Hypereutectic aluminium
Camshaft Type (P/N 12565308): LS6 hydraulic roller
Valve Lift (in): 0.550 intake / 0.550 exhaust
Camshaft Duration (@.050 in): 204º intake / 218º exhaust
Cylinder Heads: LS3 rectangular port; aluminium, as-cast with 68cc chambers
Valve Size (in): 2.165 intake (hollow stem) 1.590 exhaust (solid stem)
Compression Ratio: 10.3:1 (nominal)
Rocker Arms: Investment cast, roller bearing trunnion
Rocker Arm Ratio: 1.7:1
Recommended Fuel: Premium pump
Maximum Recommended rpm: 6,800
Reluctor Wheel: 24X
Balanced: Internal
Bank Transfer only on this item (1.35% surcharge if paid by card)
Comes in original GM crate
Please call if you need an accurate freight quote.
