LS Cam Bearings DURA-BOND USA suit 1997-2003 LS1 LQ4 CH10

SKU: R2-CH10
Ls Cam Bearings Dura-Bond Usa Suit 1997-2003 Ls1 Lq4 Ch10
Ls Cam Bearings Dura-Bond Usa Suit 1997-2003 Ls1 Lq4 Ch10
Ls Cam Bearings Dura-Bond Usa Suit 1997-2003 Ls1 Lq4 Ch10

LS Cam Bearings DURA-BOND USA suit 1997-2003 LS1 LQ4 CH10

SKU: R2-CH10
Regular price $45.00
/
  • Secure payments
  • In stock, ready to ship
  • Inventory on the way
Tax included.
Description

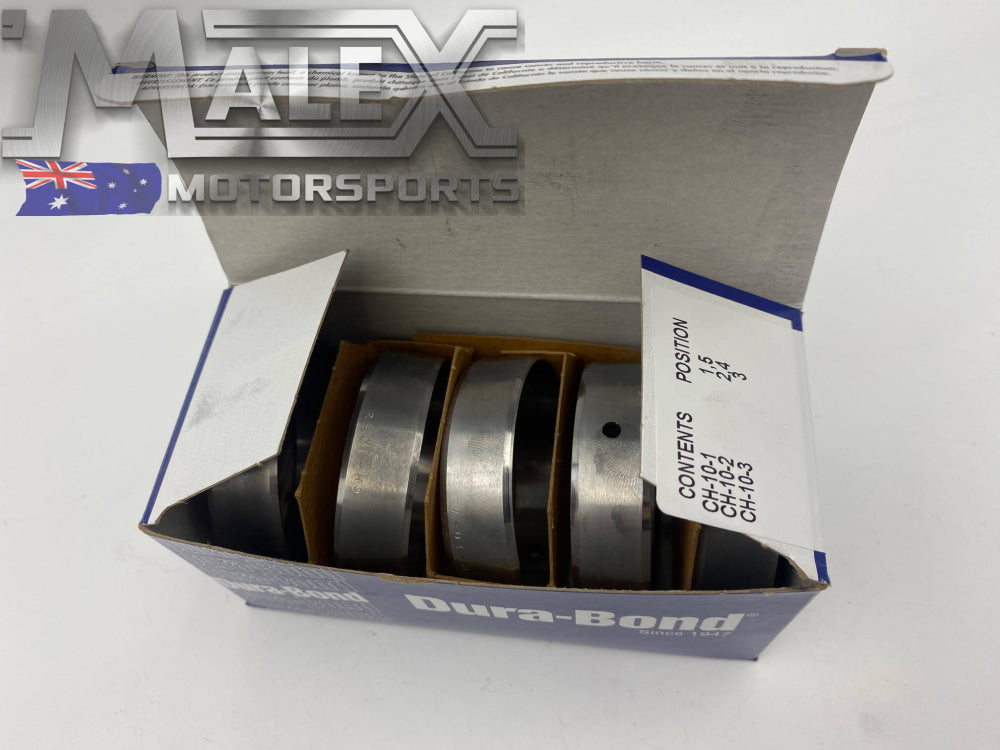

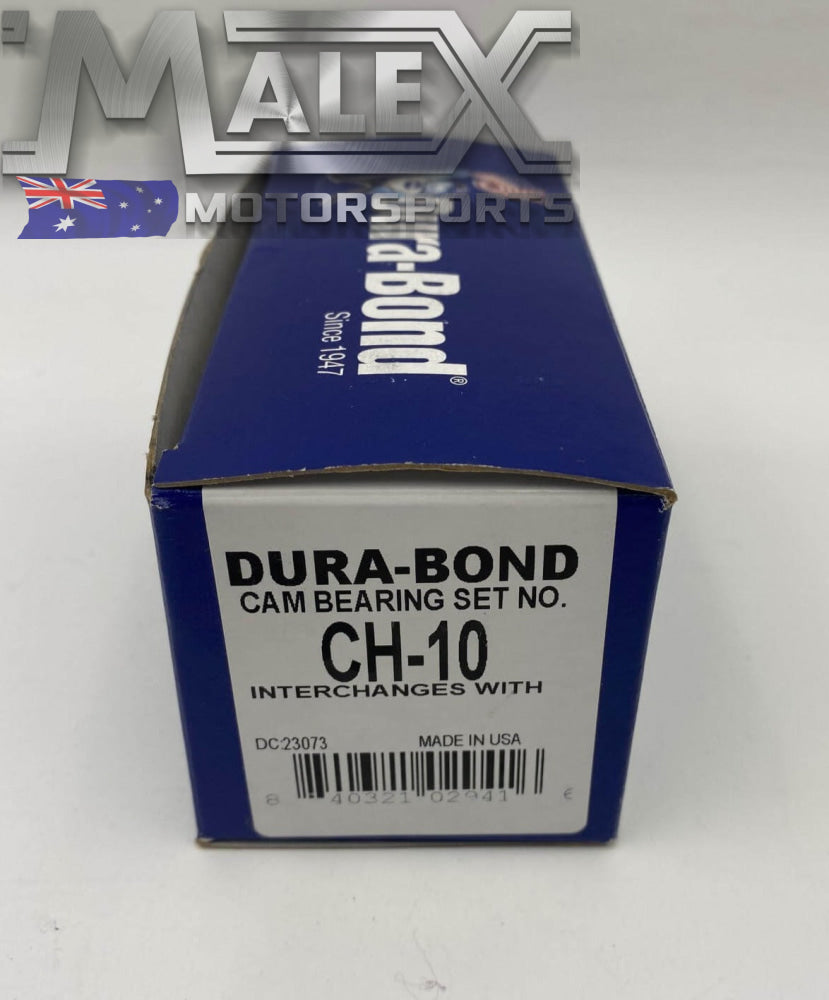

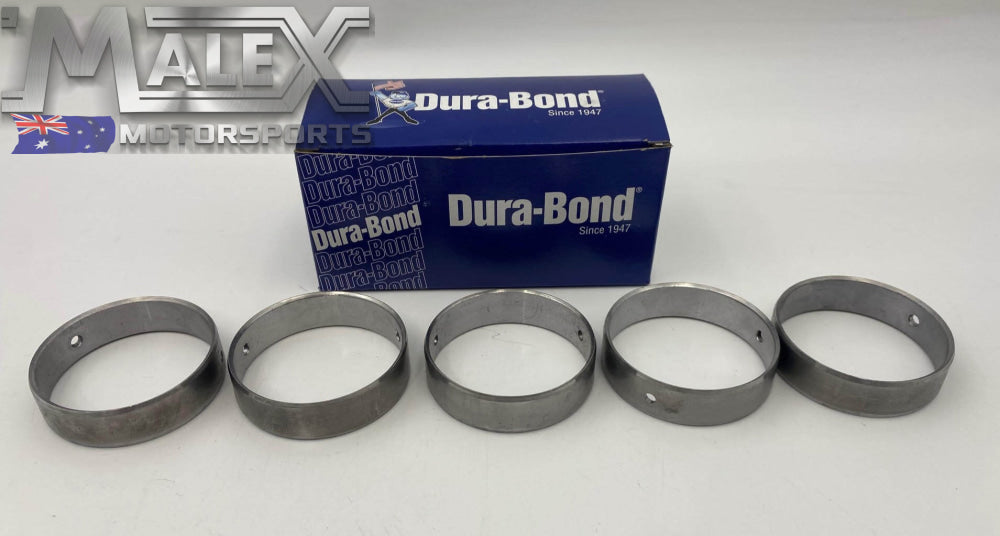

New DURA-BOND cam bearings. Part number CH10. Suits 1997-2003  LS engines with cam tunnel bores 1 and 5 having a diameter of 2.327"

Will not fit later type LS engines that started in 2003 as they have .020" bigger tunnel on number 1 and 5. If you are unsure you may need to measure your old bearings or cam tunnel.

Quality US Made bearings

For the Later type( 2003 on) with tunnel positions 1-5 measuring 2.347" see our other listing for CH25DURA-BOND bearings

  • 1st Design - Part # CH10: Fits 1997-2003 engines where the block housing bore on positions 1 and 5 measures 2.3270"" & bearing width is: 0.630"
  • 2nd Design - Part # CH23: Fits 2003-2007 engines where the block housing bore on positions 1 and 5 measures 2.3470" & bearing width is: 0.630"
  • 3rd Design - Part # CH25: Fits 2007-2013 engines where the block housing bore on positions 1 and 5 measures 2.3470" & bearing width is: 0.775"
  • Here at Malex Motorsports all of our items are in stock in our Sydney based store, ready to ship or pick up.
  • NOW IN SMEATON GRANGE!
