BTR Trinity Intake manifold Cathedral Port LS1 LS2

SKU: TRA-1-P105
Btr Trinity Intake Manifold Cathedral Port Ls1 Ls2
Btr Trinity Intake Manifold Cathedral Port Ls1 Ls2
Btr Trinity Intake Manifold Cathedral Port Ls1 Ls2
Btr Trinity Intake Manifold Cathedral Port Ls1 Ls2
Btr Trinity Intake Manifold Cathedral Port Ls1 Ls2
Btr Trinity Intake Manifold Cathedral Port Ls1 Ls2

BTR Trinity Intake manifold Cathedral Port LS1 LS2

SKU: TRA-1-P105
Regular price $1,450.00
/
  • Secure payments
  • Low stock - 1 item left
  • Inventory on the way
Tax included.
Description

The TRInity Series Intake Manifold for cathedral Port LS1 S2

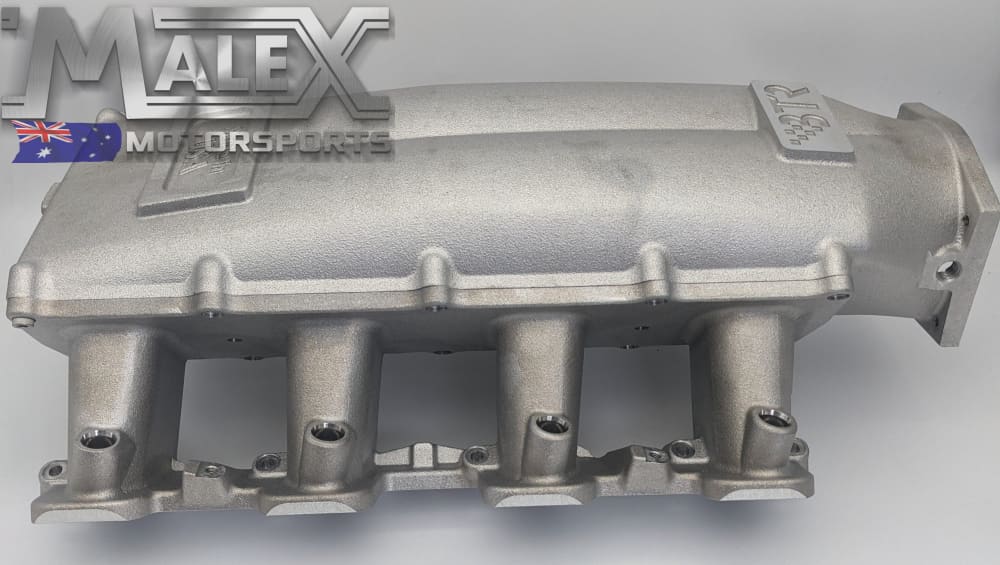

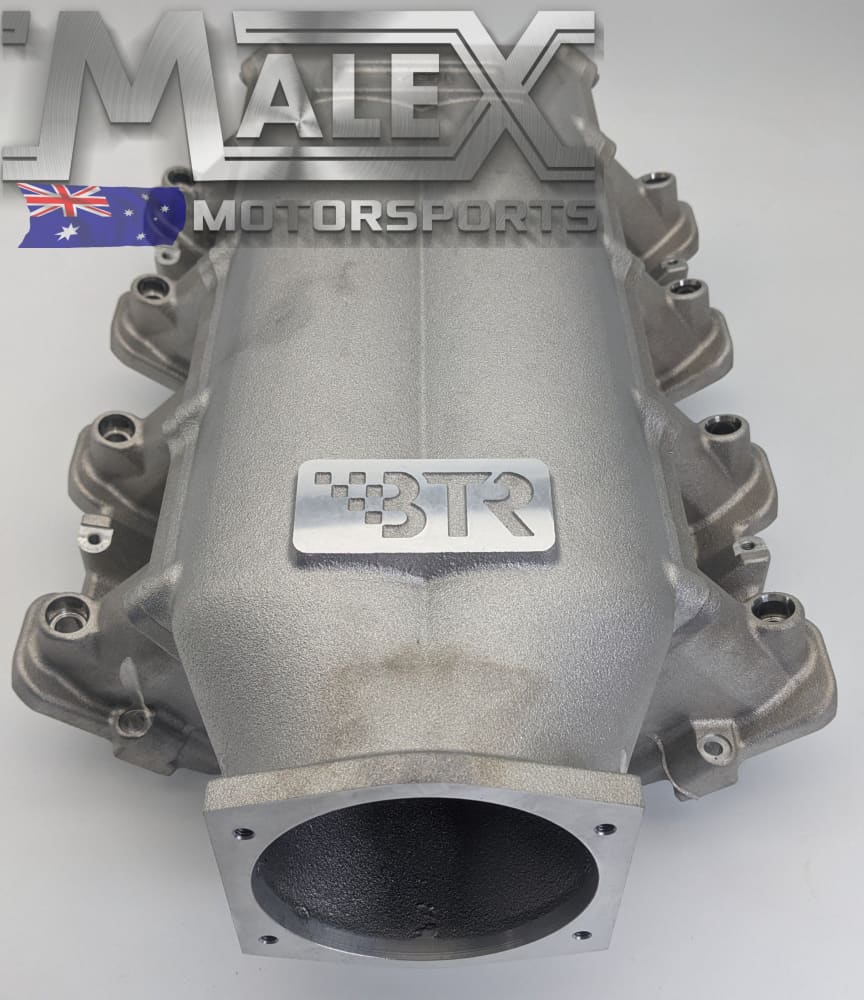

The Trinity is a cast aluminum intake manifold. With a short runner, 3 piece design which allows for application flexibility. No need to spend big $$ on a billet Intake with this cost affective Manifold. Optimum operating range is 6000-8500 rpm and is primarily intended to bridge the gap between N/A and Boosted applications.

The design incorporates 2 runners and an interchangeable plenum
The seal is generated by 8 entrapped o’rings at the runner/plenum interface, and is clamped by 20 -M6 Stainless steel socket head cap screws

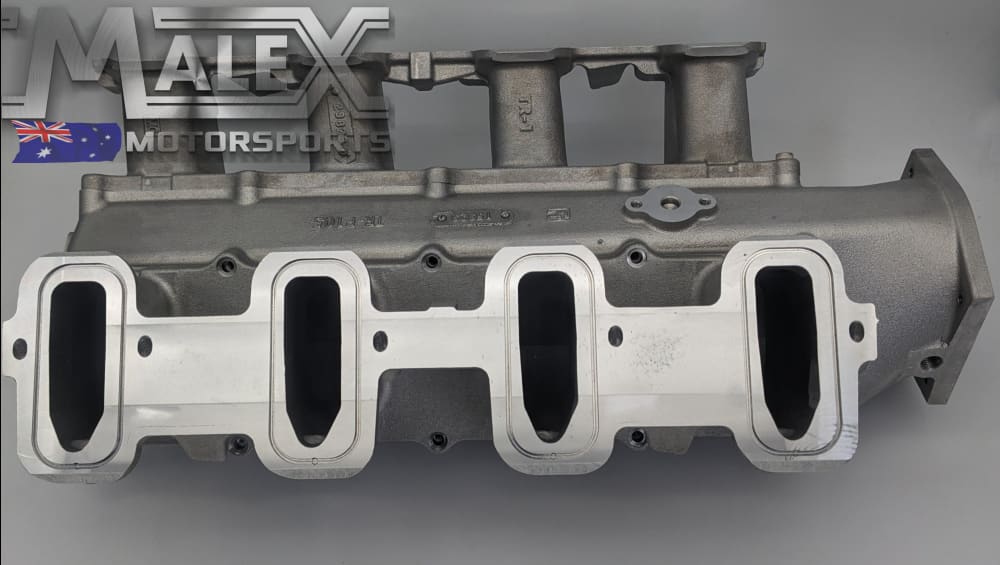

The port seals are achieved SAE o’rings seated in a dovetailed o’ring groove

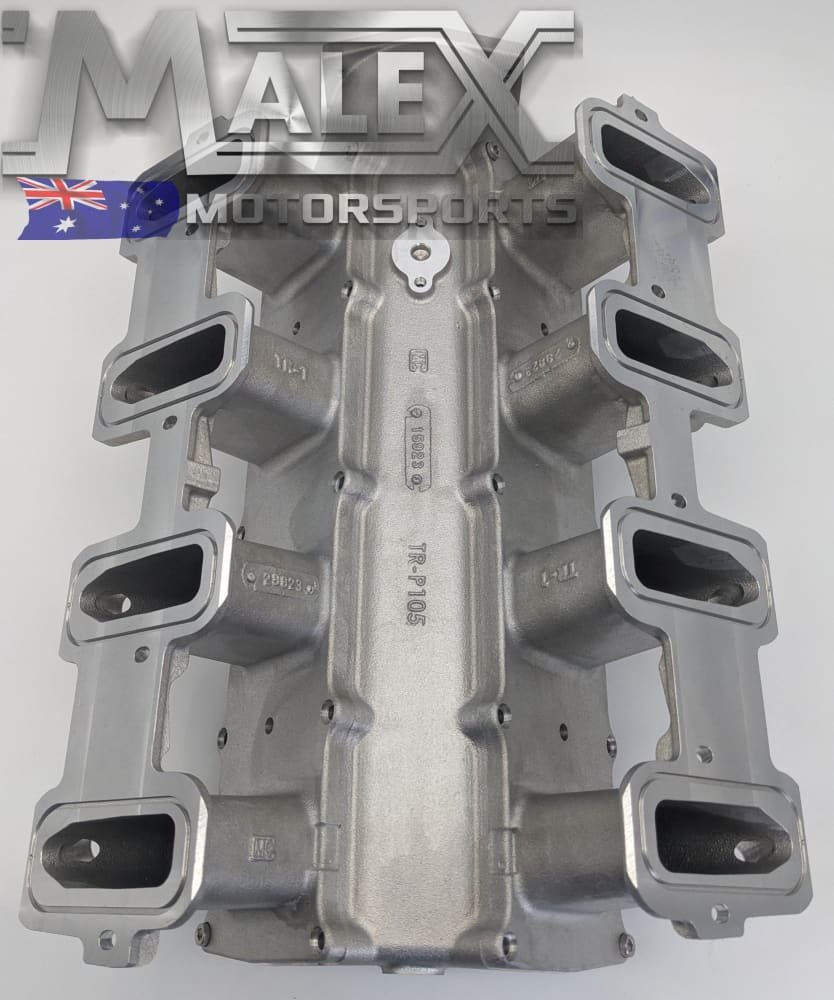

Both the port mouth radius and the port match is CNC machined

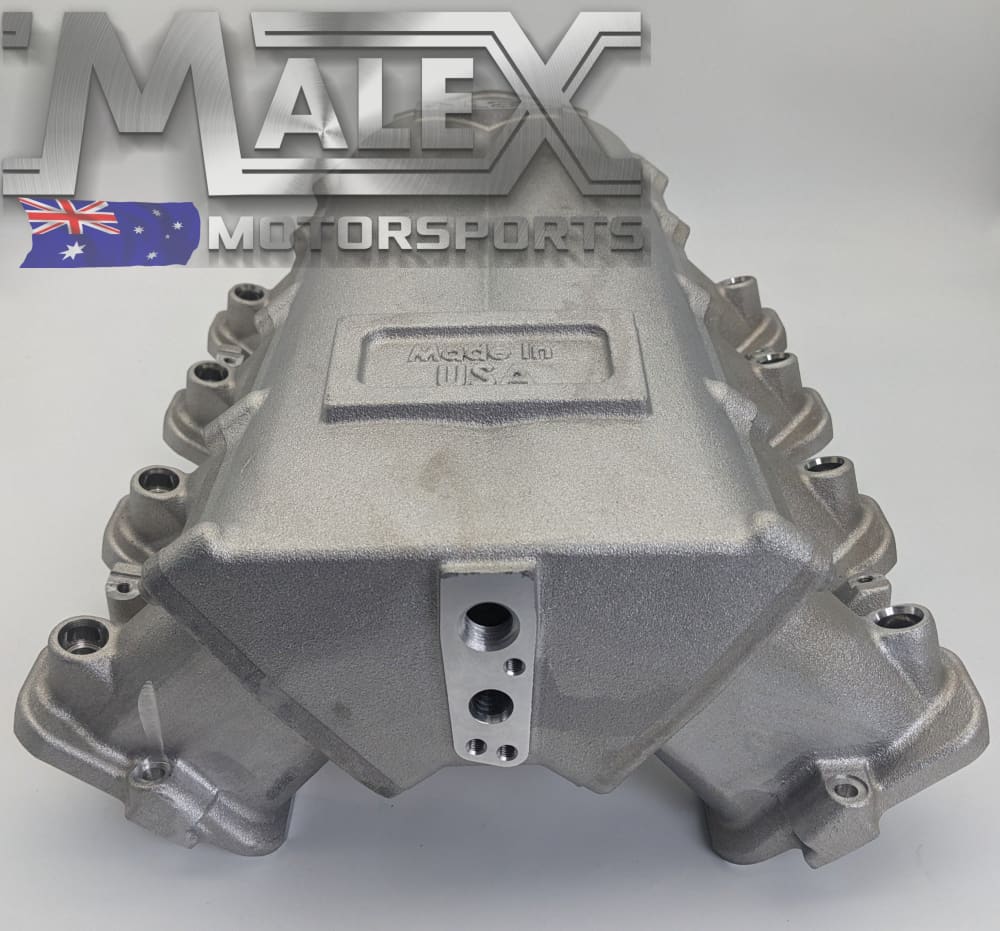

The TRInity incorporates 2-1/4 -27 NPT ports on the side of the throttle body boss and a 3/8-18” NPT on the rear

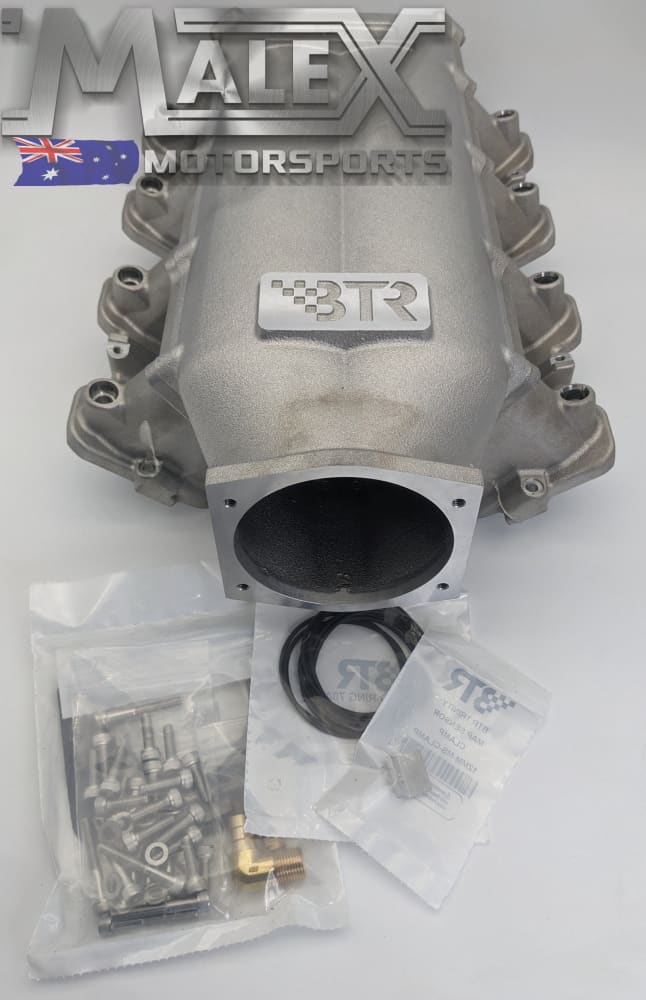

The manifold comes semi-assembled and includes all the hardware required to bolt it on.
Runners and plenums can be purchased separately.

NOTE: THIS MANIFOLD USES OUR NEW STYLE FRK-02 FUEL RAIL KIT.

NOTE: A STOCK LS1 MAP SENSOR WILL NOT WORK.
