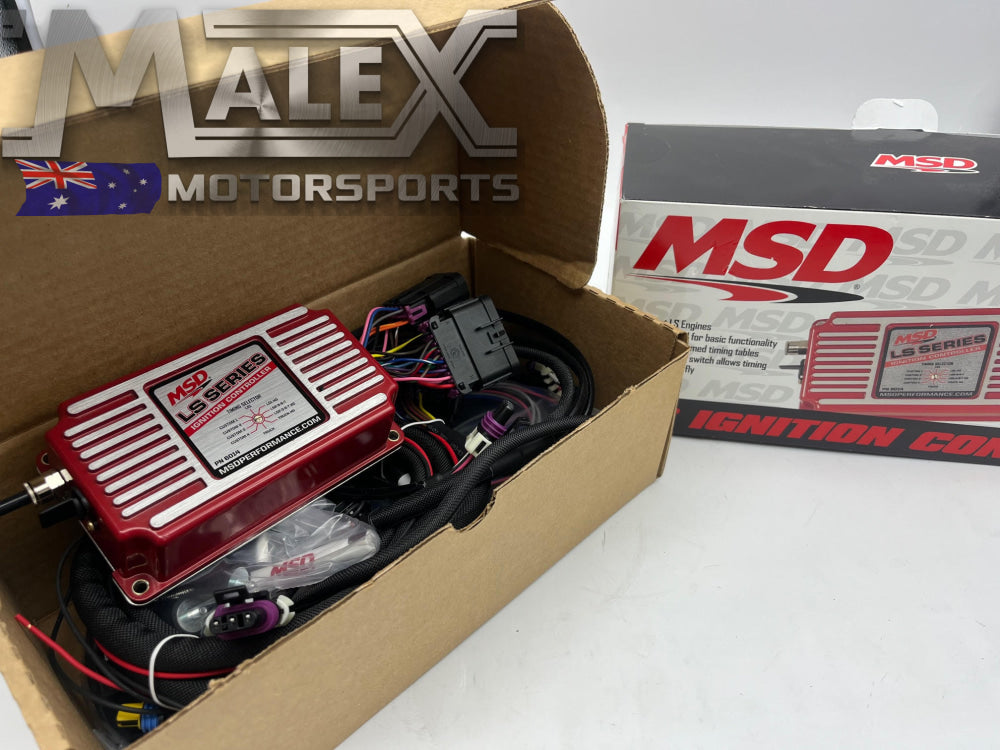

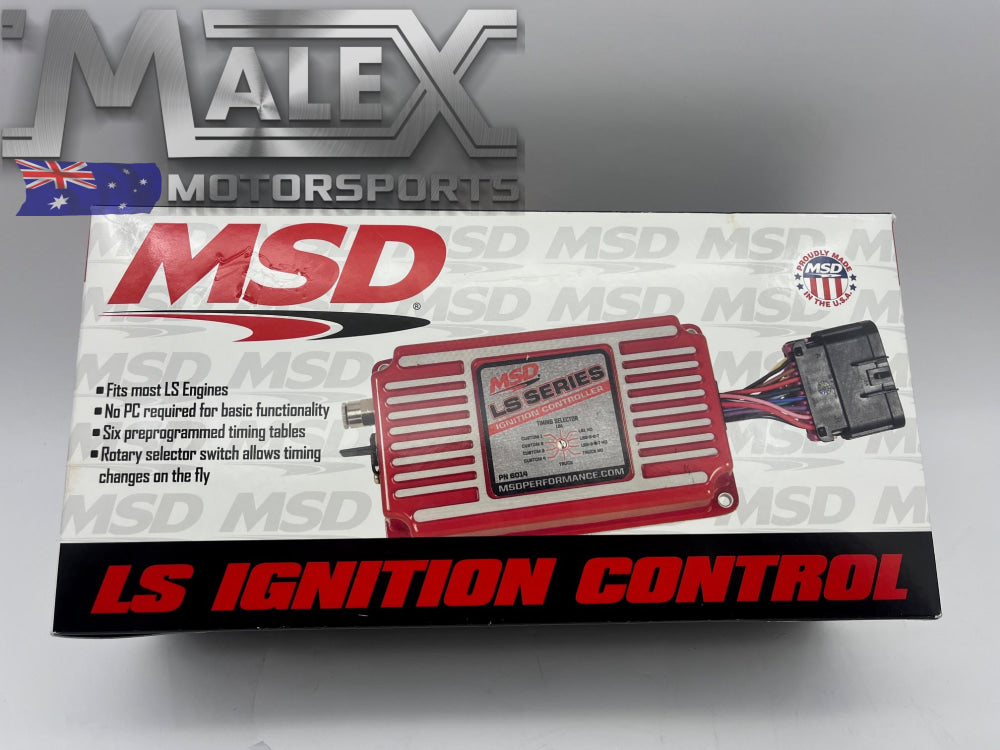

MSD 6014 LS Ignition Controller for Carburettor LS
Made in The USA using all genuine Delphi plugs.
- Fits most LS Engines
- No PC required for basic functionality
- Six preprogrammed timing tables for easy setup
- Rotary selector switch allows timing changes on the fly
- Nitrous and boost compatible
- High speed data acquisition
- Fully Sealed direct plugin connectors
- Programmable step retard
- Launch and max rev limiters
- Optional coolant temperature sensor input
- Launch retard
- Idle timing control
- Individual cylinder timing
- Compatible with all MSD, Accel and GM LS coils
- 8MB of internal data logging is also included so you can set up, record, and review passes at the track.
The MSD 6014 LS Ignition controller works with 24x/1x and 58x/4x crank/cam configurations. It auto-detects the correct configuration based on the reluctor wheel pattern, so there is no need to select one. It provides six pre-programmed (non-editable) timing tables for stock engines, three customizable 3-D tables, and one customizable timing plot. The desired table/plot is selected on the fly using the rotary dial. The customizable tables and plots can be programmed via MSDView.
