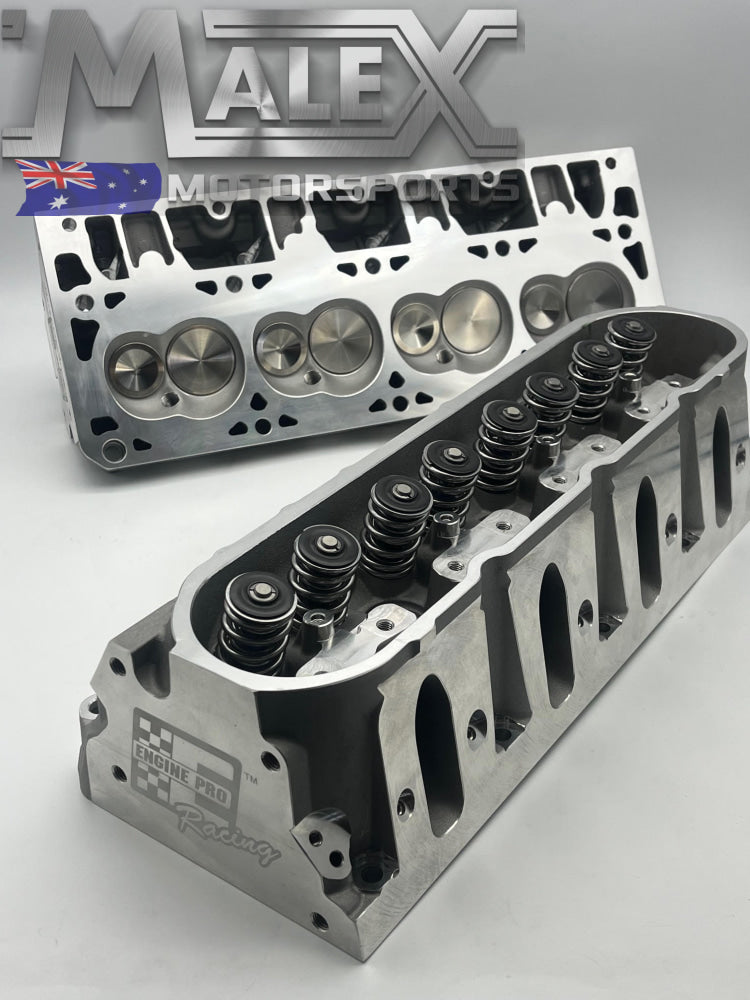

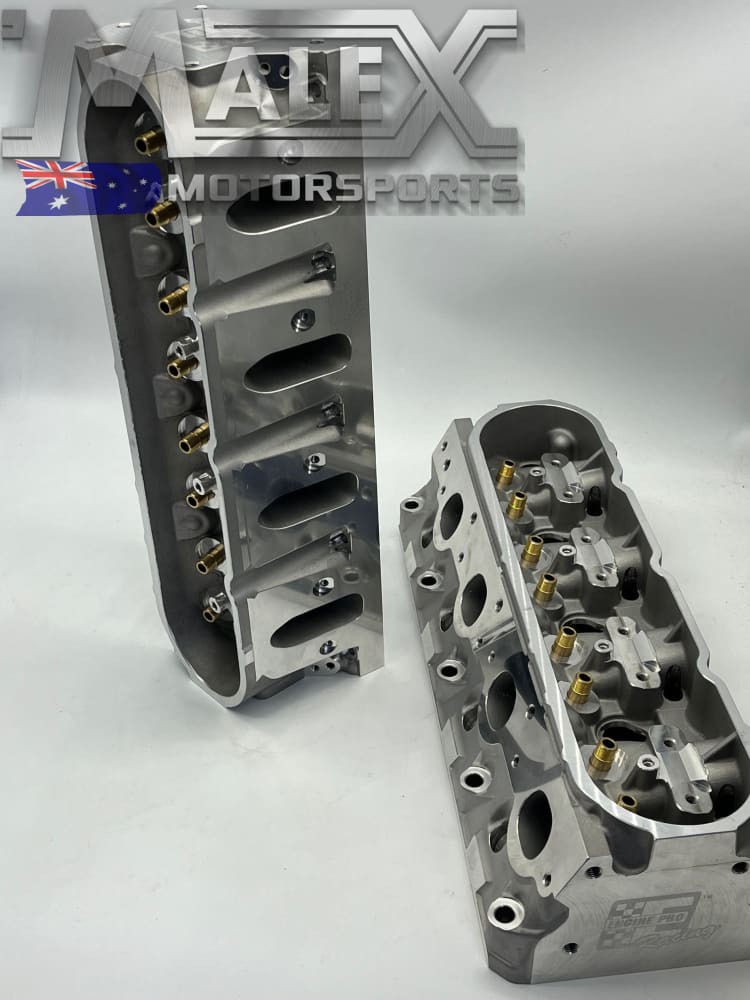

Bare Heads Pair - Cathedral Intake Ports 235cc, 15 Degree Valve Angle

will accept factory LS1 LS2 rockers and Cradle

These are a direct replacement upgrade for Cathedral port LS heads as found on LS1 LS2 LS6 LS engines. Having Bronze guides you will require spring bases to suit (with an ID of .565"). We have these available.

with a 235 CC intake runner they are bigger than the 211cc port in a 243 head and 200cc in a 241 head. They also have a 63cc combustion chamber to help bump up the comp for those naturally aspirated engines.

Suits VT-VZ 5.7 engines and 6.0L HSV engines(ls2)

OE 4 Head Bolt Design

Material | Aluminium

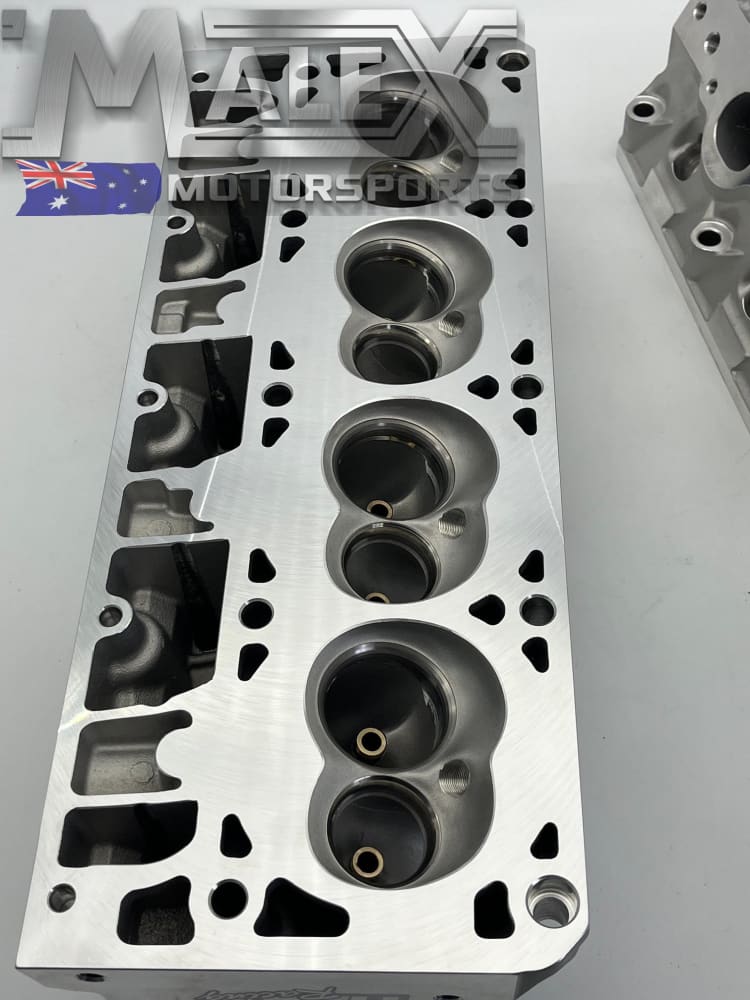

Combustion Chamber Volume | 63cc
Intake Runner Volume | 235cc

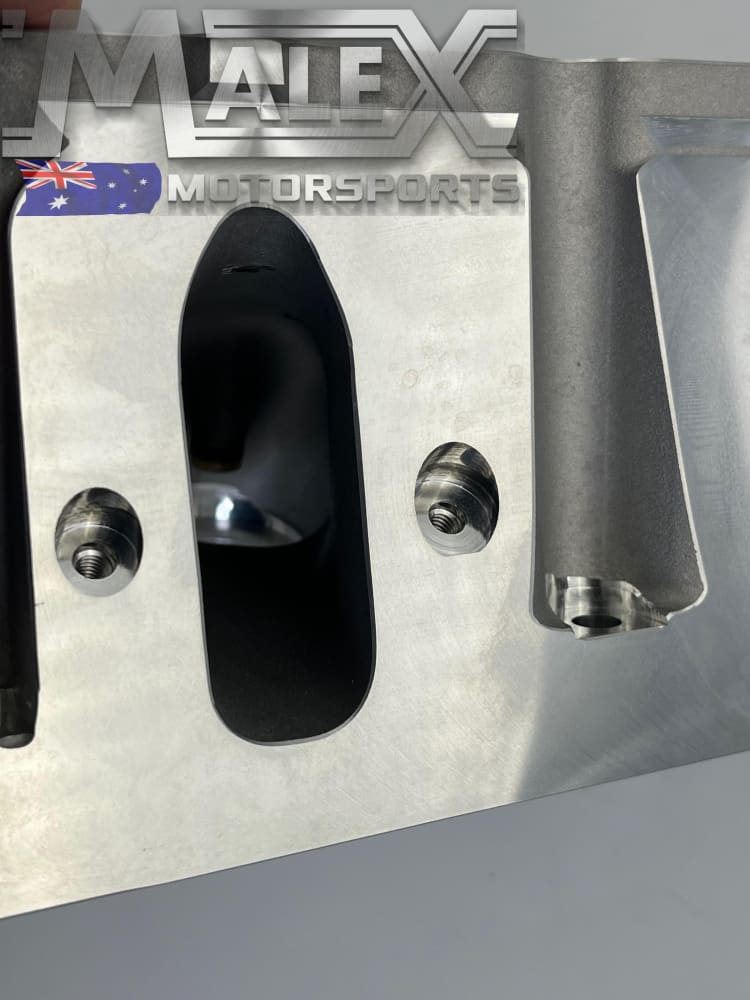

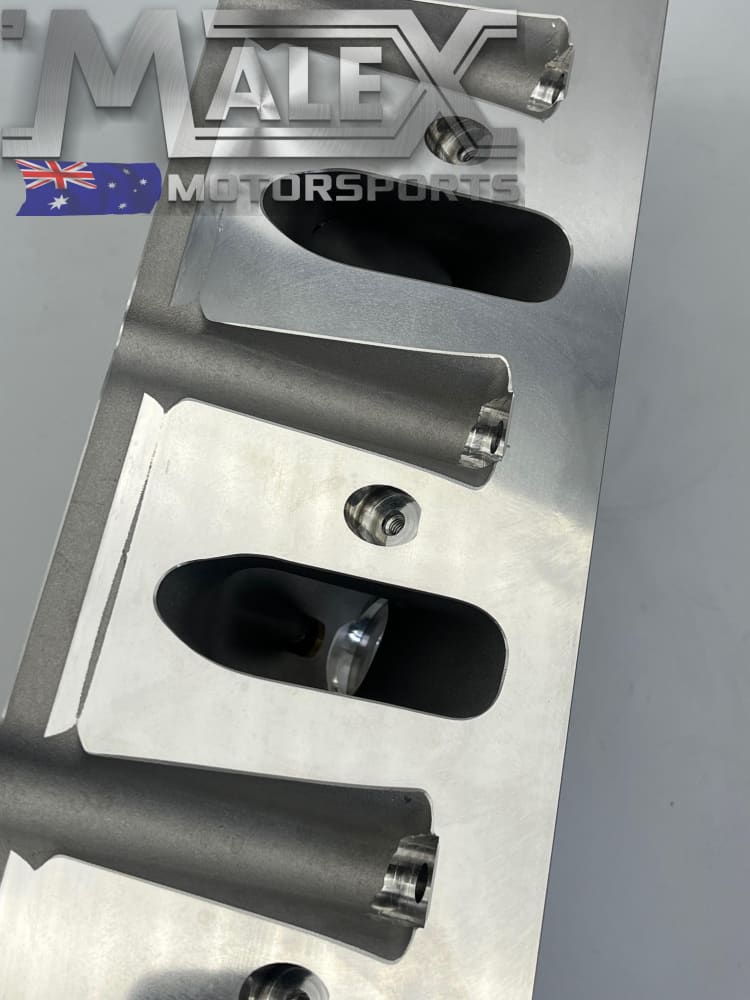

Intake Port Size H x W | 3.23" X 1.10"
Exhaust Runner Volume | 93.6cc

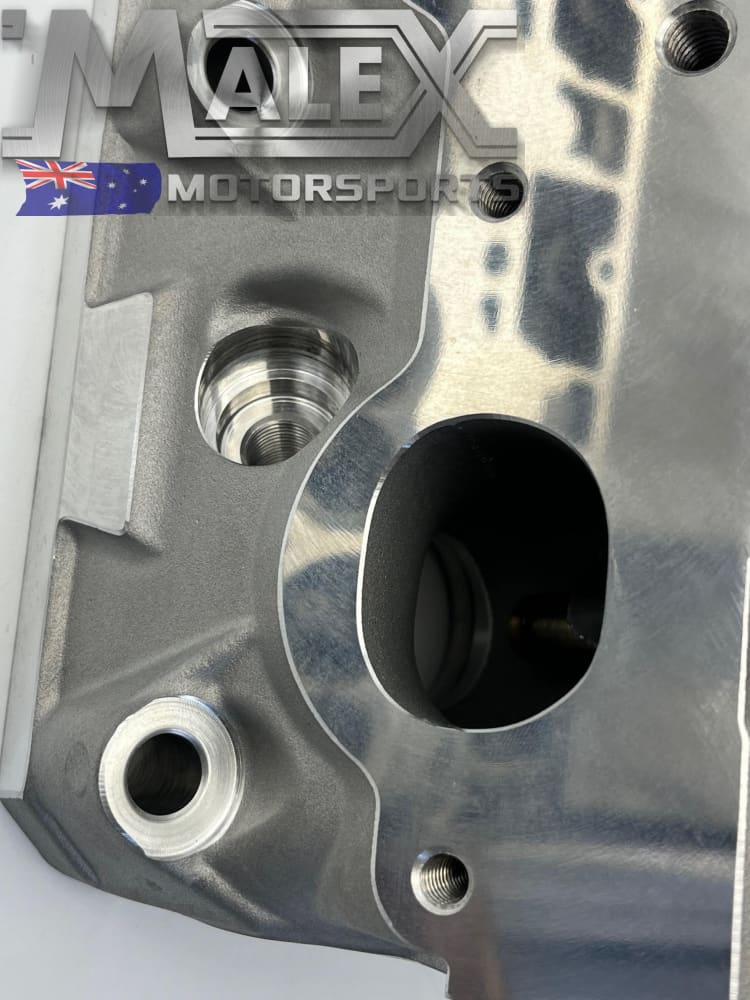

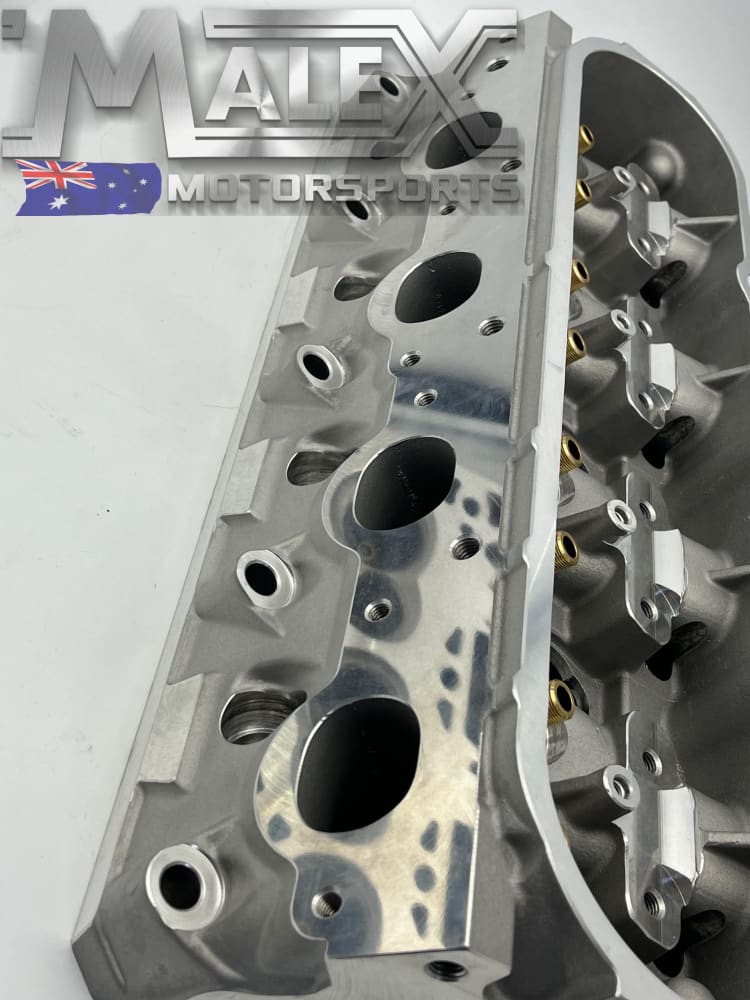

Exhaust Port Size H x W | 1.41"X 1.71"
Intake Valve Size | 2.020"
Exhaust Valve Size | 1.600"
Valve Stem Diameter | 8.00mm
Valve Length | Standard Length
Valve Angle | 15 Degree
Valve Guide Seal Diameter | 0.500"

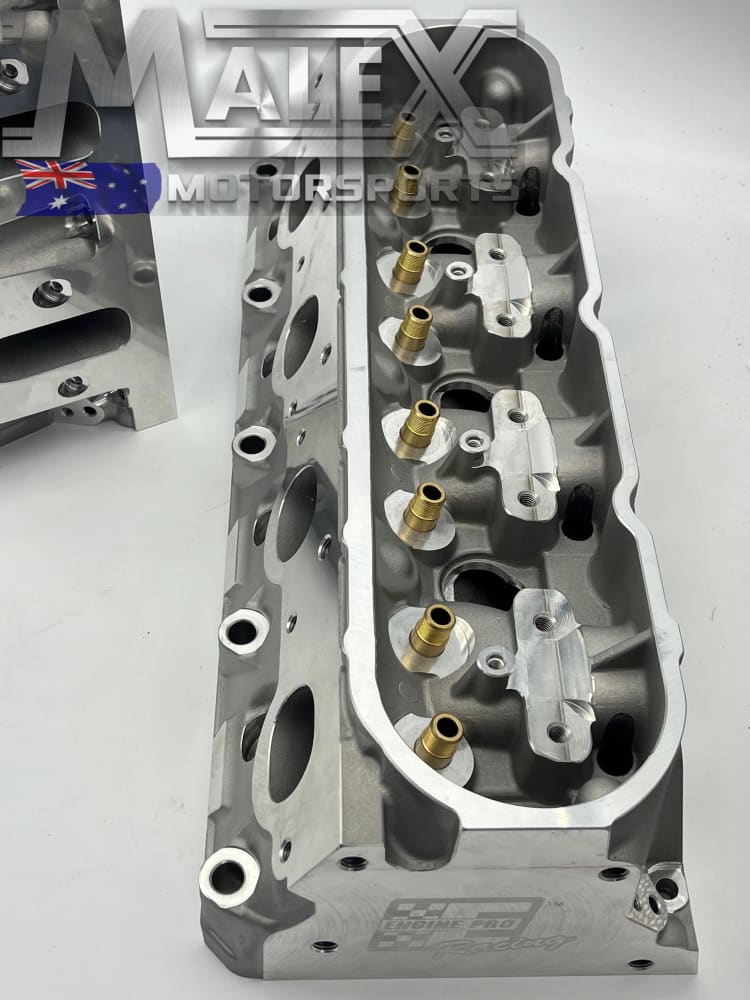

Valve Guide Material | Manganese Bronze
Valve Spring Base Diameter | 1.358"
Rocker Type | LS1
Deck Thickness | 0.625"
