BTR LS Crankshaft 3.622" Stroke W/O Reluctor 4340 Forged LS1 LS2 LS3

SKU: BTRAC3622F1NR
/
  • Secure payments
  • Low stock - 1 item left
  • Inventory on the way
Tax included.
Description

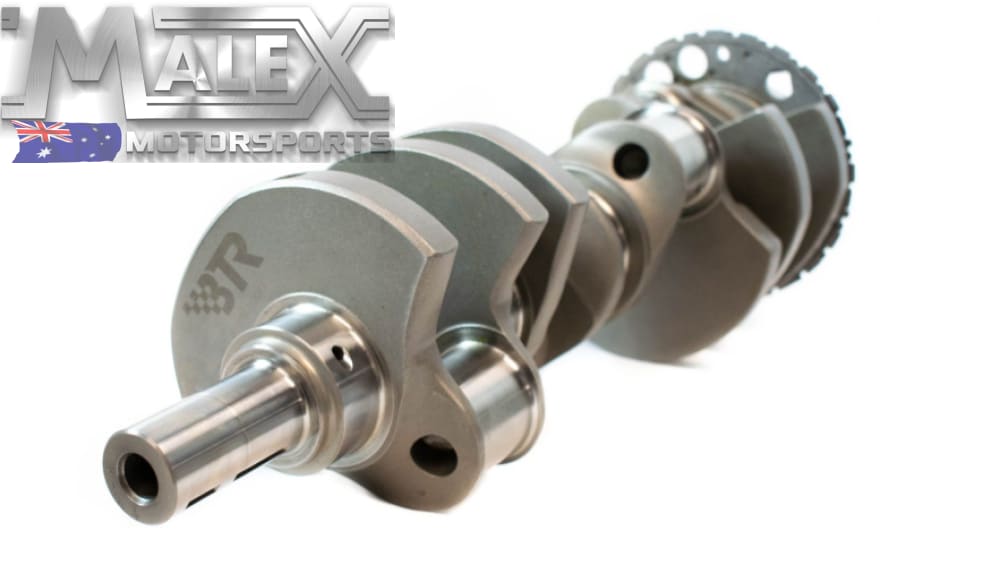

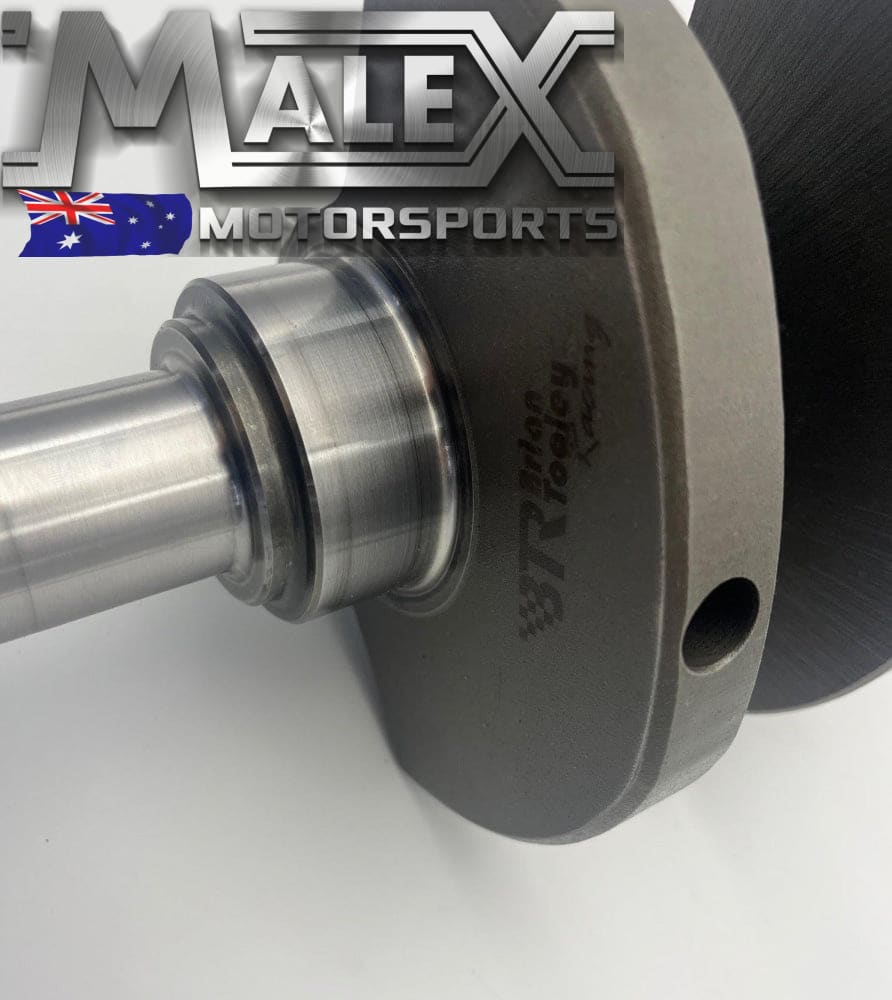

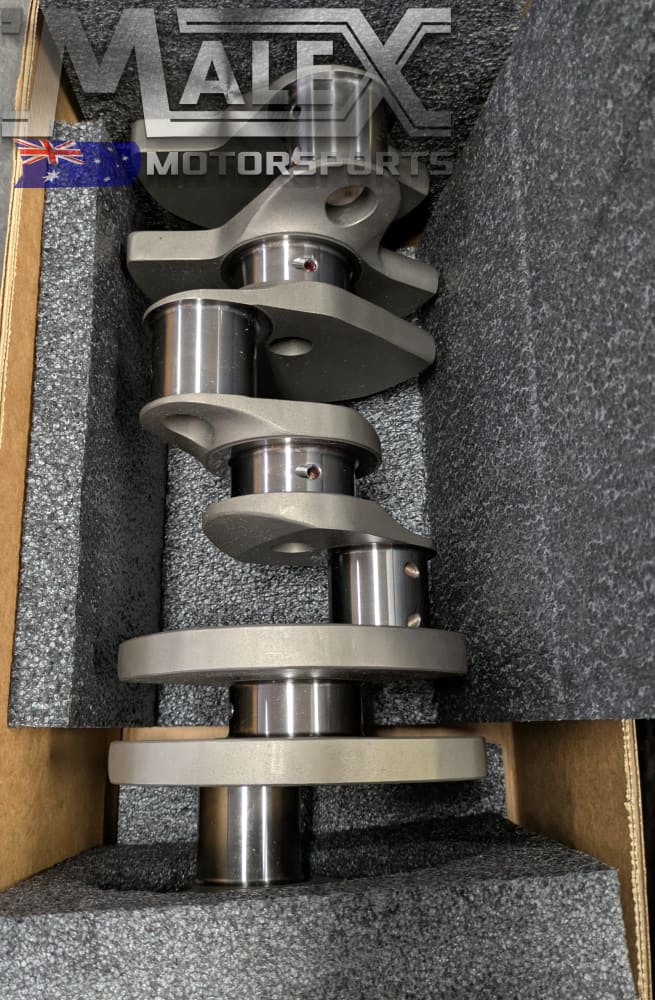

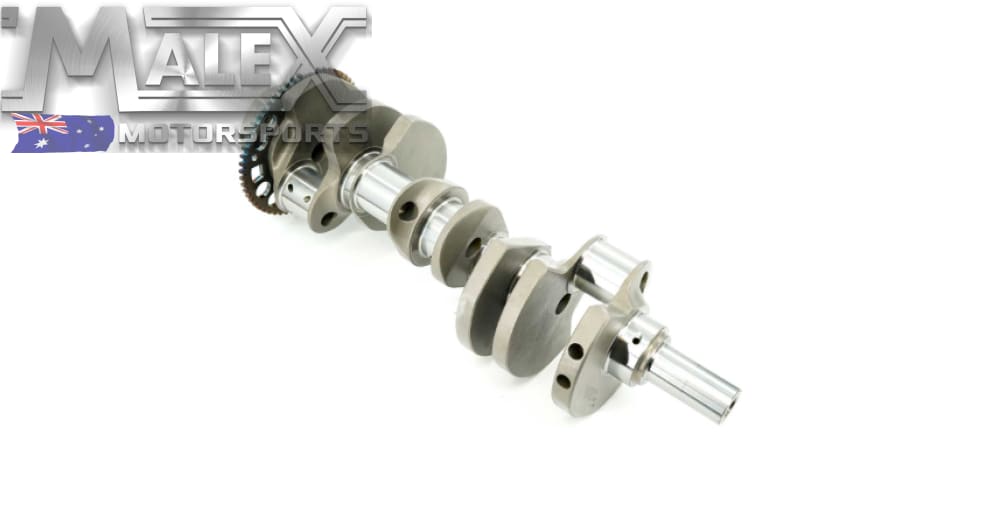

BTR FORGED CRANKSHAFT FOR LS ENGINES

BTR's Premium, 4340 Forged Crankshaft

Cranks come without Reluctor Wheel

3.622 inch stroke.

Each crank is Core-Hardened using Nitride for improved strength, bearing life and size tolerances held to +/-.0002"

- 2.100 rod journal diameter

- .125" radius on both the connecting rod journals and main journals for increased strength

- Chamfered oil holes for improved oiling   - Leading edge chamfer and radius on counterweights
NOTE: BTR crankshafts require a OEM style, one piece crank gear.
